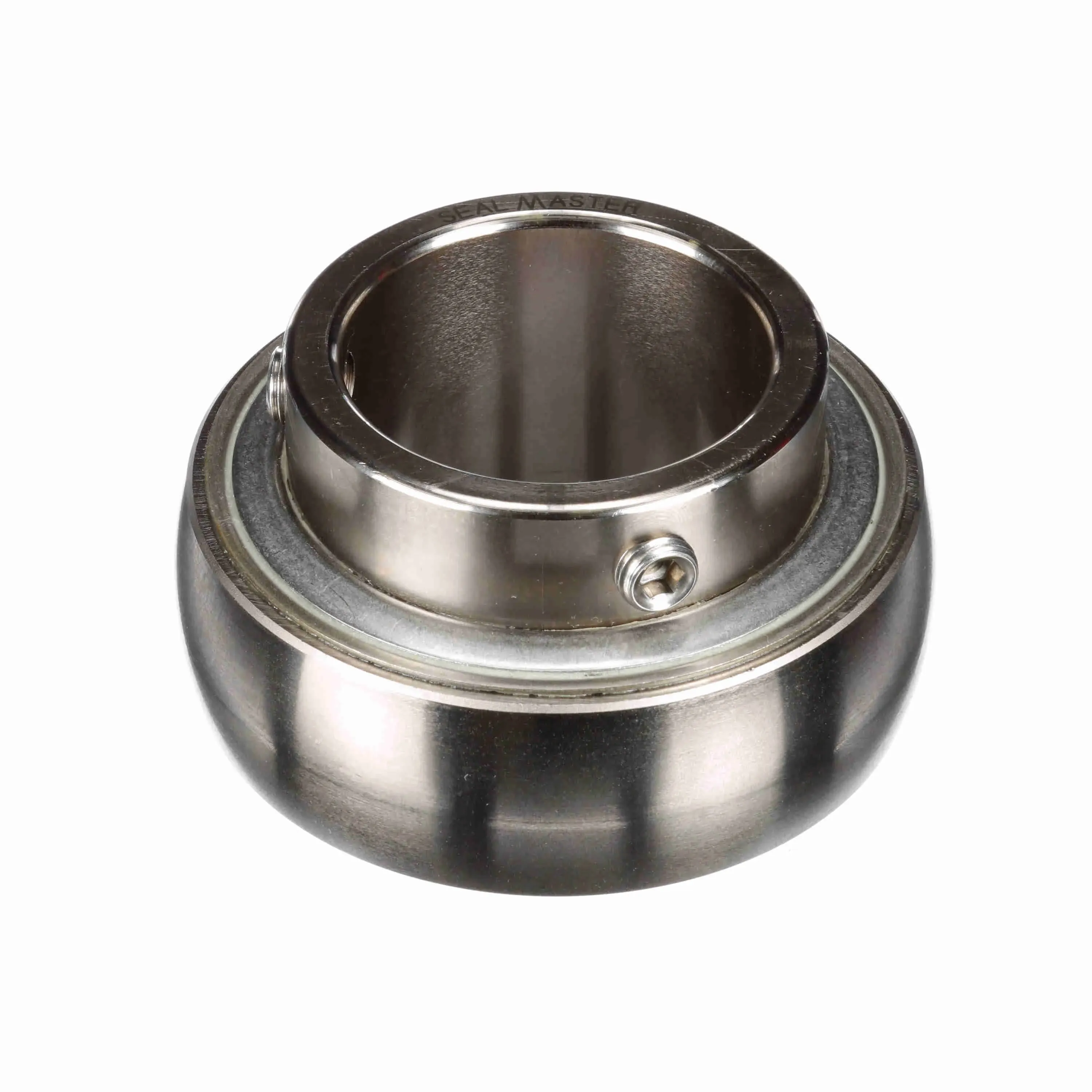

SEALMASTER PN-39 711803 Ball Insert Bearing, Cylindrical Bore, 2-7/16 Inch Inside Dia.
Item: BD6WBW
Model: PN-39
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£587.26/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Insert Finish | Phosphorus Nickel Coated |
|---|---|
| Bore Dia. | 2 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 1.563" |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 11789 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | No |
| Housing Type | Insert Only |
| Htc | 8482.10.5056 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 2.563" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 2.984" |
| Insert Material | Steel |
| Insert Material Finish | Phosphorus Nickel Coated |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Ip Rating | IP69K |
| Locking Type | Set Screw |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
|---|---|
| Max. Operating Temperature | 220°F |
| Max. Speed | 1250 RPM |
| Measure Units | Inch |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Race Od | 4.331" |
| Outer Race Profile | Spherical |
| Outer Race Width | 1 1/4" |
| Outer Ring Land Profile | Standard |
| Overall Width | 2.563" |
| Platform | PN Gold |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 8150 lbs. |
| Radius | 2/25" |
| Replaceable Insert | No |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Series | Pn Series |
| Set Screw Thread Size | 3/8"-24 |
| Type Of Seal | Triple Lip Contact Seal |
Product Details
Yes
Shipping Information
| height | 6.68 |
|---|---|
| length | 12.06 |
| width | 12.22 |
| country of origin | MX |
|---|---|
| weight | 1.665000 |
Related Products
| Style | Model | Bore Dia. | Locking Type | Dynamic Radial Load Capacity | Max. Speed | Overall Width | Cage Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | PN-205T | - | - | - | - | - | - | 163.40 | |
| B | PN-35 | 2 3/16" | Set Screw | 9752 lbs. | 1350 RPM | 2.188" | Polyphenylene Sulfide | 485.42 | |
| C | PN-10 | - | - | - | - | - | - | 772.32 | |
| D | PN-210 | 50 mm | Set Screw | 7889 lbs. | 1600 RPM | - | Polyphenylene Sulfide | 335.46 | |
| E | PN-207T | 35 mm | Concentric | 5782 lbs. | 2000 RPM | - | Polyphenylene Sulfide | 236.32 | |
| F | PN-23T | 1 7/16" | Concentric | 5782 lbs. | 2000 RPM | 1 3/4" | Polyphenylene Sulfide | 236.32 | |
| G | PN-32T | - | - | - | - | - | - | 855.71 |
