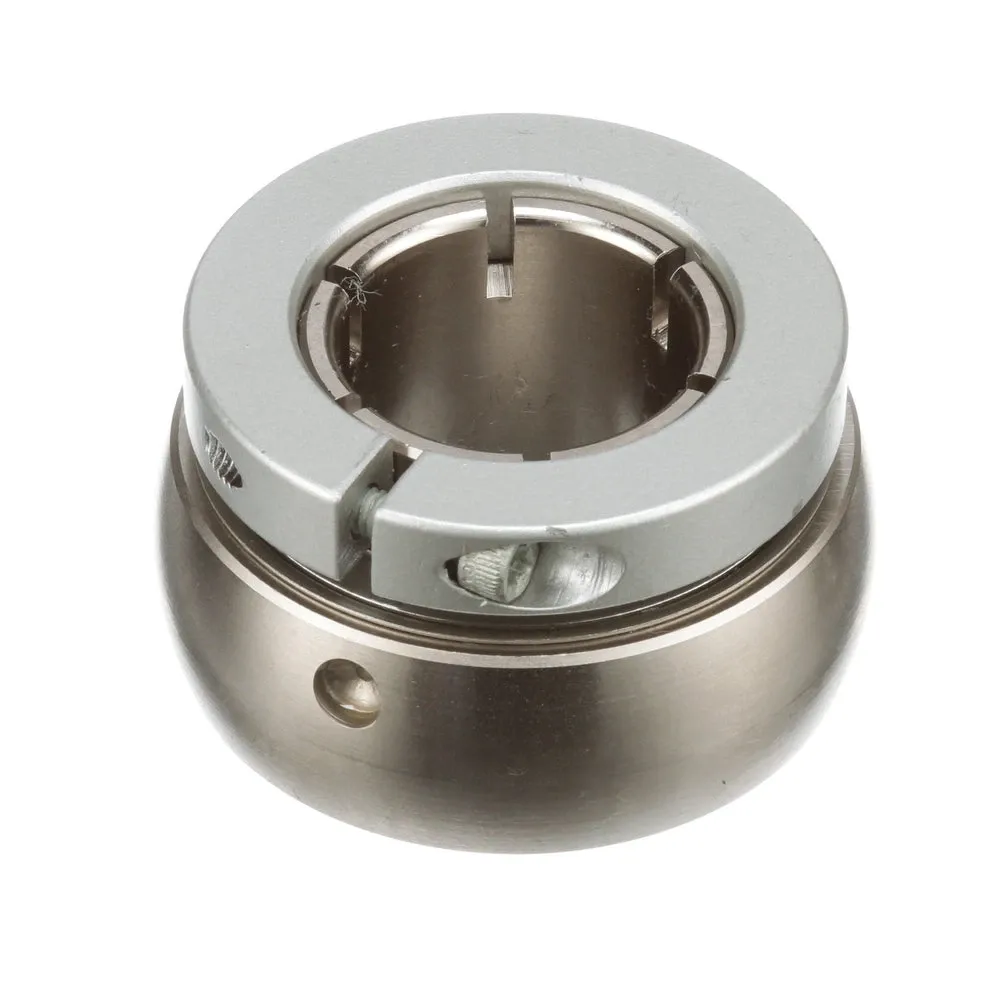

SEALMASTER PN-205T Ball Insert Bearing, Cylindrical Bore, 25 mm Inside Dia., Standard Duty
Item: BD6WBV
Model: PN-205T
In Stock
Get it by Friday, Apr 17
£166.67/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Angle Of Misalignment | +/-2° |
|---|---|
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Phosphorus Nickel |
| Bearing Material | Phosphorus Nickel Coated Bearing Steel |
| Bearing Type | Ball Bearing |
| Bore Shape | Straight |
| Bore Type | Round Bore |
| Cage Material | Brass |
| Dynamic Radial Load Capacity | 2801 lbs. |
| Enclosure | Double Sealed |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Sealmaster Bearings, PN Series |
| Fillet Radius | 1.02" |
| Housing Type | Insert Only |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 36.5 mm |
| Insert Material | 52100 Bearing Steel, Phosphorus Nickel Coated |
| Locking Device | Skwezloc Collar |
|---|---|
| Locking Type | Concentric |
| Lubricant | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temp. | 220°F |
| Misalignment Angle | -2° to +2° |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +220°F |
| Outer Race Width | 0.688" |
| Outer Ring Width | 17.4625 mm |
| Radius | 1.02 |
| Relubricatable | Yes |
| Retainer Type | Land Riding |
| Seal Type | Triple Lip Contact |
| Series | PN-T Series |
| Static Load Capacity | 1651 lbf. |
| Static Radial Load Capacity | 1651 lbs. |
| Torx Cap Screw | 8"-32 x 5/8" |
Shipping Information
| Width | 3.65 |
|---|
| Weight | 0.270000 |
|---|
Related Products
| Style | Model | Bore Dia. | Locking Type | Dynamic Radial Load Capacity | Max. Speed | Overall Width | Cage Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | PN-39 | 2 7/16" | Set Screw | 11789 lbs. | 1250 RPM | 2.563" | Polyphenylene Sulfide | 499.17 | |
| B | PN-35 | 2 3/16" | Set Screw | 9752 lbs. | 1350 RPM | 2.188" | Polyphenylene Sulfide | 412.61 | |
| C | PN-10 | - | - | - | - | - | - | 656.47 | |
| A | PN-210 | 50 mm | Set Screw | 7889 lbs. | 1600 RPM | - | Polyphenylene Sulfide | 285.14 | |
| D | PN-207T | 35 mm | Concentric | 5782 lbs. | 2000 RPM | - | Polyphenylene Sulfide | 200.87 | |
| E | PN-23T | 1 7/16" | Concentric | 5782 lbs. | 2000 RPM | 1 3/4" | Polyphenylene Sulfide | 200.87 | |
| F | PN-32T | - | - | - | - | - | - | 727.35 |
