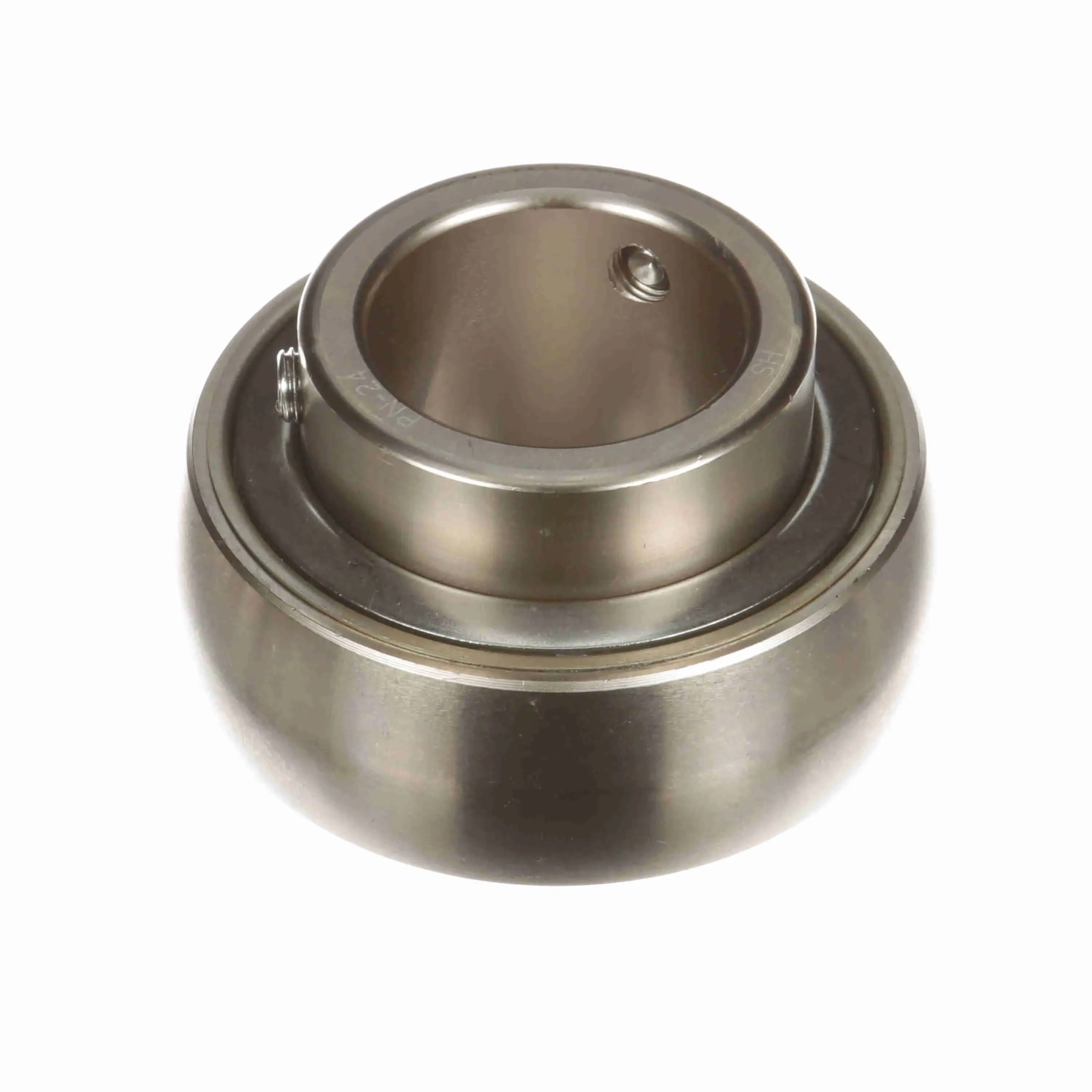

| Ability To Relubricate | Yes |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bore Dia. | 1 1/2" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 1.188" |
| Duty/series | Standard |
| Dynamic Radial Load Capacity | 7340 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | No |
| Housing Type | Insert Only |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 1.938" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 2.063" |
| Insert Material | Steel |
| Insert Material Finish | Phosphorus Nickel Coated |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Ip Rating | IP69K |
| Locking Type | Set Screw |
| Lubrication Type | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 1750 RPM |
| Measure Units | Inch |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Race Od | 3.15" |
| Outer Race Profile | Spherical |
| Outer Race Width | 1.094" |
| Outer Ring Land Profile | Standard |
| Overall Width | 1.938" |
| Platform | PN Gold |
| Precision Rating | ABEC 1 |
| Radial Static Load Capacity | 4467 lbs. |
| Radius | 0.062" |
| Replaceable Insert | No |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Series | PN |
| Set Screw Thread Size | 5/16"-24 |
| Type Of Seal | Triple Lip Contact Seal |
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 9.22 |
| Ship width (cm) | 9.22 |
| Country of Origin | MX |
