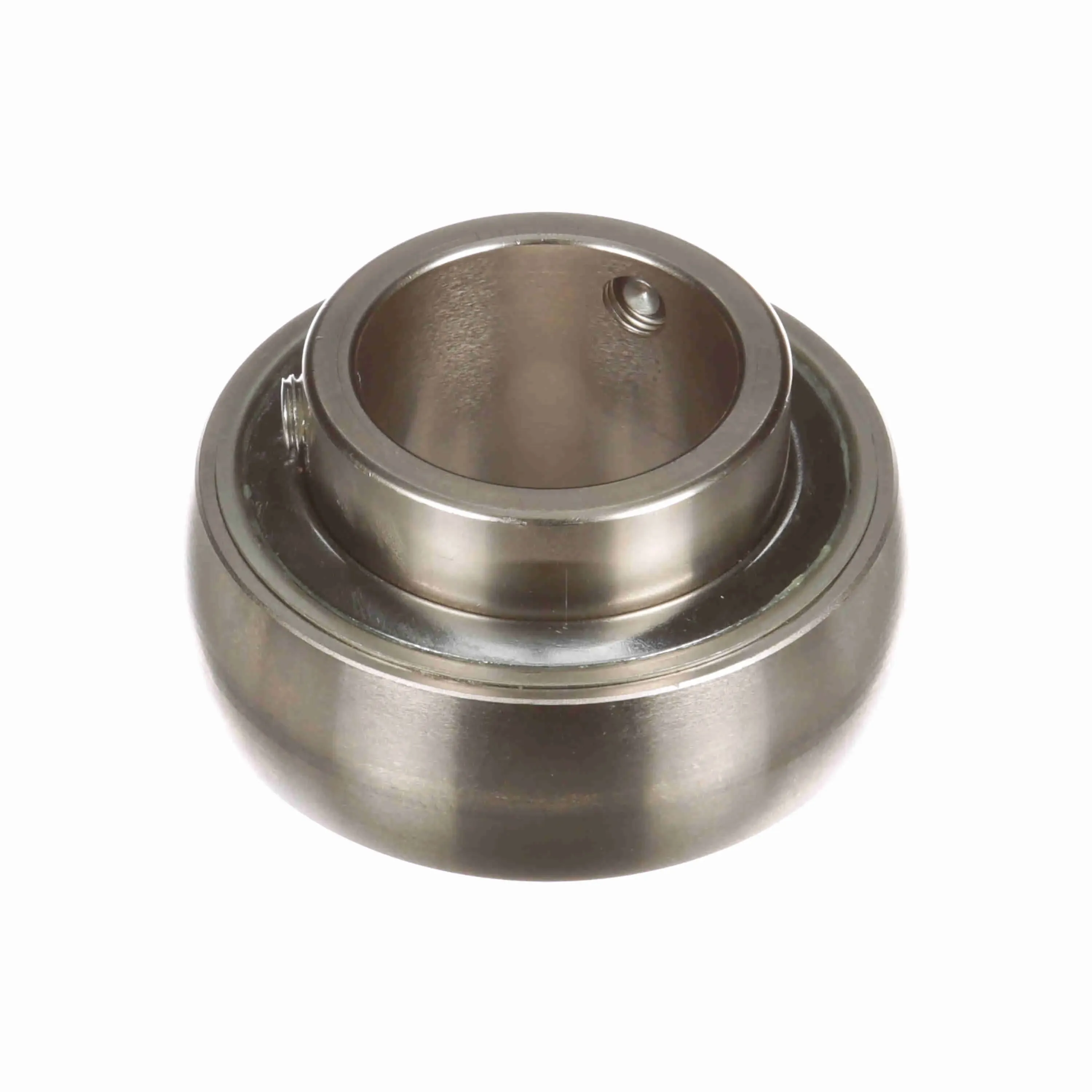

SEALMASTER PN-23 711793 Ball Insert Bearing, Cylindrical Bore, 1-7/16 Inch Inside Dia.
Item: BE4EAD
Model: PN-23
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£209.12/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Insert Finish | Phosphorus Nickel Coated |
|---|---|
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 1" |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 5782 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | No |
| Housing Type | Insert Only |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 1.688" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 1.859" |
| Insert Material | Steel |
| Insert Material Finish | Phosphorus Nickel Coated |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Ip Rating | IP69K |
| Locking Type | Set Screw |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
|---|---|
| Max. Operating Temperature | 220°F |
| Max. Speed | 2000 RPM |
| Measure Units | Inch |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Race Od | 2.835" |
| Outer Race Profile | Spherical |
| Outer Race Width | 0.938" |
| Outer Ring Land Profile | Standard |
| Overall Width | 1.688" |
| Platform | PN Gold |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 3493 lbs. |
| Radius | 1/25" |
| Replaceable Insert | No |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Series | Pn Series |
| Set Screw Thread Size | 5/16"-24 |
| Type Of Seal | Triple Lip Contact Seal |
Product Details
Yes
Shipping Information
| height | 4.44 |
|---|---|
| length | 7.95 |
| width | 7.95 |
| country of origin | MX |
|---|---|
| weight | 0.675000 |
