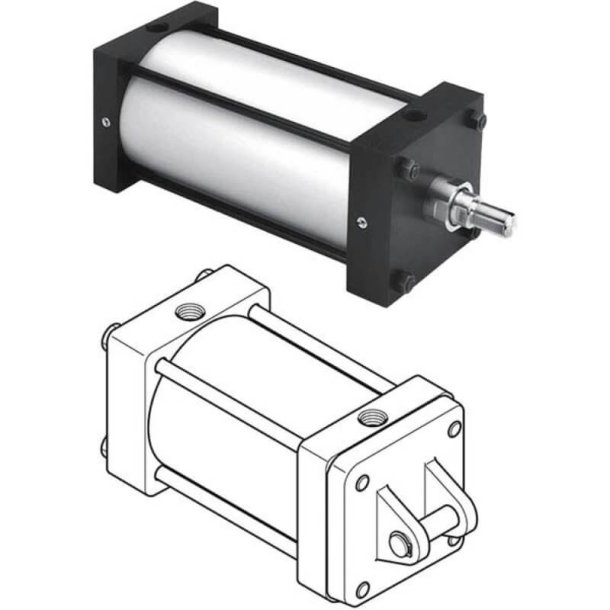

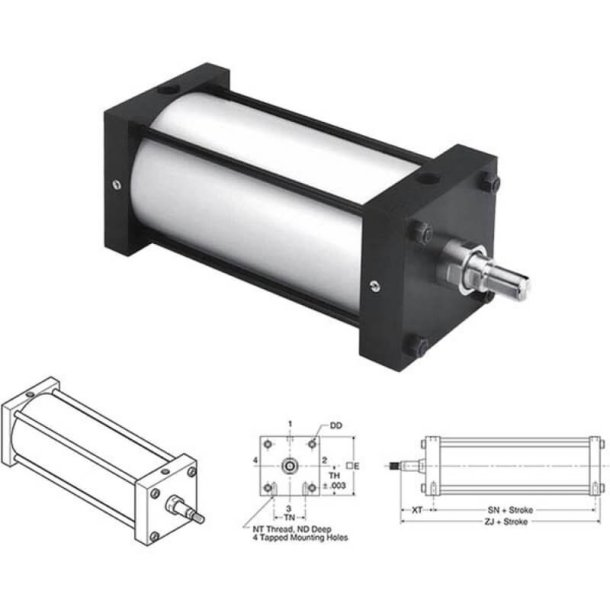

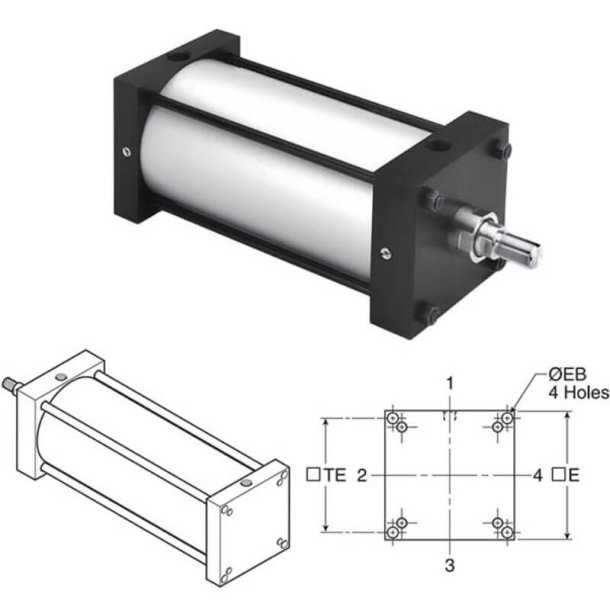

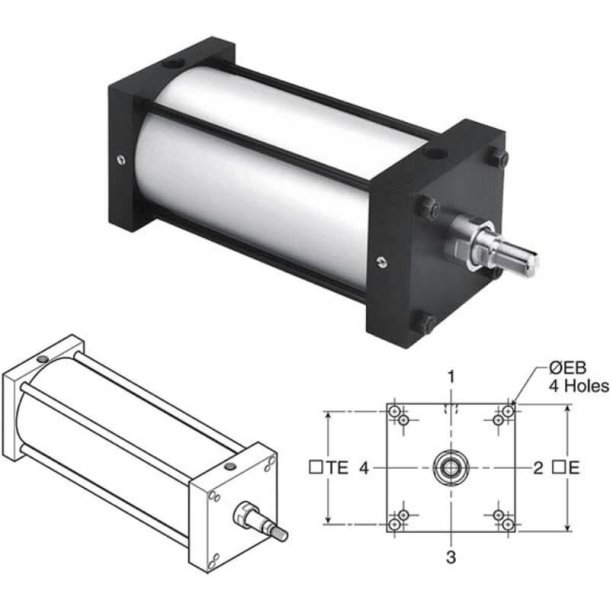

PARKER 8.00JB4MAU38A22.00 Pneumatic Cylinder

Item: EB8JPK
Model: 8.00JB4MAU38A22.00
In Stock

Get it by Wednesday, Apr 15

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

We deliver to your doorstep under DAP terms. Customs clearance is for your account

Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +165°F
Ambient Air Temp. For Operation -10°F to +165°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 8"
Chemical Resistance Corrosion resistance
Connection Type 2 x 3/4" NPT Threaded Pneumatic Ports 1-1/2"-12 UNF Male Intermediate Threaded Rod End
Connection Type 2 x 3/4" NPT Threaded Pneumatic Ports 1 1/2"-12 UNF Male Intermediate Threaded Rod-End
Design LipSeal Piston Intermediate Male Rod End Thread NFPA Interchangeable Model Repairable
Dia. 1 3/4"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting Head Square Mounting (NFPA ME3)
Mounting Mode Head Square Mounting NFPA ME3
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Rod Dia. 1 3/4"
Shape Rectangular
Standard Logo rohs.png
Stroke Length 22"

Product Details

Cylinder

Shipping Information

height 2.54
length 2.54
width 2.54
weight 1.125000
