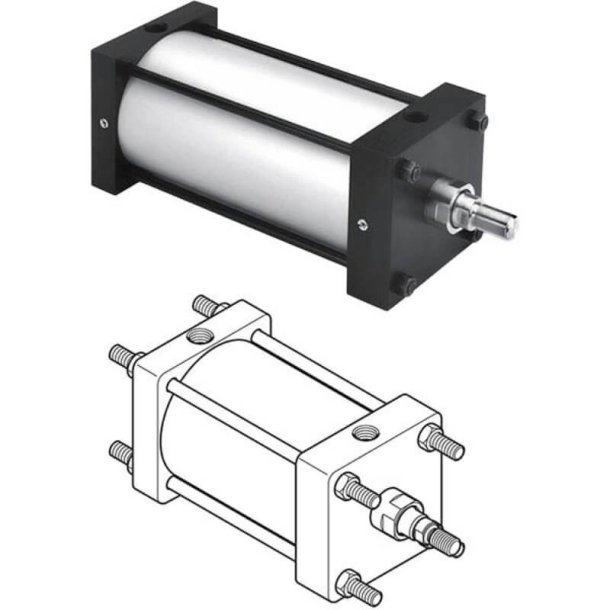

PARKER 8.00CTD4MAU34AC18.00 Pneumatic Cylinder

Item: EB7ZGM
Model: 8.00CTD4MAU34AC18.00
In Stock

Get it by Wednesday, Apr 15

£3155.57/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +165°F
Ambient Air Temp. For Operation -10°F to +165°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 8"
Chemical Resistance Corrosion resistance
Connection Type 2 x 3/4" NPT Threaded Pneumatic Ports 1 1/4"-12 UNF Male Small Threaded Rod-End
Connection Type 2 x 3/4" NPT Threaded Pneumatic Ports 1-1/4"-12 UNF Male Small Threaded Rod-End
Design "LipSeal" Piston Small Male Rod-End Thread Cushion At Both Ends NFPA Interchangeable Model Repairable
Dia. 1 3/4"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting Tie-Rods Extended Both Ends Mounting (NFPA MX1)
Mounting Mode Tie-Rods Extended Both Ends Mounting (NFPA MX1)
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Rod Dia. 1 3/4"
Shape Rectangular
Standard Logo rohs.png
Stroke Length 18"

Product Details

Cylinder

Shipping Information

height 2.54
length 2.54
width 2.54
weight 1.125000
