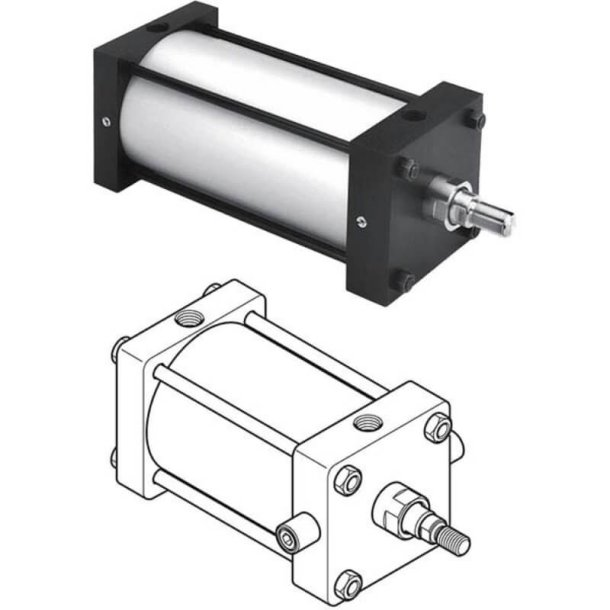

PARKER 8.00CF4MAU19AC10.00 Pneumatic Cylinder

Item: EA9KKB
Model: 8.00CF4MAU19AC10.00
In Stock

Get it by Wednesday, Apr 15

We deliver to your doorstep under DAP terms. Customs clearance is for your account

£2369.64/unit
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +165°F
Ambient Air Temp. For Operation -10°F to +165°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 8"
Chemical Resistance Corrosion resistance
Connection Type 2 x 3/4" NPT Threaded Pneumatic Ports 1"-14 UNF Female Short Threaded Rod-End
Design "LipSeal" Piston Short Female Rod-End Thread Cushion At Both Ends NFPA Interchangeable Model Repairable
dia. 1 3/8"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting Side Tap Mounting (NFPA MS4)
Mounting Mode Side Tap Mounting (NFPA MS4)
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Shape Rectangular
Standard Logo rohs.png
Stroke Length 10"

Product Details

Cylinder

Shipping Information

height 2.54
length 2.54
width 2.54
weight 1.125000
