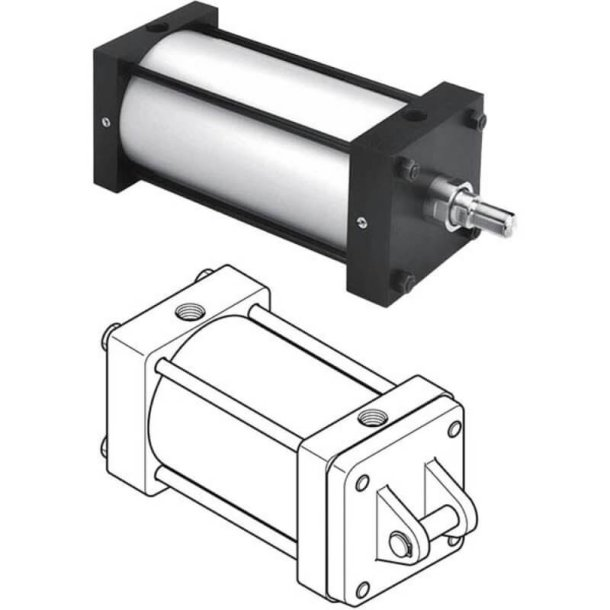

PARKER 8.00CBC4MAT38A12.00 Pneumatic Cylinder

Item: EB4LGX
Model: 8.00CBC4MAT38A12.00
In Stock

Get it by Wednesday, Apr 15

£2648.95/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +165°F
Ambient Air Temp. For Operation -10°F to +165°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 8"
Chemical Resistance Corrosion resistance
Connection Type 2 x SAE-12 Threaded Pneumatic Ports 1 1/2"-12 UNF Male Intermediate Threaded Rod-End
Connection Type 2 x SAE 12 Threaded Pneumatic Ports 1 1/2"-12 UNF Male Intermediate Threaded Rod End
Design "LipSeal" Piston Intermediate Male Rod-End Thread Cushion At Head End Only NFPA Interchangeable Model Repairable
Dia. 1 3/4"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting Cap Detachable Clevis Mounting (NFPA MP2)
Mounting Mode Cap Detachable Clevis Mounting NFPA MP2
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Rod Dia. 1 3/4"
Shape Rectangular
Standard Logo rohs.png
Stroke Length 12"

Product Details

Cylinder

Shipping Information

height 2.54
length 2.54
width 2.54
weight 1.125000
