PARKER

See our 858 reviews on trustpilot

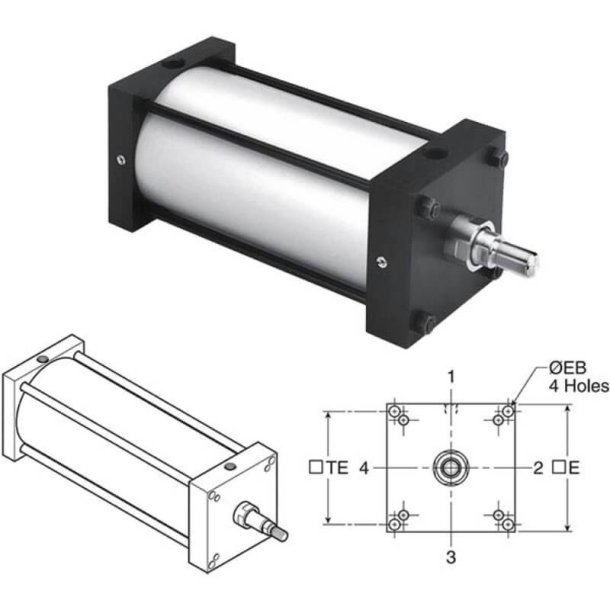

PARKER 8.00JB4MAU38A16.00 Pneumatic Cylinder

Item: EB7JCP
Model: 8.00JB4MAU38A16.00
In Stock

Get it by Friday, Apr 17

£2623.66/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +165°F
Ambient Air Temp. For Operation -10°F to +165°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 8"
Chemical Resistance Corrosion resistance
Connection Type 2 x 3/4" NPT Threaded Pneumatic Ports 1-1/2"-12 UNF Male Intermediate Threaded Rod End
Connection Type 2 x 3/4" NPT Threaded Pneumatic Ports 1 1/2"-12 UNF Male Intermediate Threaded Rod-End
Design LipSeal Piston Intermediate Male Rod End Thread NFPA Interchangeable Model Repairable
Dia. 1 3/4"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting Head Square Mounting (NFPA ME3)
Mounting Mode Head Square Mounting NFPA ME3
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Rod Dia. 1 3/4"
Shape Rectangular
Standard Logo rohs.png
Stroke Length 16"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Weight 1.125000
