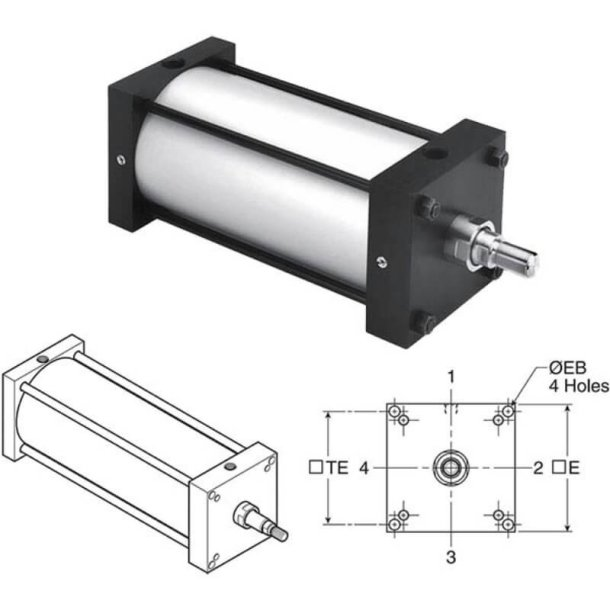

PARKER 8.00CJB4MA3UE14AC12.00 Pneumatic Cylinder

Item: EA9ZHX
Model: 8.00CJB4MA3UE14AC12.00
In Stock

Get it by Thursday, Apr 16

£2255.89/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Application Type General Industry Conveyors Assembly Packaging
Bore Size 8"
Chemical Resistance Corrosion resistance
Connection Type 2 x 3/4" NPT Threaded Pneumatic Ports 1"-14 UNF Male Small Threaded Rod-End
Design Piston Magnet "Lipseal" Piston Fluorocarbon Rod Wiper And Rod Seals Small Male Rod-End Thread Cushion At Both Ends Nfpa Interchangeable Model Repairable
Design Piston Magnet LipSeal Piston Fluorocarbon Rod Wiper, Rod Seals Small Male Rod End Thread Cushion At Both Ends NFPA Interchangeable Model Repairable
dia. 1 3/8"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Hard Anodized Aluminium Cylinder Body Fluoro Carbon Rod Wiper And Seals Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome Plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting Head Square Mounting (NFPA ME3)
Mounting Mode Head Square Mounting NFPA ME3
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Shape Rectangular
Standard Logo rohs.png
Stroke Length 12"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Weight 1.125000
