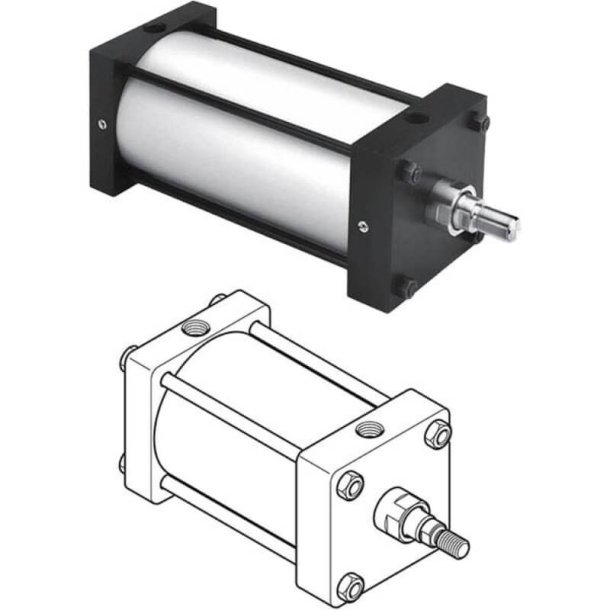

PARKER 8.00CT4MA3U14KAC08.00 Pneumatic Cylinder

Item: EB9VUH
Model: 8.00CT4MA3U14KAC08.00
In Stock

Get it by Thursday, Apr 16

£2536.09/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +165°F
Ambient Air Temp. For Operation -10°F to +165°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 8"
Chemical Resistance Corrosion resistance
Connection Type 2 x 3/4" NPT Threaded Pneumatic Ports 1"-14 UNF Male Small Threaded Rod-End
Design Piston Magnet "Lipseal" Piston Small Male Rod-End Thread Composite High-Load Rod Bearing Cushion At Both Ends Nfpa Interchangeable Model Repairable
Design Piston Magnet "LipSeal" Piston Small Male Rod-End Thread Composite High-Load Rod Brg. Cushion At Both Ends NFPA Interchangeable Model Repairable
dia. 1 3/8"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Hard Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Composite Bearing Pressed Into Bronze Alloy Gland 303 Stainless Steel Rod
Max. Air Service Pressure 250 psig
Mounting No Mount (NFPA MX0)
Mounting Mode No Mounting
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Shape Rectangular
Standard Logo rohs.png
Stroke Length 8"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Weight 1.125000
