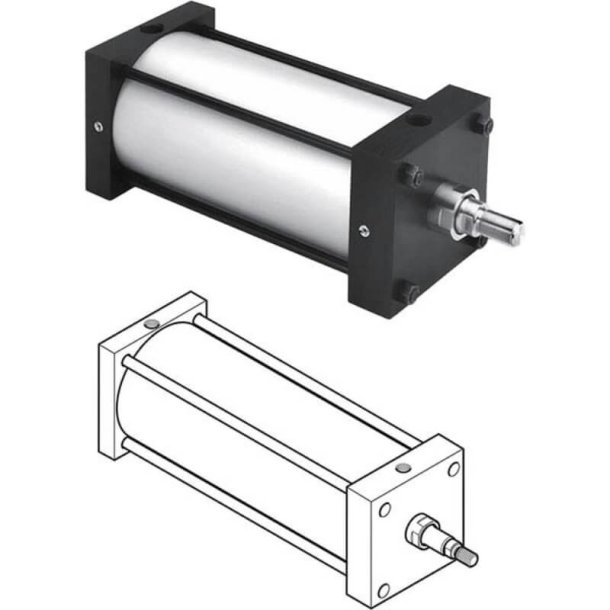

PARKER 8.00CTE4MAUV38AC18.00 Pneumatic Cylinder

Item: EB4NKT
Model: 8.00CTE4MAUV38AC18.00
In Stock

Get it by Wednesday, Apr 15

£3495.04/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +250°F
Ambient Air Temp. For Operation -10°F to +250°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 8"
Chemical Resistance Corrosion resistance
Connection Type 2 x 3/4" NPT Threaded Pneumatic Ports 1 1/2"-12 UNF Male Intermediate Threaded Rod-End
Connection Type 2 x 3/4" NPT Threaded Pneumatic Ports 1-1/2"-12 UNF Male Intermediate Threaded Rod End
Design "LipSeal" Piston Fluorocarbon Seals Intermediate Male Rod-End Thread Cushion At Both Ends NFPA Interchangeable Model Repairable
Dia. 1 3/4"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Hard-Anodized Aluminium Cylinder Body Fluoro Carbon Seals Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting Sleeve Nut Mounting (NFPA MX5)
Mounting Mode Sleeve Nut Mounting (NFPA MX5)
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Rod Dia. 1 3/4"
Shape Rectangular
Standard Logo rohs.png
Stroke Length 18"

Product Details

Cylinder

Shipping Information

height 2.54
length 2.54
width 2.54
weight 1.125000
