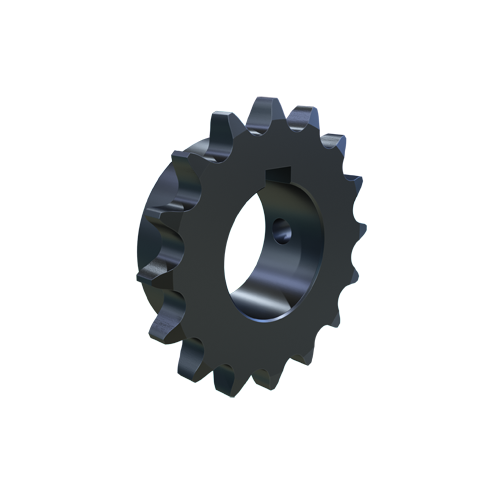

MARTIN SPROCKET 60BS16HT 1 15/16 Roller Chain Sprocket, 1.938 Inch Bore, 4.221 Inch Outside Dia. Steel, Hardened

Item: AJ9MHU
Model: 60BS16HT 1 15/16
16 In Stock

Ships within 2 days via

Bore Size
Outside Dia.
£119.82/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Bore Diameter 1 15/16"
Bore Size 1 15/16"
Bore Type Finished Bore
Chain Number 60
Chain Pitch 3/4"
Chain Size #60
Construction Solid
Construction Type Solid
Finished Bore Size 1 15/16"
For Chain Number 60
For Chain Pitch 3/4"
Hardened Teeth 1
Hub Configuration B
Hub Diameter 3.063"
Hub Outside Dia. 3 1/16"
Individually Packaged Yes
Keyway Size 1/2" x 1/4"
Length Through Bore 1 1/4"
Length Thru Bore 1 1/4"
Material Steel
No. Of Teeth 16
Number Of Chain Rows 1
Number Of Teeth 16
Outside Dia. 4.221"
Pitch 3/4"
Pitch Dia. 3.844"
Screw Size 1/2"-13 x 1/2"
Set Screw Size 1/2"-13
Set Screw Thread Type Coarse
Single Strand Tooth Thickness 0.459"
Storage Dimension Height 1.31"
Storage Dimension Length 4 5/16"
Storage Dimension Width 4 5/16"
Type Bored to Size Type BS

Product Details

Shipping Information

Height 3.18
Length 10.72
Width 10.72
Country Of Origin US
Weight 0.850500
