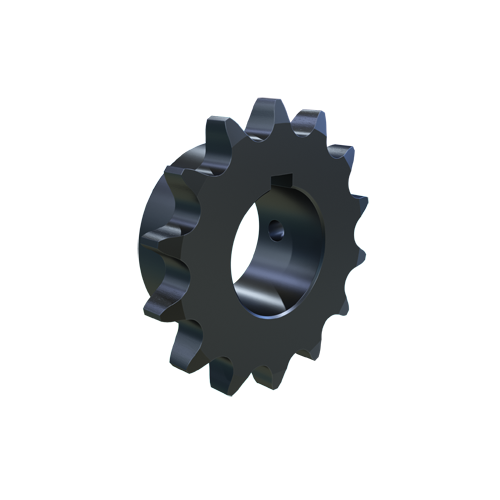

MARTIN SPROCKET 60BS14HT 1 5/8 Roller Chain Sprocket, 1.625 Inch Bore, 3.736 Inch Outside Dia. Steel, Hardened

Item: AJ9MHL
Model: 60BS14HT 1 5/8
13 In Stock

Ships within 2 days via

Bore Size
Outside Dia.
£103.58/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Bore Diameter 1 5/8"
Bore Type Finished Bore
Chain Number 60
Chain Pitch 3/4"
Chain Size #60
Construction Solid
Construction Type Solid
Finished Bore Size 1 5/8"
For Chain Number 60
For Chain Pitch 3/4"
Hardened Teeth 1
Hub Configuration B
Hub Diameter 2 9/16"
Hub Outside Dia. 2 9/16"
Individually Packaged Yes
Keyway Size 3/8" x 3/16"
Length Through Bore 1 1/4"
Length Thru Bore 1 1/4"
Material Steel
Max. Bore Size 1 3/4"
Min. Bore Size 1 5/8"
No. Of Teeth 14
Number Of Chain Rows 1
Number Of Teeth 14
Outside Dia. 3.736"
Pitch 3/4"
Pitch Dia. 3.3705"
Screw Size 3/8"-16 x 3/8"
Set Screw Location (1) Over Keyway And (1) At 90°
Set Screw Size 3/8"-16
Set Screw Thread Type Coarse
Single Strand Tooth Thickness 0.459"
Storage Dimension Height 1.31"
Storage Dimension Length 4 5/16"
Storage Dimension Width 4 5/16"
Type Bored to Size Type BS

Product Details

Shipping Information

height 3.33
length 9.5
width 9.5
country of origin US
weight 0.603000
