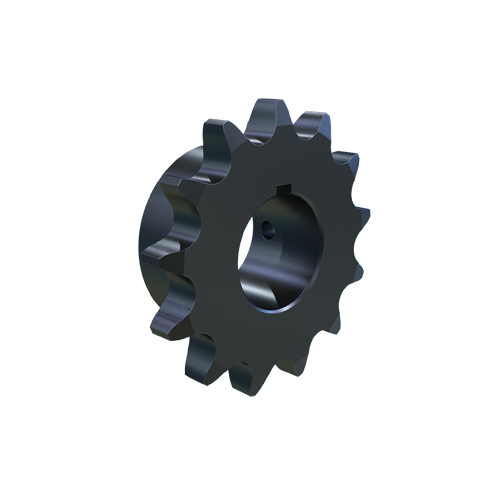

MARTIN SPROCKET 60BS13HT 1 3/8 Roller Chain Sprocket, 1.375 Inch Bore, 3.493 Inch Outside Dia. Steel, Hardened

Item: AJ9JBV
Model: 60BS13HT 1 3/8
13 In Stock

Ships within 2 days via

Bore Size
Outside Dia.
£110.52/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Bore Diameter 1 3/8"
Bore Size 1 3/8"
Bore Type Finished Bore
Chain Number 60
Chain Pitch 3/4"
Chain Size #60
Construction Solid
Construction Type Solid
Finished Bore Size 1 3/8"
For Chain Number 60
For Chain Pitch 3/4"
Hardened Teeth 1
Hub Configuration B
Hub Diameter 2.344"
Hub Outside Dia. 2.3438"
Individually Packaged Yes
Keyway Size 5/16" x 5/32"
Length Through Bore 1 1/4"
Length Thru Bore 1 1/4"
Material Steel
Max. Bore Size 1 1/2"
Min. Bore Size 1 3/8"
No. Of Teeth 13
Number Of Chain Rows 1
Number Of Teeth 13
Outside Dia. 3.493"
Pitch 3/4"
Pitch Dia. 3.1339"
Pitch Diameter 3.134"
Screw Size 0.313"-18 x 0.313"
Set Screw Location (1) Over Keyway And (1) At 90°
Set Screw Size 5/16"-18
Set Screw Thread Type Coarse
Single Strand Tooth Thickness 0.459"
Storage Dimension Height 1.31"
Storage Dimension Length 3 9/16"
Storage Dimension Width 3 9/16"
Type Bored to Size Type BS

Product Details

Roller Chain Sprocket

Shipping Information

height 3.18
length 8.86
width 8.86
country of origin US
weight 0.540000
