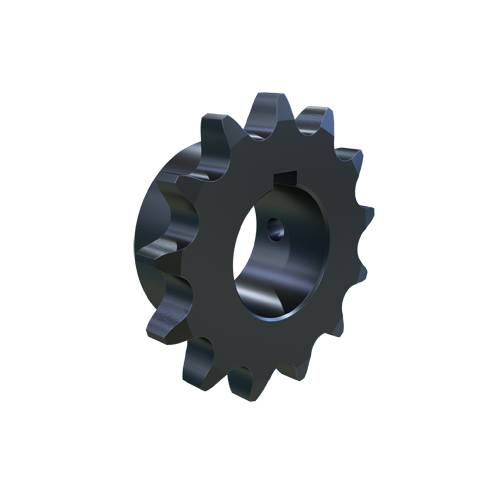

MARTIN SPROCKET 60BS13HT 1 1/2 Roller Chain Sprocket, 1.5 Inch Bore, 3.493 Inch Outside Dia. Steel, Hardened
Item: AJ9HME
Model: 60BS13HT 1 1/2
25 In Stock
Ships within 2 days via
£93.95/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 1/2" |
|---|---|
| Bore Size | 1 1/2" |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | #60 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 2.344" |
| Hub Outside Dia. | 2.3438" |
| Individually Packaged | Yes |
| Keyway Size | 3/8" x 3/16" |
| Length Through Bore | 1 1/4" |
| Length Thru Bore | 1 1/4" |
| Material | Steel |
|---|---|
| Max. Bore Size | 1 1/2" |
| Min. Bore Size | 1 1/2" |
| No. Of Teeth | 13 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 13 |
| Outside Dia. | 3.493" |
| Pitch | 3/4" |
| Pitch Dia. | 3.1339" |
| Pitch Diameter | 3.134" |
| Screw Size | 3/8"-16 x 3/8" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 3/8"-16 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1.31" |
| Storage Dimension Length | 3 9/16" |
| Storage Dimension Width | 3 9/16" |
| Type | Bored to Size Type BS |
Product Details
Roller Chain Sprocket
Shipping Information
| height | 3.18 |
|---|---|
| length | 8.86 |
| width | 8.86 |
| country of origin | US |
|---|---|
| weight | 0.472500 |
Related Products
| Style | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Number | For Chain Pitch | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 60BS9HT 3/4 | 9 | 2.1929" | 2.511" | 1.562" | 1/4"-20 | 3/4" | 60 | 3/4" | 59.78 | |
| B | 60BS9HT 1 | 9 | 2.1929" | 2.511" | 1.562" | 5/16"-18 | 1" | 60 | 3/4" | 59.78 | |
| C | 60BS10HT 3/4 | 10 | 2.4271" | 2.758" | 1 1/4" | 1/4"-20 | 3/4" | 60 | 3/4" | 63.41 | |
| D | 60BS10HT 7/8 | 10 | 2.4271" | 2.758" | 1 1/4" | 1/4"-20 | 7/8" | 60 | 3/4" | 63.41 | |
| E | 60BS10HT 1 | 10 | 2.4271" | 2.758" | 1 1/4" | 5/16"-18 | 1" | 60 | 3/4" | 63.41 | |
| F | 60BS11HT 1 | 11 | 2.662" | 3.004" | 1 1/4" | 5/16"-18 | 1" | 60 | 3/4" | 68.51 | |
| G | 60BS11HT 1 1/4 | 11 | 2.662" | 3.004" | 1 1/4" | 5/16"-18 | 1 1/4" | 60 | 3/4" | 68.51 |
