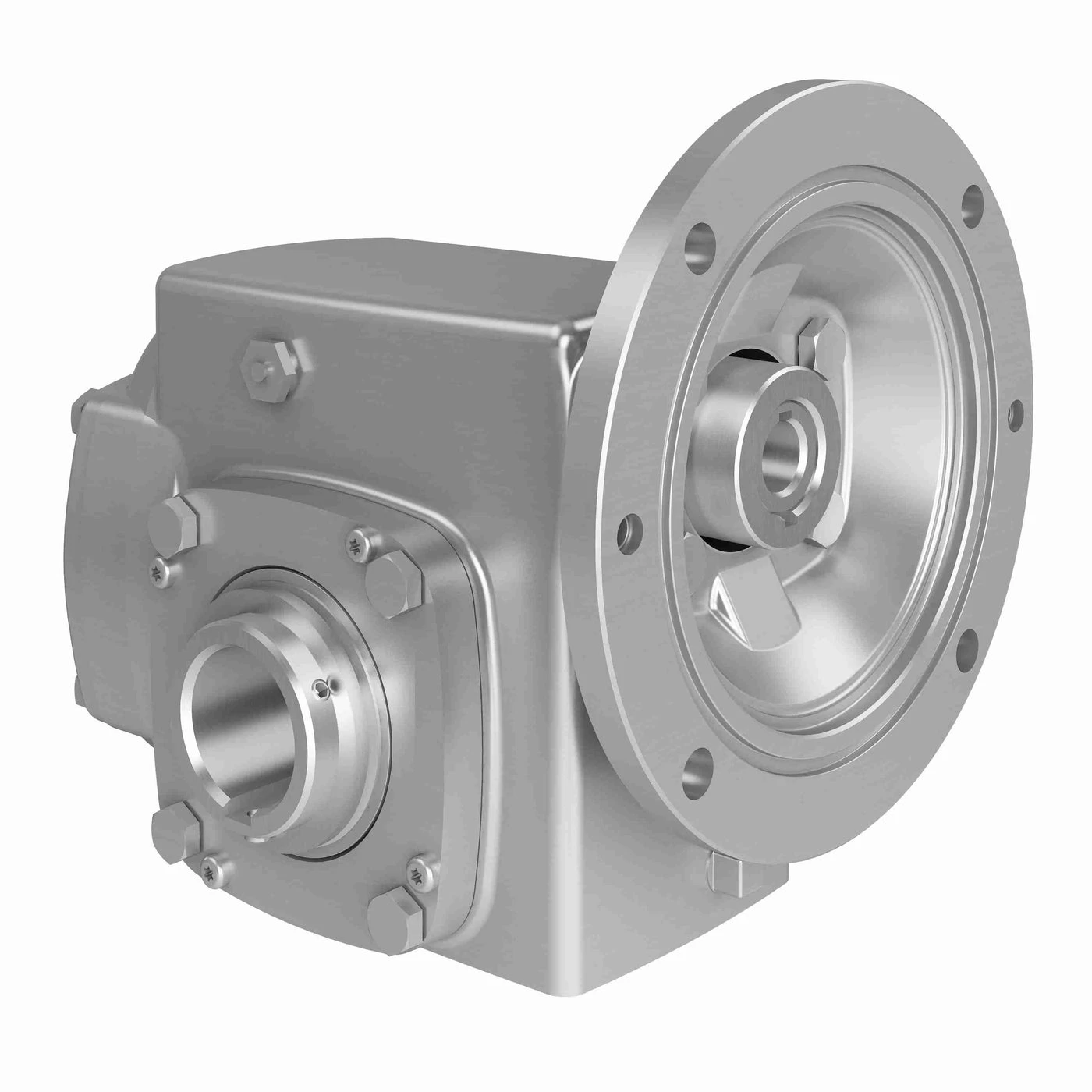

HUB CITY 0250-57240 Helical Hypoid Reducer, 1.34 HP, 0.626 Inch I.D, ES Mounting Type, Stainless Steel | AN7UDL

HUB CITY 0250-57240 Helical Hypoid Reducer, 1.34 HP, 0.626 Inch I.D, ES Mounting Type, Stainless Steel

Item: AN7UDL

Model: 0250-57240

In Stock

Torque Rating

Ratio

£3769.8/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications
Product Details
Shipping Information
See Variants

Specifications

Center Distance	3.263"
Gear Drive Size	SSHERA45
Housing Height	7.14"
Housing Length	8.02"
Housing Material	Stainless Steel
Housing Width	6 3/4"
Input Diameter	0.626"
Input Hp	1 17/50 hp
Input Style	C Face Quill
Length Through Bore	6 3/4"
Motor Frame Size	56C

Mounting Type	ES
Output	29.3 RPM
Output Diameter	1.438"
Output Shaft	Hollow Bore
Output Torque Range	2500 lbs.-in. to 5000 lbs.-in.
Output Torque Rating	2600 lbs.-in.
Ratio	59.79:1
Reduction	Double
Service Factor	1
Style	ES

Product Details

Related Products

A

B

C

D

E

F

G

Style	Model	max. input hp	center distance	input style	ratio	output rpm	frame size	motor frame size	output	Price (ex. VAT)	Cart
A	0250-56856	29/50 hp	2.509"	C Face Quill	58.33:1	30 RPM	56C	-	-	2,352.35
B	0250-56804	1 7/10 hp	2.509"	C Face Quill	19.93:1	87.8 RPM	56C	-	-	2,589.86
C	0250-56808	29/50 hp	2.509"	C Face Quill	58.33:1	30 RPM	56C	-	-	1,741.99
D	0250-56817	4.23 hp	2.509"	C Face Quill	8.02:1	218.2 RPM	56C	-	-	2,589.86
E	0250-56818	2.97 hp	2.509"	C Face Quill	11.42:1	153.2 RPM	56C	-	-	2,352.35
F	0250-56821	1.17 hp	2.509"	C Face Quill	29.1:1	60.1 RPM	56C	-	-	2,352.35
G	0250-56823	13/20 hp	2.509"	C Face Quill	52.5:1	33.3 RPM	56C	-	-	2,589.86
