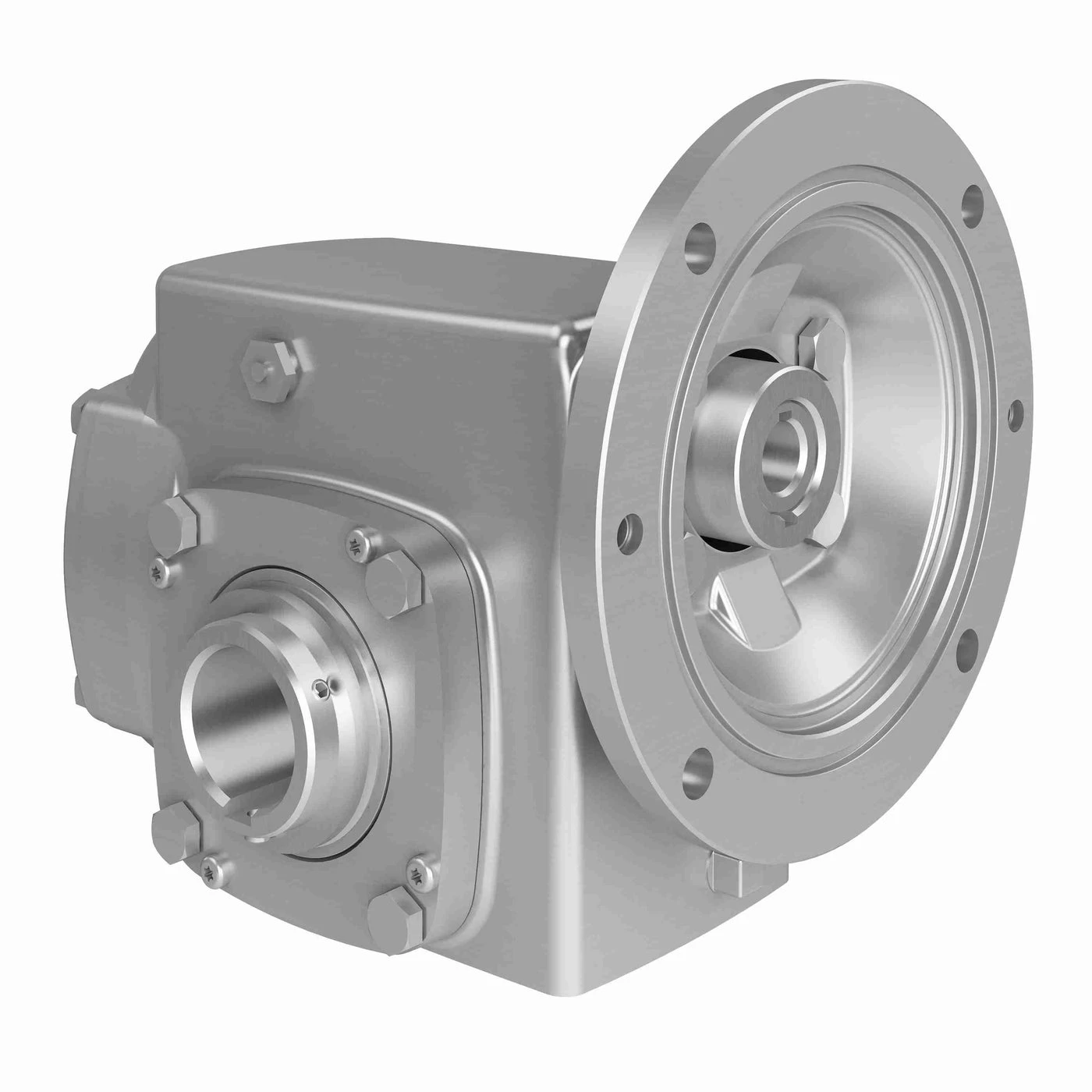

HUB CITY 0250-57245 Helical Hypoid Reducer, 2.86 HP, 0.626 Inch I.D, ES Mounting Type, Stainless Steel
Item: AN8ALW
Model: 0250-57245
In Stock
£4150.43/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 3.263" |
|---|---|
| Gear Drive Size | SSHERA45 |
| Housing Height | 7.14" |
| Housing Length | 8.02" |
| Housing Material | Stainless Steel |
| Housing Width | 6 3/4" |
| Input Diameter | 0.626" |
| Input Hp | 2 43/50 hp |
| Input Style | C Face Quill |
| Length Through Bore | 6 3/4" |
| Motor Frame Size | 56C |
| Mounting Type | ES |
|---|---|
| Output | 62.5 RPM |
| Output Diameter | 1 1/2" |
| Output Shaft | Hollow Bore |
| Output Torque Range | 2500 lbs.-in. to 5000 lbs.-in. |
| Output Torque Rating | 2600 lbs.-in. |
| Ratio | 28.01:1 |
| Reduction | Double |
| Service Factor | 1 |
| Style | ES |
Product Details
Related Products
| Style | Model | max. input hp | center distance | input style | ratio | output rpm | frame size | motor frame size | output | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0250-56856 | 29/50 hp | 2.509" | C Face Quill | 58.33:1 | 30 RPM | 56C | - | - | 2,352.35 | |
| B | 0250-57240 | - | 3.263" | C Face Quill | 59.79:1 | - | - | 56C | 29.3 RPM | 3,141.50 | |
| C | 0250-56804 | 1 7/10 hp | 2.509" | C Face Quill | 19.93:1 | 87.8 RPM | 56C | - | - | 2,589.86 | |
| D | 0250-56808 | 29/50 hp | 2.509" | C Face Quill | 58.33:1 | 30 RPM | 56C | - | - | 1,741.99 | |
| E | 0250-56817 | 4.23 hp | 2.509" | C Face Quill | 8.02:1 | 218.2 RPM | 56C | - | - | 2,589.86 | |
| F | 0250-56818 | 2.97 hp | 2.509" | C Face Quill | 11.42:1 | 153.2 RPM | 56C | - | - | 2,352.35 | |
| G | 0250-56821 | 1.17 hp | 2.509" | C Face Quill | 29.1:1 | 60.1 RPM | 56C | - | - | 2,352.35 |
