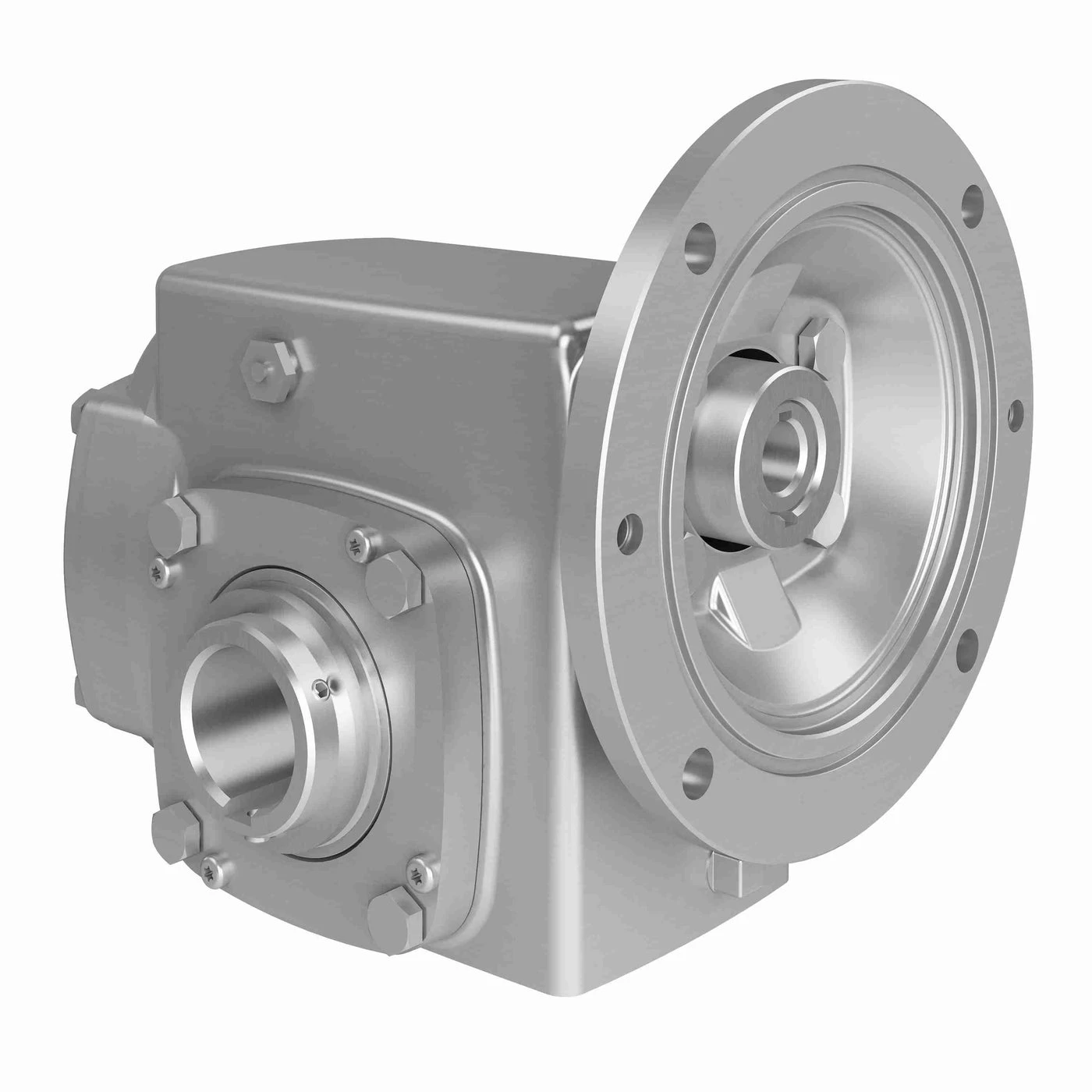

HUB CITY 0250-56823 Helical Hypoid Reducer, 0.65 HP, 0.626 Inch I.D, 1 Inch O.D, Stainless Steel | AN8AKJ

HUB CITY 0250-56823 Helical Hypoid Reducer, 0.65 HP, 0.626 Inch I.D, 1 Inch O.D, Stainless Steel

Item: AN8AKJ

Model: 0250-56823

In Stock

Get it by Thursday, Apr 16

£3107.83/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications
Product Details
Shipping Information
See Variants

Specifications

Center Distance	2.509"
Frame Size	56C
Gear Drive Size	SSHERA35
Housing Height	5.93"
Housing Length	7 1/5"
Housing Material	Stainless Steel
Housing Width	6"
Hp Range	1/2 hp to 1 hp
Input Dia.	0.626"
Input Hp	13/20 hp
Input Hp @ 1750 Rpm	13/20 hp
Input Style	C Face Quill
Length Through Bore	6"

Max. Input Hp	13/20 hp
No. Of Gear Reductions	2
Nominal Ratio	50:1
Output Dia.	1"
Output Rpm	33.3 RPM
Output Shaft	Hollow Bore
Output Torque Range	1000 lbs.-in. to 2500 lbs.-in.
Product Line	HERA
Product Type	Right Angle
Ratio	52.5:1
Service Factor	1
Style	ES
Torque Rating	1100 lbs.-in.

Product Details

Shipping Information

Height	27.94
Length	30.48

Width	25.4
Weight	15.750000

Related Products

A

B

C

D

E

F

G

Style	Model	max. input hp	center distance	input style	ratio	output rpm	frame size	motor frame size	output	Price (ex. VAT)	Cart
A	0250-56856	29/50 hp	2.509"	C Face Quill	58.33:1	30 RPM	56C	-	-	2,352.35
B	0250-57240	-	3.263"	C Face Quill	59.79:1	-	-	56C	29.3 RPM	3,141.50
C	0250-56804	1 7/10 hp	2.509"	C Face Quill	19.93:1	87.8 RPM	56C	-	-	2,589.86
D	0250-56808	29/50 hp	2.509"	C Face Quill	58.33:1	30 RPM	56C	-	-	1,741.99
E	0250-56817	4.23 hp	2.509"	C Face Quill	8.02:1	218.2 RPM	56C	-	-	2,589.86
F	0250-56818	2.97 hp	2.509"	C Face Quill	11.42:1	153.2 RPM	56C	-	-	2,352.35
G	0250-56821	1.17 hp	2.509"	C Face Quill	29.1:1	60.1 RPM	56C	-	-	2,352.35
