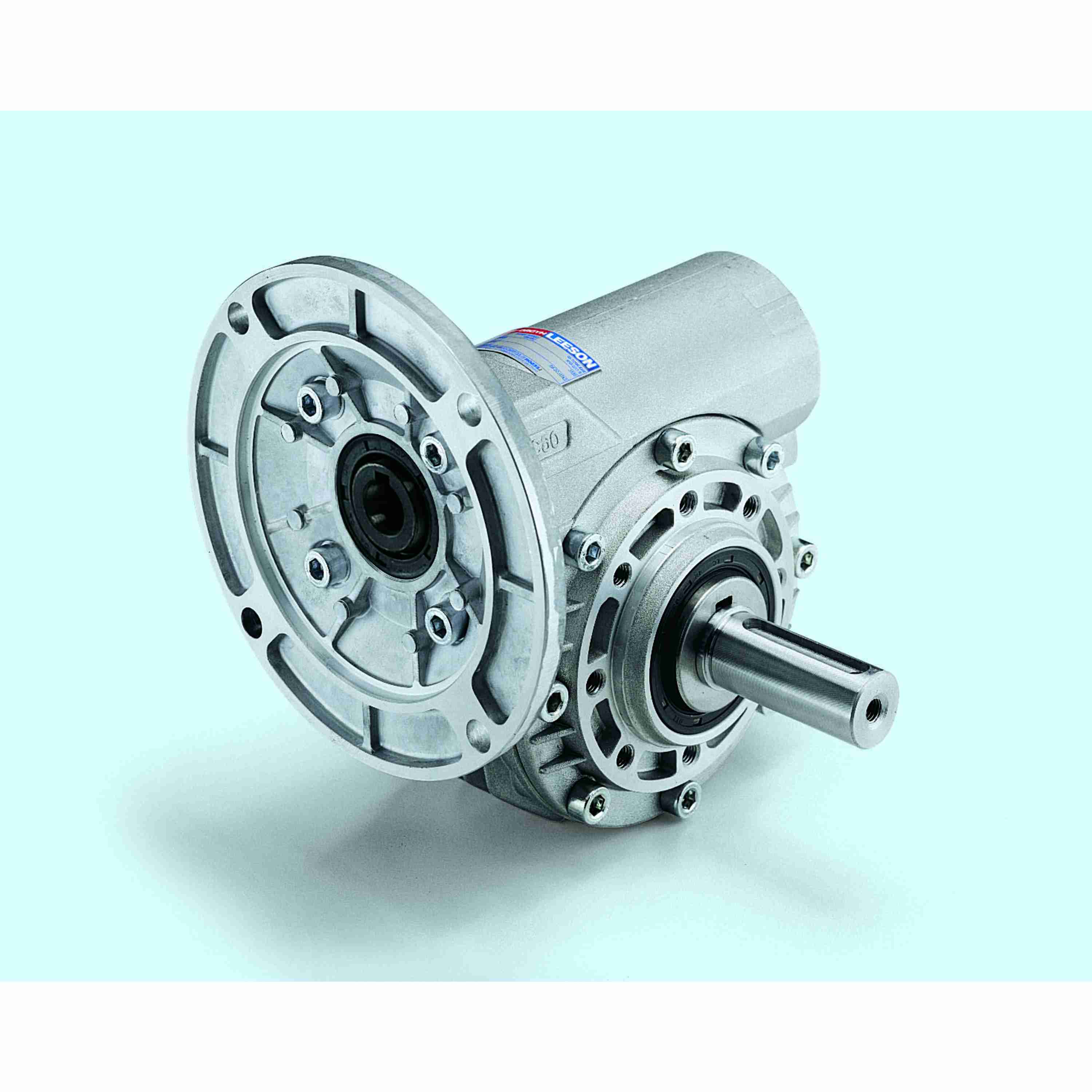

GROVE GEAR W5180041.00 BMQ518-07-R-56 Worm Reducer, 7:1 Ratio, 0.625 Inch I.D, 0.75 Inch O.D, Aluminum
Item: AY6NRJ
Model: W5180041.00
In Stock
Get it by Friday, Apr 17
£431.48/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Assembly | BMQ-R |
|---|---|
| Center Distance | 1.77" |
| Frame | 56C |
| Gear Type | Worm |
| Housing Material | Aluminum |
| Input Bore (c Face) | 5/8" |
| Input Dia. | 5/8" |
| Input Keyway Size | 3/16" x 1" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Max. Input Hp | 1.378 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 3/4" |
| Output Hp | 1.103 hp |
| Output Key Size | 3/16" x 1" |
|---|---|
| Output Rpm | 250 RPM |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Orientation | R |
| Output Style | R |
| Output Torque | 278 lbs.-in. |
| Overhung Load | 200 lbs. |
| Product Line | Bravo Series - Compact Aluminum Worm Speed Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | Bravo Series |
| Series Style | BMQ-R |
| Service Factor | 1 |
| Shaft Seal Material | Nitrile |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 2.54 |
| Width | 2.54 |
|---|---|
| Weight | 3.150000 |
