GROVE GEAR W5180015.00 Worm Reducer, Single Reduction | AY7RGZ

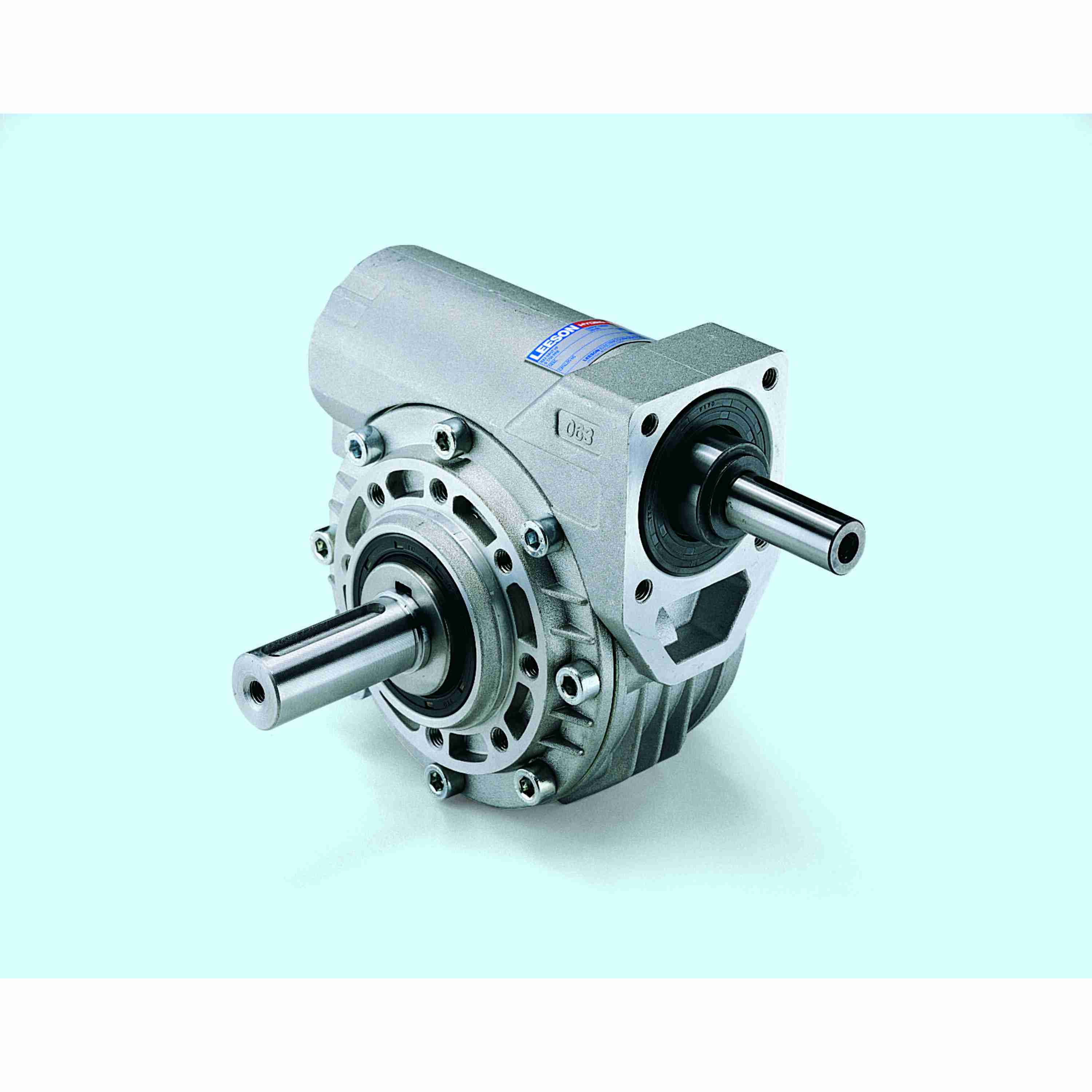

GROVE GEAR W5180015.00 B518-28-R Worm Reducer, Single Reduction

Item: AY7RGZ

Model: W5180015.00

In Stock

Get it by Friday, Apr 17

Ratio

£436.32/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications
Product Details
Shipping Information
See Variants

Specifications

Assembly	B-R
Center Distance	1.77"
Gear Type	Worm
Housing Material	Aluminum
Input Dia.	5/8"
Input Keyway Size	3/16" x 1"
Input Rpm	1750 RPM
Input Style	C Face Quill
Max. Input Hp	0.631 hp
Mounting Type	Base
No. Of Gear Reductions	1
Output Diameter	3/4"
Output Hp	41/100 hp
Output Key Size	3/16" x 1"
Output Rpm	63 RPM

Output Shaft	Shaft
Output Shaft Assembly Code	R
Output Shaft Direction	Right
Output Shaft Orientation	R
Output Style	R
Output Torque	410 lbs.-in.
Overhung Load	315 lbs.
Product Line	Bravo Series - Compact Aluminum Worm Speed Reducers
Reducer	Worm - Right Angle
Reduction Type	Single
Series	Bravo Series
Series Style	B-R
Service Factor	1
Shaft Seal Material	Nitrile

Product Details

Shipping Information

Height	2.54
Length	2.54

Width	2.54
Weight	2.700000

Related Products

B

Style	Model	max. input hp	mounting type	output torque	gear ratio	output rpm	output style	output shaft assembly code	assembly	Price (ex. VAT)	Cart
A	W5180078.00	0.363 hp	Shaft Mount	442 lbs.-in.	-	29 RPM	H	H	HMQ-H	652.95
A	W5180074.00	0.796 hp	Shaft	-	21:1	-	-	-	-	595.17
B	W5180072.00	0.981 hp	Shaft Mount	279 lbs.-in.	-	175 RPM	H	H	HMQ-H	317.34
A	W5180071.00	1.378 hp	Shaft	-	7:1	250 RPM	-	-	-	595.17
A	W5180073.00	0.871 hp	Shaft Mount	338 lbs.-in.	-	125 RPM	H	H	HMQ-H	595.17
A	W5180075.00	0.631 hp	Shaft Mount	410 lbs.-in.	-	63 RPM	H	H	HMQ-H	595.17
A	W5180139.MB	-	-	-	-	-	-	-	-	493.43
