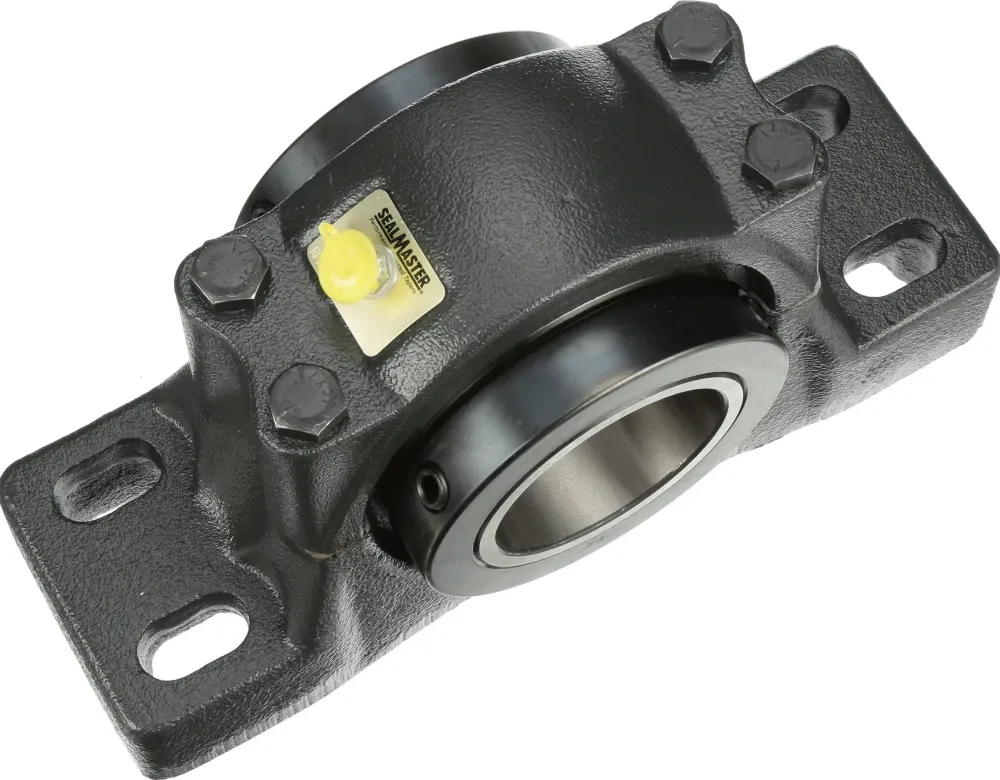

SEALMASTER ERPB 500-4 550815 Pillow Block Bearing, 4 Bolt, 5 Inch Bore, 5.5 Inch Base to Center Height
Item: BE8KRT
Model: ERPB 500-4
In Stock
Get it by Thursday, Apr 16
£11518.31/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Base To Center Height | 5 1/2" |
| Bearing Insert Finish | Black Oxide |
| Bolt Center Min | 13 1/2" |
| Bolt Size | 7/8" |
| Bore Dia. | 5" |
| Bore Shape | Straight |
| Collar Outer Dia. | 7.406" |
| Collar Outer Diameter | 7 13/32" |
| End Cap | No |
| Expansion | Yes |
| Foot Height | 3 1/8" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Height | 11" |
| Housing Base | Semi-Solid |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Htc | 8483.20.8080 |
| I.d. | 5" |
|---|---|
| Inner Race Length | 7 1/4" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | ERCI 500 |
| Internal Clearance | Standard |
| Length | 18 3/4" |
| Locking Device | Double Set Screw |
| Locking Type | Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 1000 RPM |
| Misalignment Type | Static Only |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Steel |
| Seal Flinger | Yes |
| Series | Rpb |
| Shaft Size | 5" |
| Width | 7 1/2" |
| no. links/ ft. | 0 |
Product Details
Shipping Information
| Height | 19.05 |
|---|---|
| Length | 47.62 |
| Width | 27.94 |
| Country Of Origin | US |
|---|---|
| Weight | 72.450000 |
Related Products
| Style | Model | Bore Dia. | Overall Length | Overall Height | Overall Width | Housing Type | Shaft Size | Max. Speed | Bolt Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | ERPB 415-N4 | 4 15/16" | 18 1/2" | 11.313" | - | Pillow Block, Four Bolt | - | 1000 RPM | 7/8" | 15,673.41 | |
| B | ERPB 307-C2 | 3 7/16" | 13 3/4" | 7.938" | 5" | - | 3 7/16" | 1500 RPM | 7/8" | 2,160.90 | |
| C | ERPB 315-4 | 3 15/16" | 15 1/4" | 8 7/8" | 6 1/4" | - | 3 15/16" | 1250 RPM | 3/4" | 3,102.36 | |
| D | ERPB 211-2 AH | - | - | - | - | Two Bolt Pillow Block | 2 11/16" | - | - | 5,738.78 | |
| D | ERPB 207-2 AH | - | - | - | - | Two Bolt Pillow Block | 2 7/16" | - | - | 2,006.57 | |
| E | ERPB 112-C2 | - | - | - | - | Two Bolt Pillow Block | 1 3/4" | - | - | 660.61 | |
| F | ERPB 303-N2 | 3 3/16" | 13 3/4" | 7.938" | - | Pillow Block, Two Bolt | - | 1500 RPM | 7/8" | 5,506.72 |
