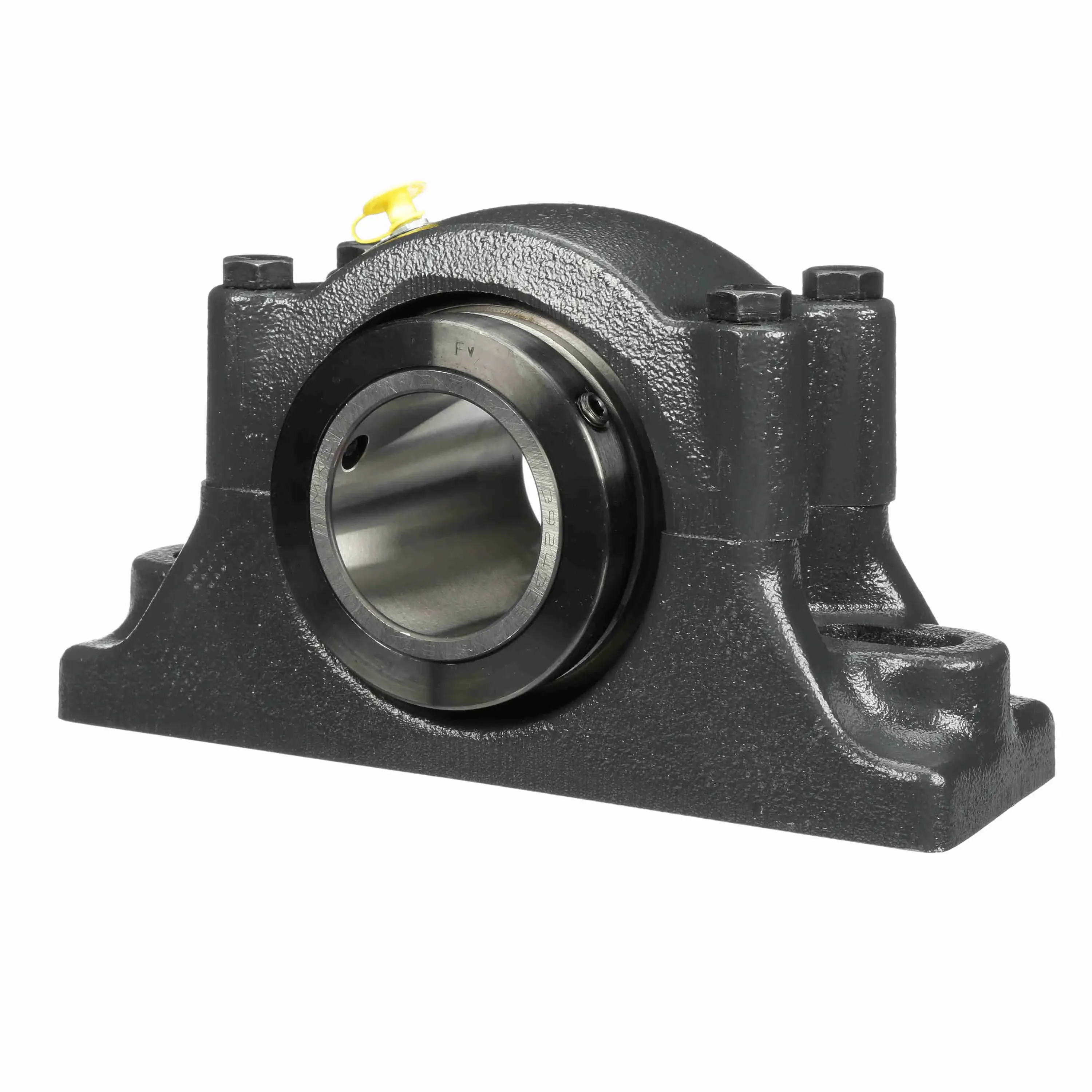

SEALMASTER ERPB 303-N2 552256 Pillow Block Bearing, 2 Bolt, 3.18 Inch Bore, 3.75 Inch Base to Center Height
Item: BD8HEX
Model: ERPB 303-N2
In Stock
Get it by Thursday, Apr 16
£6608.06/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Base To Center Height | 3 3/4" |
| Base Width | 4.516" |
| Bearing Insert Finish | Uncoated |
| Bolt Center Max | 11 1/4" |
| Bolt Center Min | 10 1/8" |
| Bolt Size | 7/8" |
| Bore Dia. | 3 3/16" |
| Bore Shape | Straight |
| Centerline To Front Face | 2 1/2" |
| Collar Outer Dia. | 5.438" |
| Collar Outer Diameter | 5.438" |
| Duty Series | Standard |
| Duty/series | Standard Series |
| End Cap | No |
| Expansion | Yes |
| Foot Height | 2.063" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 9.63" |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
|---|---|
| Htc | 8483.20.8080 |
| I.d. | 3 3/16" |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 5" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | ERCI-303N |
| Internal Clearance | Standard |
| Length | 16 1/2" |
| Locking Type | Double Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Operating Temperature | 400°F |
| Max. Speed | 1500 RPM |
| Misalignment Type | Static Only |
| Operating Temperature Range | 400°F |
| Options | High Temperature |
| Outer Ring Land Profile | Standard |
| Overall Height | 7.938" |
| Overall Length | 13 3/4" |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Rolling Element | Tapered Roller |
| Seal Type | High Temp Labyrinth |
| Width | 6 3/4" |
Product Details
Pillow Block Bearing
Shipping Information
| height | 17.14 |
|---|---|
| length | 41.91 |
| width | 24.46 |
| country of origin | US |
|---|---|
| weight | 28.800000 |
