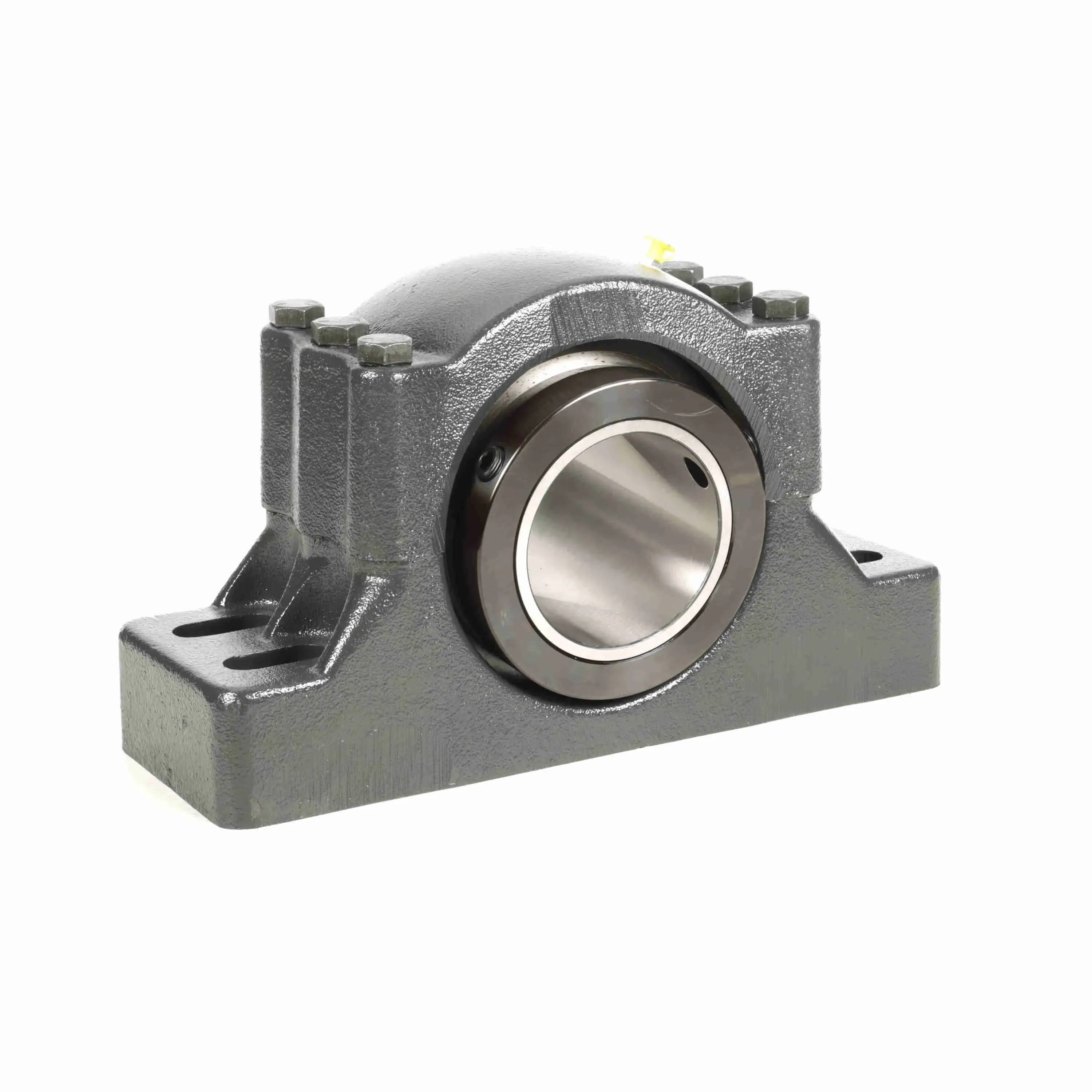

SEALMASTER ERPB 315-4 550810 Pillow Block Bearing, 4 Bolt, 3.93 Inch Bore, 4.25 Inch Base to Center Height

Item: BD6QUZ
Model: ERPB 315-4
In Stock

Get it by Wednesday, Apr 15

£3722.83/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Base To Center Height 4 1/4"
Base Width 5.156"
Bearing Insert Finish Uncoated
Bolt Center Max 13"
Bolt Center Min 11"
Bolt Size 3/4"
Bore Dia. 3 15/16"
Bore Shape Straight
Centerline To Front Face 3 1/8"
Collar Outer Dia. 5.938"
Collar Outer Diameter 5.938"
Duty Series Standard
Duty/series Standard Series
Dynamic Radial Load Capacity 20980 lbs.
End Cap No
Expansion Yes
Foot Height 2.438"
Grade Grade 52100
Grease Fitting Thread Size 1/8"
Grease Fitting Thread Type NPT
Height 9.63"
Housing Color Gray
Housing Construction Split Two Piece
Housing Material Cast Iron
Housing Style Pillow Block
Htc 8483.20.8080
I.d. 3 15/16"
Inner Race Heat Treat Method Case Carburized Inner Ring
Inner Race Length 6 1/4"
Insert Material Steel
Insert Material Grade 52100
Insert Number ERCI-315
Internal Clearance Standard
Length 16 1/2"
Locking Device Double Set Screw
Locking Type Double Collar Mount
Lubrication Type Lithium, EP, NLGI
Max. Speed 1250 RPM
Misalignment Type Static Only
Outer Ring Land Profile Standard
Overall Height 8 7/8"
Overall Length 15 1/4"
Overall Width 6 1/4"
Platform RPB Series
Replaceable Insert Yes
Retainer Material Steel
Retainer Type Steel
Seal Flinger Yes
Series ERPB Series
Shaft Size 3 15/16"
Width 6 3/4"
no. links/ ft. 0

Product Details

Pillow Block Bearing

Shipping Information

height 17.14
length 41.91
width 24.46
country of origin US
weight 40.500000
