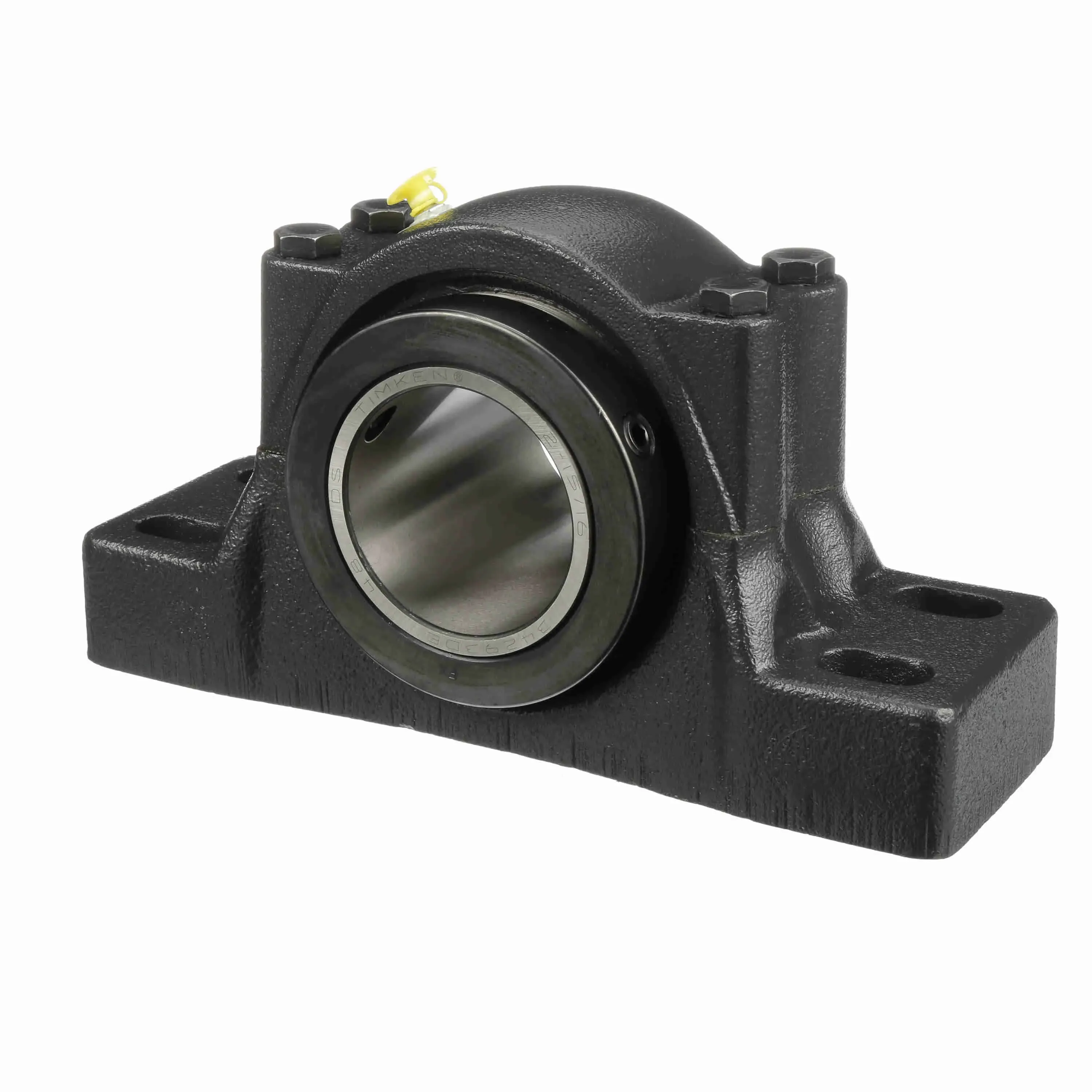

SEALMASTER ERPB 415-N4 552264 Pillow Block Bearing, 4 Bolt, 4.93 Inch Bore, 5.5 Inch Base to Center Height

Item: BD6MCF
Model: ERPB 415-N4
In Stock

Get it by Friday, Apr 17

£18,808.09/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Base To Center Height 5 1/2"
Base Width 6.078"
Bearing Insert Finish Uncoated
Bolt Center Min 13 1/2"
Bolt Size 7/8"
Bore Dia. 4 15/16"
Bore Shape Straight
Centerline To Front Face 3 5/8"
Collar Outer Dia. 7.313"
Collar Outer Diameter 7.313"
Duty Series Standard
Duty/series Standard Series
End Cap No
Expansion Yes
Foot Height 3 1/8"
Grade Grade 52100
Grease Fitting Thread Size 1/8"
Grease Fitting Thread Type NPT
Height 11"
Housing Base Solid
Housing Color Gray
Housing Construction Split Two Piece
Housing Material Cast Iron
Housing Style Pillow Block
Housing Type Pillow Block, Four Bolt
Htc 8483.20.8080
I.d. 4 15/16"
Inner Race Heat Treat Method Case Carburized Inner Ring
Inner Race Length 7 1/4"
Insert Material Steel
Insert Material Grade 52100
Insert Number ERCI-415N
Internal Clearance Standard
Length 18 3/4"
Locking Type Double Collar Mount
Lubrication Type Lithium, EP, NLGI
Max. Operating Temperature 400°F
Max. Speed 1000 RPM
Misalignment Type Static Only
Operating Temperature Range 400°F
Options High Temperature
Outer Ring Land Profile Standard
Overall Height 11.313"
Overall Length 18 1/2"
Platform RPB Series
Replaceable Insert Yes
Retainer Material Steel
Rolling Element Tapered Roller
Seal Type High Temp Labyrinth
Width 7 1/2"

Shipping Information

Height 19.05
Length 47.62
Width 27.94
Country Of Origin US
Weight 72.450000
