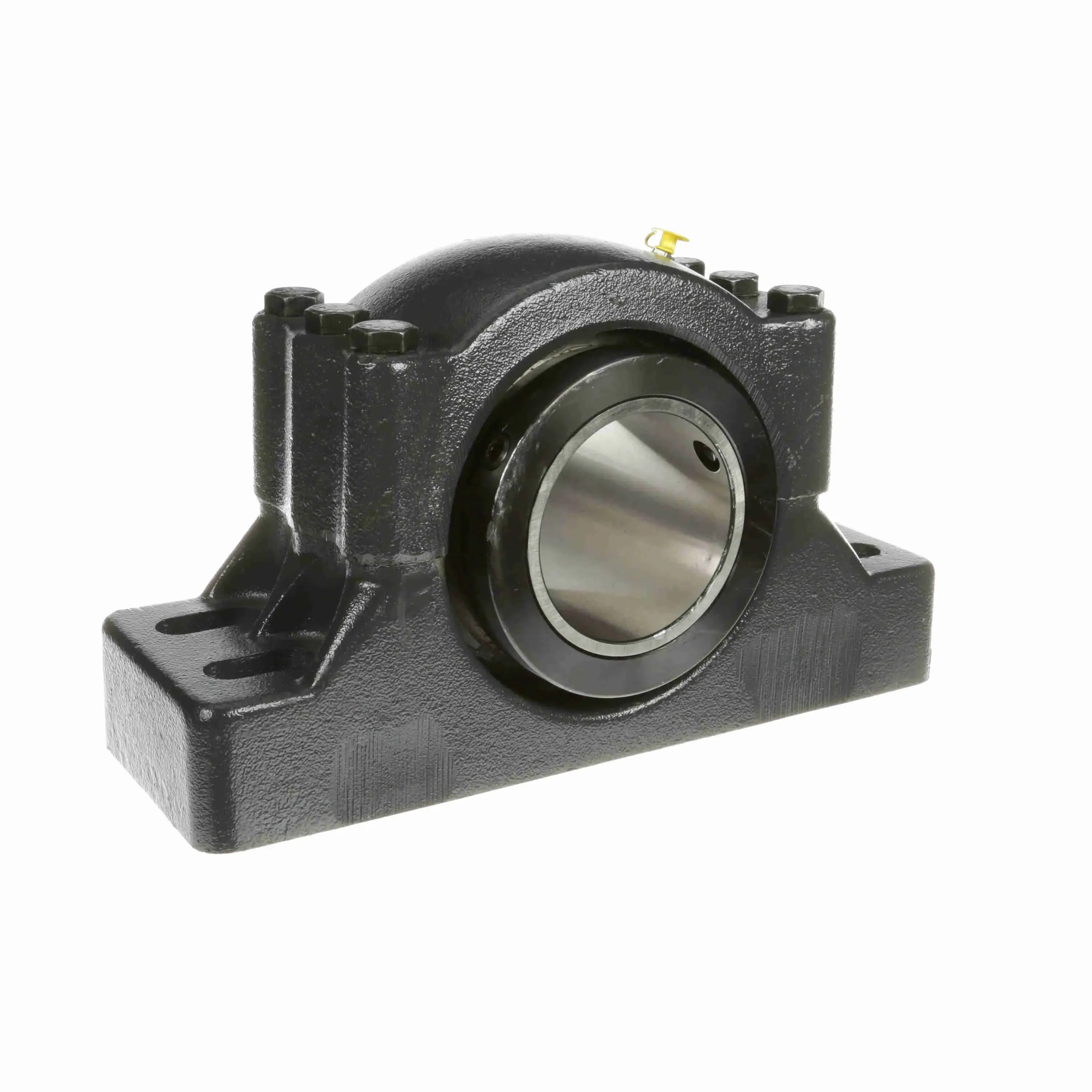

SEALMASTER ERPB 407-4 550812 Pillow Block Bearing, 4 Bolt, 4.43 Inch Bore, 4.75 Inch Base to Center Height
Item: BE7DLC
Model: ERPB 407-4
In Stock
Get it by Friday, Apr 17
£6,568.54/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Base To Center Height | 4 3/4" |
| Base Width | 5 3/8" |
| Bearing Insert Finish | Uncoated |
| Bolt Center Min | 11 3/4" |
| Bolt Center-to-center Length | 12.815" |
| Bolt Size | 3/4" |
| Bore Dia. | 4 7/16" |
| Bore Shape | Straight |
| Centerline To Front Face | 3 3/8" |
| Collar Outer Dia. | 6 1/2" |
| Collar Outer Diameter | 6 1/2" |
| Duty Series | Standard |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 25750 lbs. |
| End Cap | No |
| Expansion | Yes |
| Foot Height | 2 3/4" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 9.63" |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Htc | 8483.20.8080 |
| I.d. | 4 7/16" |
|---|---|
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 6 3/4" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | ERCI-407 |
| Internal Clearance | Standard |
| Length | 16 1/2" |
| Locking Device | Double Set Screw |
| Locking Type | Double Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 1250 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 9 7/8" |
| Overall Length | 16 1/2" |
| Overall Width | 6 3/4" |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Steel |
| Seal Flinger | Yes |
| Series | ERPB Series |
| Shaft Size | 4 7/16" |
| Width | 6 3/4" |
| no. links/ ft. | 0 |
Shipping Information
| Height | 17.14 |
|---|---|
| Length | 41.91 |
| Width | 24.46 |
| Country Of Origin | US |
|---|---|
| Weight | 49.770000 |
Related Products
| Style | Model | Bore Dia. | Overall Length | Overall Height | Overall Width | Housing Type | Shaft Size | Max. Speed | Bolt Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | ERPB 415-N4 | 4 15/16" | 18 1/2" | 11.313" | - | Pillow Block, Four Bolt | - | 1000 RPM | 7/8" | 15,673.41 | |
| B | ERPB 307-C2 | 3 7/16" | 13 3/4" | 7.938" | 5" | - | 3 7/16" | 1500 RPM | 7/8" | 2,160.90 | |
| C | ERPB 315-4 | 3 15/16" | 15 1/4" | 8 7/8" | 6 1/4" | - | 3 15/16" | 1250 RPM | 3/4" | 3,102.36 | |
| D | ERPB 211-2 AH | - | - | - | - | Two Bolt Pillow Block | 2 11/16" | - | - | 5,738.78 | |
| D | ERPB 207-2 AH | - | - | - | - | Two Bolt Pillow Block | 2 7/16" | - | - | 2,006.57 | |
| E | ERPB 112-C2 | - | - | - | - | Two Bolt Pillow Block | 1 3/4" | - | - | 660.61 | |
| F | ERPB 303-N2 | 3 3/16" | 13 3/4" | 7.938" | - | Pillow Block, Two Bolt | - | 1500 RPM | 7/8" | 5,506.72 |
