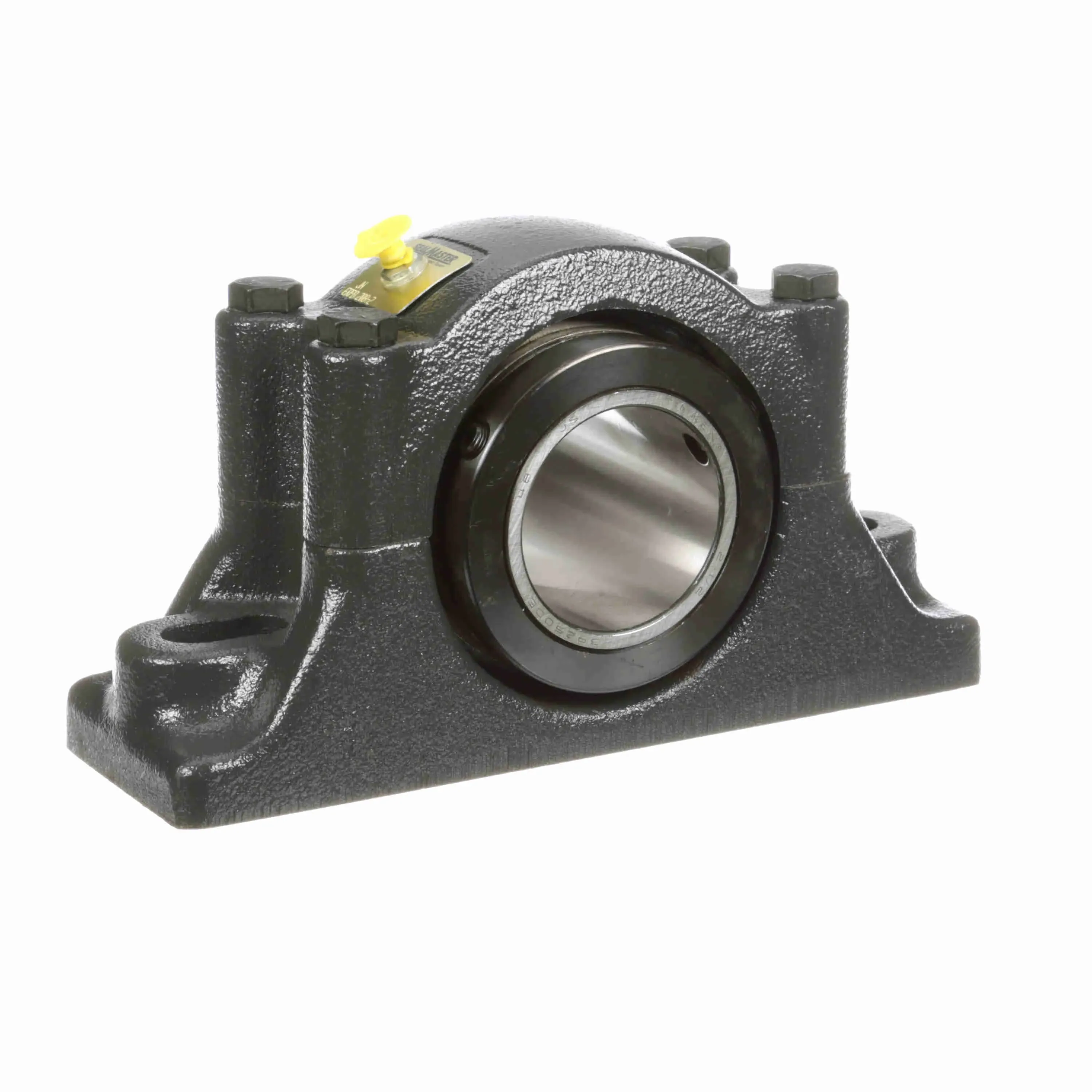

SEALMASTER ERPB 208-2 550801 Pillow Block Bearing, 2 Bolt, 2.5 Inch Bore, 2.75 Inch Base to Center Height

Item: BE8HYN
Model: ERPB 208-2
In Stock

Get it by Wednesday, Apr 15

We deliver to your doorstep under DAP terms. Customs clearance is for your account

Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Base To Center Height 2 3/4"
Base Width 3.406"
Bearing Insert Finish Uncoated
Bolt Center Max 8.688"
Bolt Center Min 6.938"
Bolt Center-to-center Length 7.815"
Bolt Size 5/8"
Bore Dia. 2 1/2"
Bore Shape Straight
Centerline To Front Face 2"
Collar Outer Dia. 3.938"
Collar Outer Diameter 3.938"
Duty Series Standard
Duty/series Standard Series
Dynamic Radial Load Capacity 9030 lbs.
End Cap No
Expansion Yes
Foot Height 1 5/8"
Grade Grade 52100
Grease Fitting Thread Size 1/8"
Grease Fitting Thread Type NPT
Height 4.13"
Housing Color Gray
Housing Construction Split Two Piece
Housing Material Cast Iron
Housing Style Pillow Block
Htc 8483.20.8080
I.d. 2 1/2"
Inner Race Heat Treat Method Case Carburized Inner Ring
Inner Race Length 4"
Insert Material Steel
Insert Material Grade 52100
Insert Number ERCI-208
Internal Clearance Standard
Length 10 1/2"
Locking Device Double Set Screw
Locking Type Double Collar Mount
Lubrication Type Lithium, EP, NLGI
Max. Speed 2000 RPM
Misalignment Type Static Only
Outer Ring Land Profile Standard
Overall Height 5 3/4"
Overall Length 10 3/8"
Overall Width 4"
Platform RPB Series
Replaceable Insert Yes
Retainer Material Steel
Retainer Type Steel
Seal Flinger Yes
Series ERPB Series
Shaft Size 2 1/2"
Width 5.88"
no. links/ ft. 0

Product Details

Pillow Block Bearing

Shipping Information

height 14.94
length 26.67
width 10.49
country of origin US
weight 10.350000
