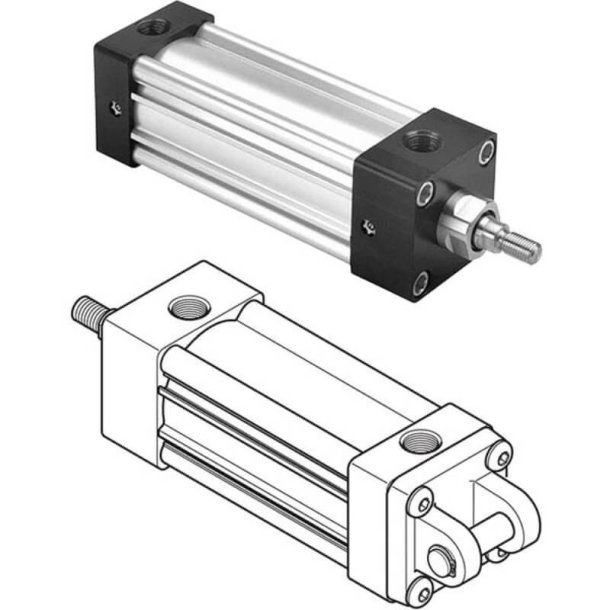

PARKER 3.25BC4MA3U34A13.00 Pneumatic Cylinder

Item: EB8XWH

Model: 3.25BC4MA3U34A13.00

In Stock

Get it by Wednesday, Apr 15

13"

Stroke Length

£925.36/unit

Trade Prices Available

Request Quote

Payment

Delivery

Stroke Length

Specifications
Product Details
Shipping Information
See Variants

Specifications

Ambient Air Temp.	-10°F to +165°F
Ambient Air Temp. For Operation	-10°F to +165°F
Application Type	General Industry Conveyors Assembly Packaging
Bore Size	3 1/4"
Chemical Resistance	Corrosion resistance
Connection Type	2 x 1/2" NPT Threaded Pneumatic Ports 1"-14 UNF Male Small Threaded Rod-End
Design	Piston Magnet "LipSeal" Piston Small Male Rod-End Thread NFPA Interchangeable Model Repairable
dia.	1 3/8"
function	Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder

Main Function	Pneumatic Cylinder
Material	Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Max. Air Service Pressure	250 psig
Mounting	Cap Detachable Clevis Mounting (NFPA MP2)
Mounting Mode	Cap Detachable Clevis Mounting NFPA MP2
Pressure	250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Shape	Rectangular
Standard Logo	rohs.png
Stroke Length	13"

Product Details

Cylinder

Shipping Information

height	2.54
length	2.54

width	2.54
weight	1.125000
