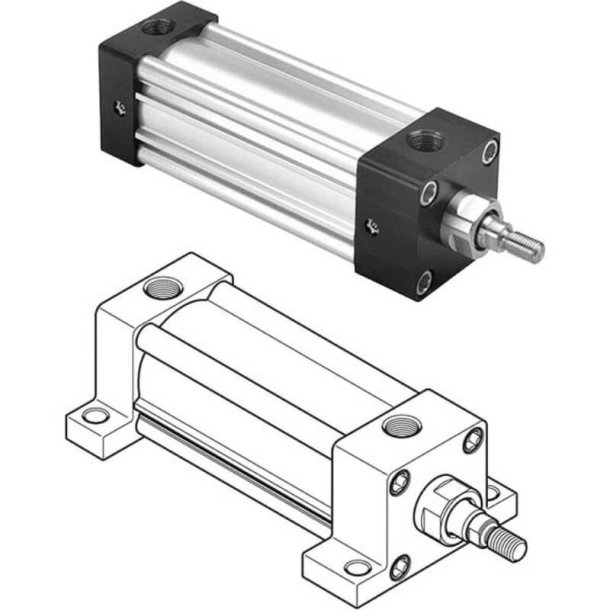

PARKER 3.25C4MAU14A17.00 Pneumatic Cylinder

Item: EB3EQA
Model: 3.25C4MAU14A17.00
In Stock

Get it by Wednesday, Apr 15

We deliver to your doorstep under DAP terms. Customs clearance is for your account

Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +165°F
Ambient Air Temp. For Operation -10°F to +165°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 3 1/4"
Chemical Resistance Corrosion resistance
Connection Type 2 x 1/2" NPT Threaded Pneumatic Ports 3/4"-16 UNF Male Small Threaded Rod-End
Design Piston Magnet "LipSeal" Piston Small Male Rod-End Thread NFPA Interchangeable Model Repairable
dia. 1" No.1
Dia. 1"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting Side Lug Mounting (NFPA MS2)
Mounting Mode Side Lug Mounting (NFPA MS2)
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Shape Rectangular
Standard Logo rohs.png
Stroke Length 17"

Product Details

Cylinder

Shipping Information

height 2.54
length 2.54
width 2.54
weight 1.125000
