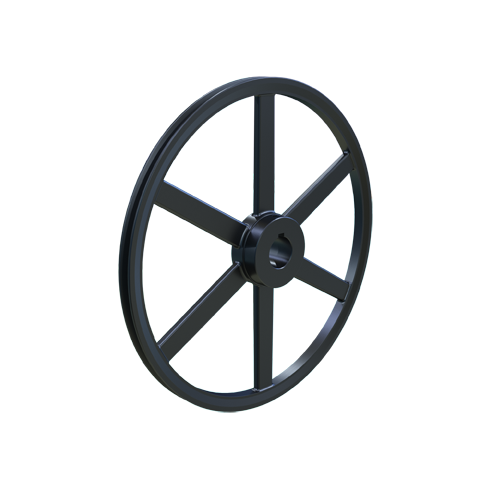

MARTIN SPROCKET AK154 1 7/16 Sheave, 1.438 Inch Bore, 15.250 Inch Outside Dia., 1 Groove, Cast Iron
Item: BA6PPF
Model: AK154 1 7/16
In Stock
Get it by Thursday, Apr 16
15.250"
1.438"
£208.45/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| 3l Belt Pitch Dia. | 14.66" |
|---|---|
| 4la Or A Belt Pitch Dia. | 15" |
| Bore Diameter | 1 7/16" |
| Bore Type | Finished |
| Bushing Type | H |
| Face Width | 3/4" |
| Hub Diameter | 2 1/4" |
| Hub Projection | 0.719" |
| Length | 1 15/32" |
|---|---|
| Material | Cast Iron |
| Number Of Grooves | 1 |
| Outside Dia. | 15 1/4" |
| Outside Diameter | 15 1/4" |
| Series | AK Series |
| Suitable For Use With | A, 3L, 4L Cross Section Belts |
| Type | Arm, Spoke Bored to Size Type C |
Product Details
Sheave
Shipping Information
| height | 5.08 |
|---|---|
| length | 38.74 |
| width | 38.74 |
| country of origin | US |
|---|---|
| weight | 4.365000 |
