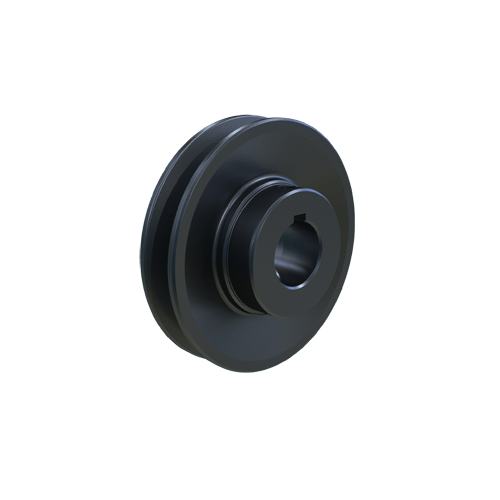

MARTIN SPROCKET AK39 15/16 Sheave, 0.938 Inch Bore, 3.750 Inch Outside Dia., 1 Groove, Cast Iron
Item: AM3KWZ
Model: AK39 15/16
In Stock
Get it by Wednesday, Apr 15
3.750"
0.938"
£47.95/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| 3l Belt Pitch Dia. | 3 4/25" |
|---|---|
| 4la Or A Belt Pitch Dia. | 3 1/2" |
| Bore Diameter | 0.938" |
| Bore Type | Finished |
| Face Width | 3/4" |
| Hub Diameter | 2 1/4" |
| Hub Projection | 15/32" |
| Length | 1 7/32" |
| Material | Cast Iron |
|---|---|
| Number Of Grooves | 1 |
| Outside Dia. | 3 3/4" |
| Outside Diameter | 3 3/4" |
| Series | AK Series |
| Suitable For Use With | A, 4L Cross Section V Belts |
| Type | Bored to Size Type B Web |
Product Details
Sheave
Shipping Information
| height | 1.9 |
|---|---|
| length | 9.52 |
| width | 9.52 |
| country of origin | US |
|---|---|
| weight | 0.720000 |
