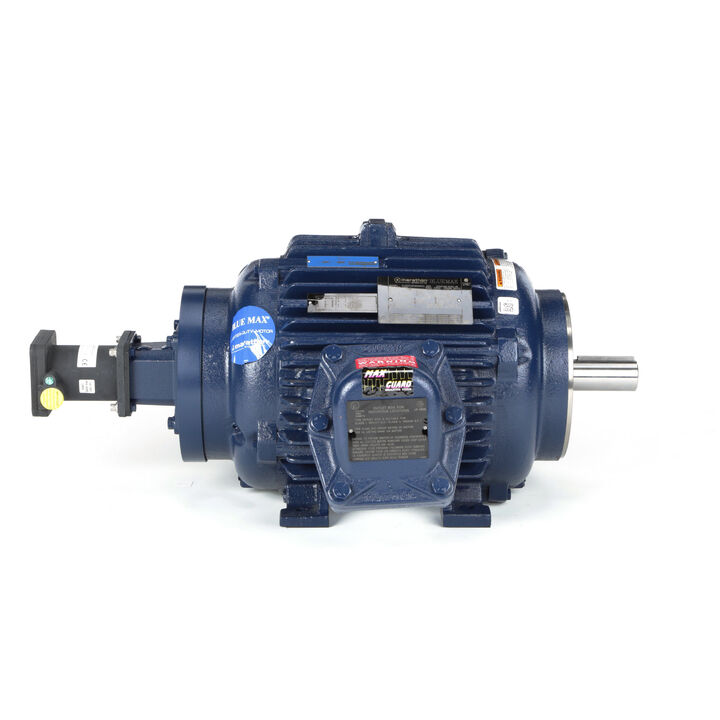

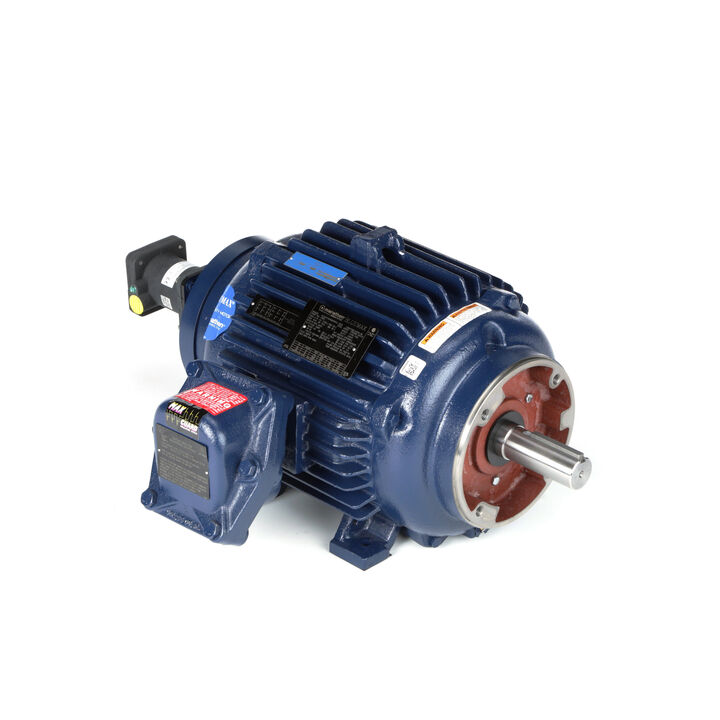

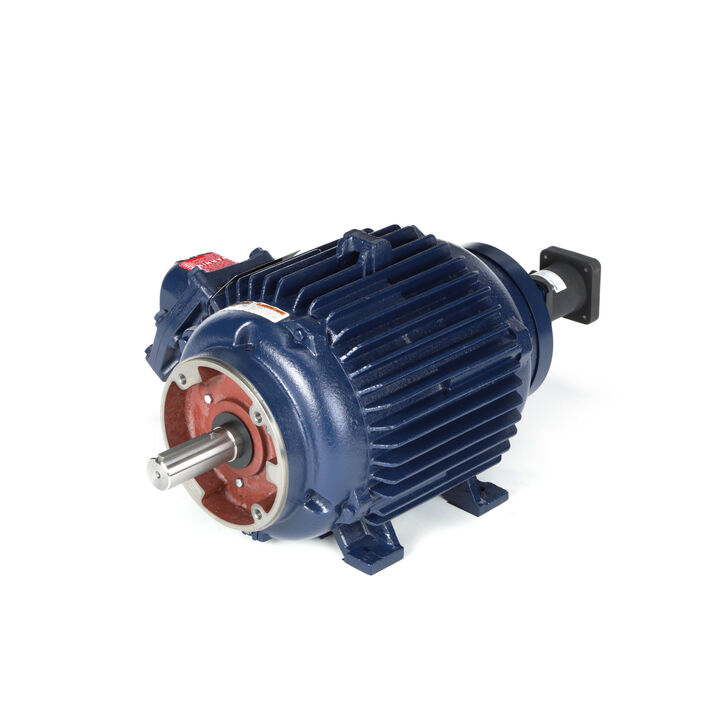

MARATHON MOTORS 254THEN8059 Y983 / 254THEN8059CC Explosion Proof Motor, 10 HP, 3 Phase, 60 Hz, 230/460 V, 1800 RPM

Item: AF8KVQ
Model: 254THEN8059
In Stock

Get it by Thursday, Apr 16

£13399.78
5.00% off
£12729.79/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Temp. 40°C
Application Crane
Base Rigid
Base Type Rigid Base
Bearing Type Ball
Bearings Ball
Cc Number CC003A
Color Blue
Conduit Box Location Exterior
Conduit Box Position F1, F2
Duty Continuous
Duty Cycle Continuous
Efficiency 91.7%
Efficiency Group Premium
Encoder Acceptable Yes
Encoder Shaft 1"
Finish Blue
Frame 254TC
Frame Material Cast Iron
Frequency 60 Hz
Full Load Amps 27/13.5A
Hazardous Location Class 1C, D/2F, G
Hp 10 hp
Includes Bei H38 Explosion Proof Encoder 1024 PPR
Insulation Class Class F
Insulation Feature Max Guard
Manufacturers Warranty Length 3 yrs.
Max. Ambient Temp. 104°F
Max. Operating Frequency 120 Hz
Max. Rpm 1800 RPM
Motor Application Crane
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Non Ventilated
Motor Frame Material Cast Iron
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Type Three Phase
Mounting Type Rigid Base
Nameplate Rpm 1775 RPM
Nema Design A
No. Of Speeds 1
Nominal Efficiency 91.7%
Number Of Speeds 1
Overall Length 30 3/16"
Phase 3
Service Factor 1
Shaft Dia. 1 5/8"
Shaft Length 3 3/4"
Speed Range 2000:1
Speed Ratio 2000:1
Standard Logo ul.png,csa.png
Thermal Protection Thermostat
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V AC
Warranty 3 yrs.
Motor Thermal Protection None
standard CL I GR C&D, CL II GR E, CSA, F&G, UL LISTED

Product Details

Vector Motor

Shipping Information

height 51.84
length 88.9
width 66.04
hs code 8501524000
country of origin US
weight 169.200000
