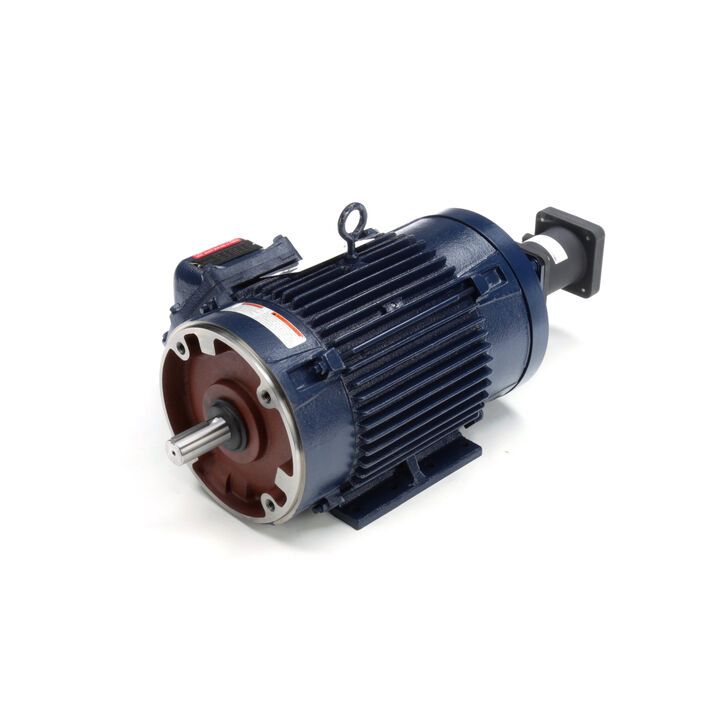

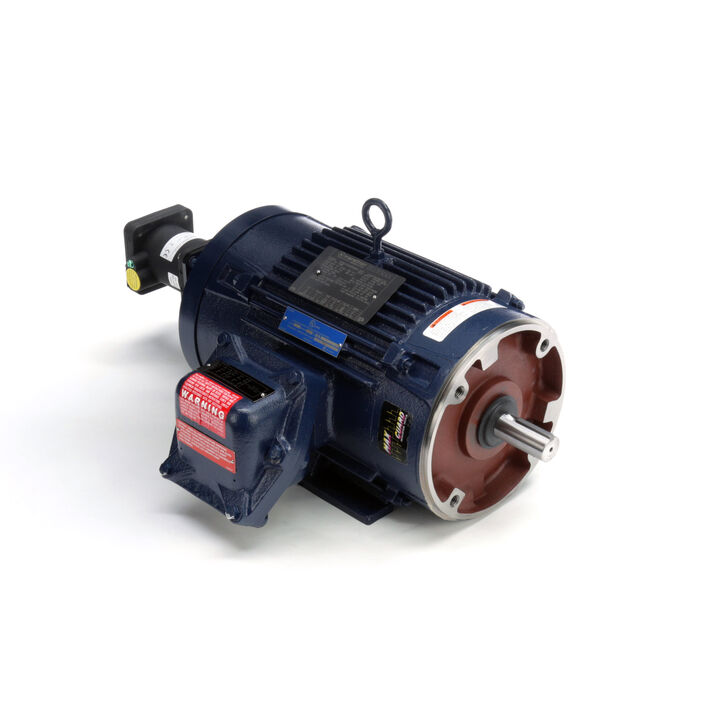

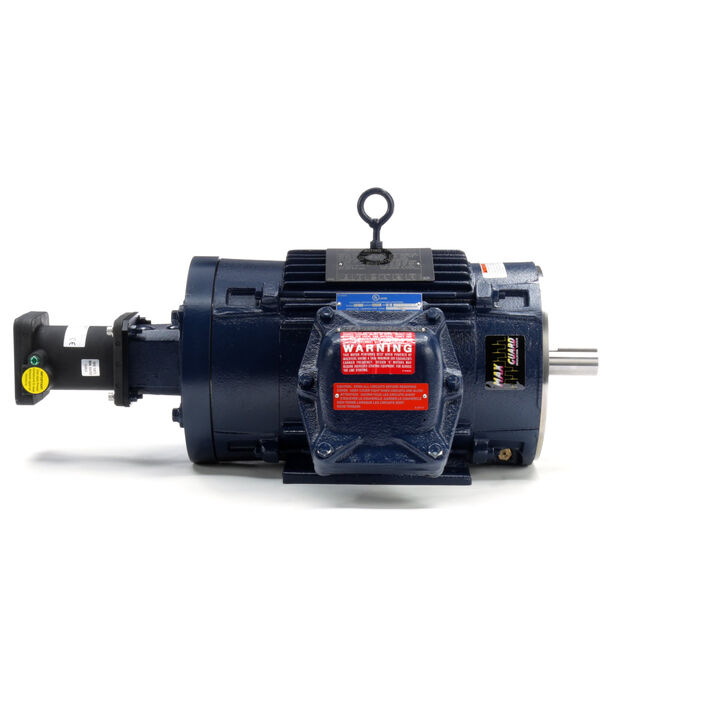

Item | Vector Motor |
Ambient Temp. Range | 40 Degrees C |
Base | Rigid |
Bearings | Ball |
Duty | Continuous |
Efficiency Group | Standard |
Encoder Acceptable | Yes |
Encoder Shaft | 5/8" |
Finish | Blue |
Frame | 182TC |
Frame Material | Cast Iron |
Full Load Amps | 8.2/4.1 |
HP | 3 |
Hz | 60 |
Insulation Class | F |
Insulation Feature | Max Guard |
Max. Operating Frequency | 120 Hz |
Max. Speed | 3600 RPM |
Motor Application | Cranes |
Motor Design | 3-Phase |
Motor Enclosure Design | Hazardous Location |
Motor Mounting Position | Horizontal |
Motor Mounting Type | Face/Base |
Motor Shaft Design | Keyed |
Motor Shaft Rotation | CW/CCW |
Motor Thermal Protection | T-stat |
Nameplate RPM | 1745 |
NEMA Design | A |
Nominal Efficiency | 84 |
Overall Length | 24 13/16" |
Phase | 3 |
RPM Range | 1701-1800 |
Service Factor | 1.00 |
Shaft Dia. | 1.125" |
Shaft Length | 2.625" |
Speed Range | 2000:1 CT |
Thermal Protection | T-stat |
Voltage | 230/460 |
Warranty | 3 yr. |
Ship weight (kg) | 52.65 |
Ship height (cm) | 35.56 |
Ship length (cm) | 77.47 |
Ship width (cm) | 42.7 |
HS code | 8501524000 |
Product | Model | Overall Length | Efficiency Group | Frame | Shaft Dia. | Shaft Length | Full Load Amps | HP | Nameplate RPM | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
143THEN8034 | 21.437" | Premium | 143TC | 7/8" | 2.125" | 3.0/1.5 | 1 | 1756 | £9,418.70 | ||
145THEN8034 | 21.437" | Epact | 145TC | 7/8" | 2.125" | 5.8/2.9 | 2 | 1750 | £9,761.59 | ||
213THES8053 | 26.187" | Premium | 213TC | 1.375" | 3.125" | 13/6.5 | 5 | 1765 | £9,528.31 | ||
254THEN8058 | 30.187" | Premium | 254TC | 1.625" | 3.75" | 22.0/11.0 | 7.5 | 1782 | £10,835.12 | ||
254THEN8059 | 30.187" | Premium | 254TC | 1.625" | 3.75" | 27.0/13.5 | 10 | 1775 | £11,351.12 | ||
256THEN17031 | 31 15/16" | Premium | 256TC | 1.625" | 3.75" | 36/18-30/15 | 15 | 1770 | £11,953.06 |
