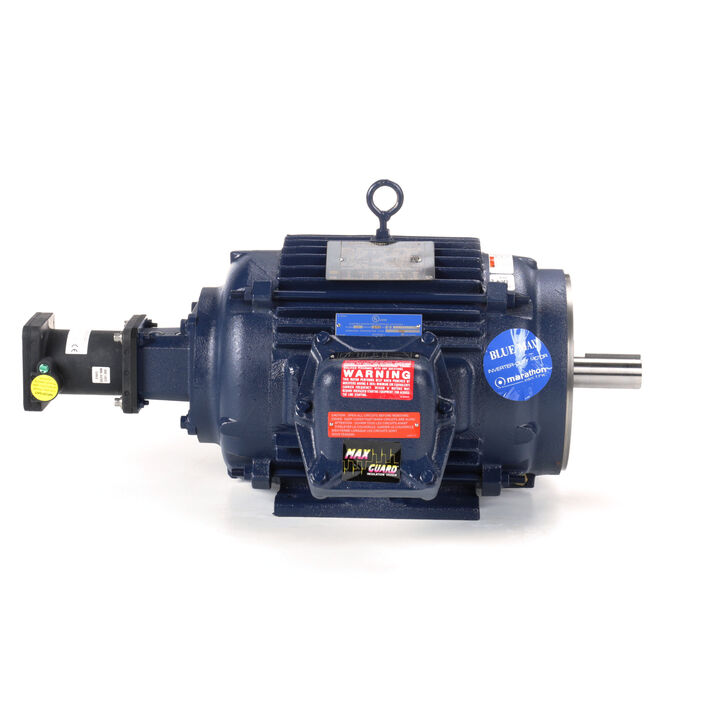

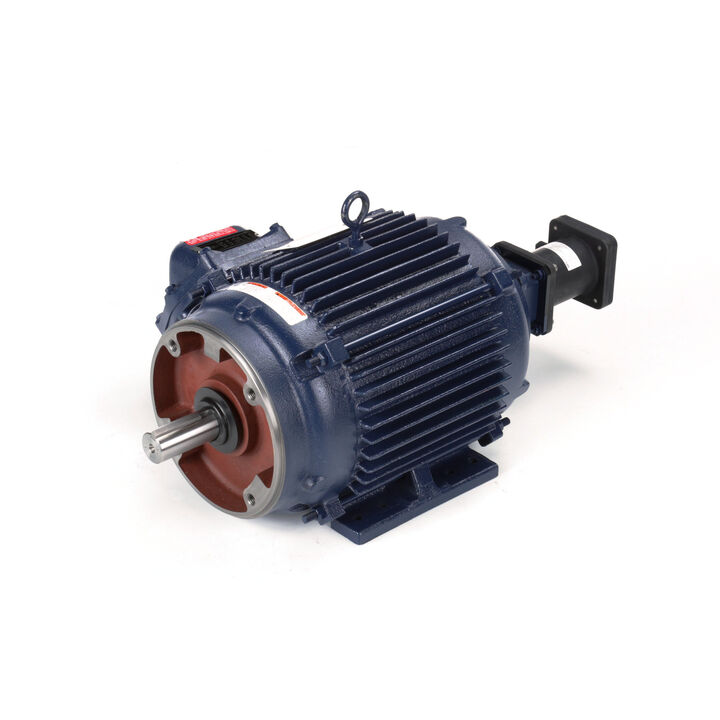

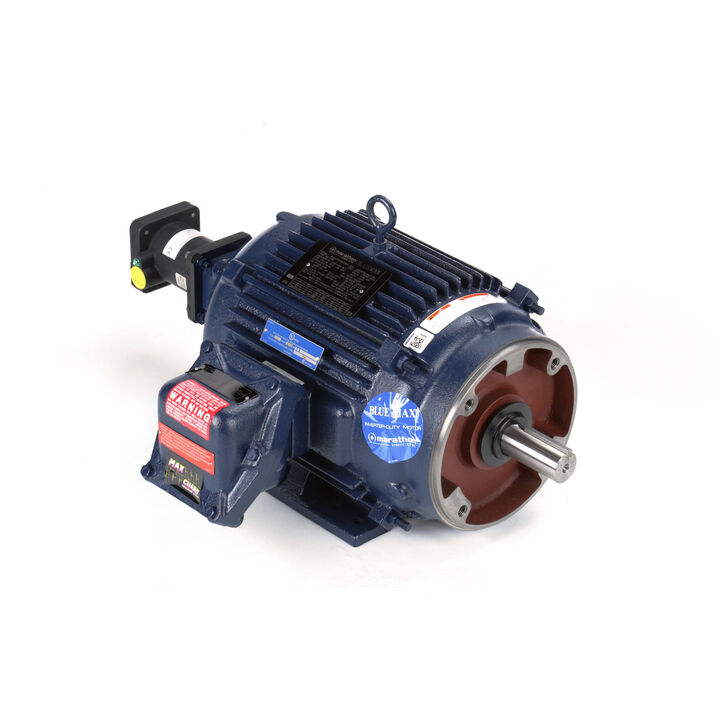

MARATHON MOTORS 213THES8053 Y981 / 213THES8053BP Explosion Proof Motor, 5 HP, 3 Phase, 60 Hz, 230/460 V, 1800 RPM
Item: AF8KVN
Model: 213THES8053
In Stock
Get it by Friday, Apr 17
5.00% off
£10725.1/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ambient Temp. | 40°C |
|---|---|
| Application | Crane |
| Base | Rigid |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Bearings | Ball |
| Cc Number | CC003A |
| Color | Blue |
| Conduit Box Position | F1, F2 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 90.2% |
| Encoder Acceptable | Yes |
| Encoder Shaft | 1" |
| Finish | Blue |
| Frame | 213TC |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 13/6.5A |
| Hazardous Location Class | 1C, D/2F, G |
| Hp | 5 hp |
| Insulation Class | Class F |
| Insulation Feature | Max Guard |
| Max. Ambient Temp. | 104°F |
| Max. Operating Frequency | 90 Hz |
| Max. Rpm | 3600 RPM |
| Motor Application | Crane |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
|---|---|
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1765 RPM |
| Nema Design | A |
| No. Of Speeds | 1 |
| Nominal Efficiency | 90.2% |
| Number Of Speeds | 1 |
| Overall Length | 26 3/16" |
| Phase | 3 |
| Service Factor | 1 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3 1/8" |
| Speed Range | 2000:1 |
| Speed Ratio | 2000:1 |
| Standard Logo | ul.png, csa.png |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 3 yrs. |
| Motor Thermal Protection | None |
Product Details
Shipping Information
| Height | 45.72 |
|---|---|
| Length | 79.38 |
| Width | 56.52 |
| HS Code | 8501524000 |
|---|---|
| Country Of Origin | US |
| Weight | 108.000000 |
Related Products
| Style | Model | Hp | Nameplate Rpm | Frame | Nominal Efficiency | Full Load Amps | Efficiency Group | Motor Thermal Protection | Max. Rpm | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 182THES8048 | 3 hp | 1745 RPM | 182TC | 86.5% | 8.2/4.1A | Standard | - | 3600 RPM | 11,210.71 | |
| B | 254THEN8058 | 7 1/2 hp | 1782 RPM | 254TC | 91.7% | 22/11A | Premium | - | 1800 RPM | 13,412.86 | |
| C | 254THEN8059 | 10 hp | 1775 RPM | 254TC | 91.7% | 27/13.5A | Premium | - | 1800 RPM | 11,166.48 | |
| D | 256THEN17031 | 15 hp | 1770 RPM | 256TC | 93% | 36/18-30/15A | Premium | - | 1800 RPM | 14,689.84 |
