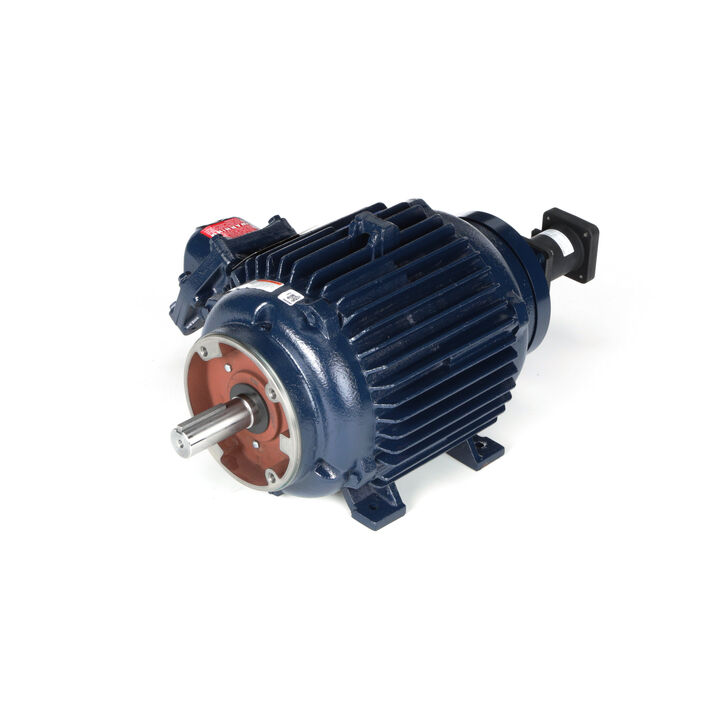

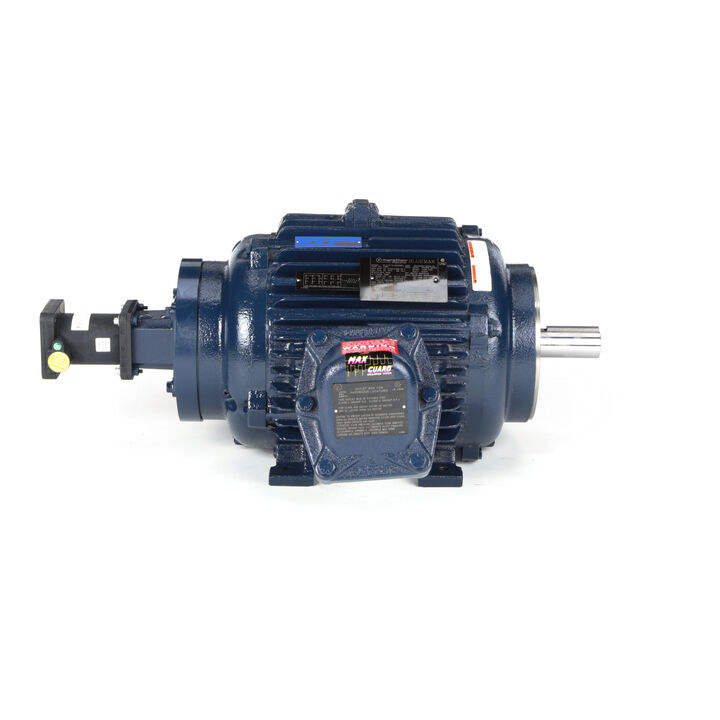

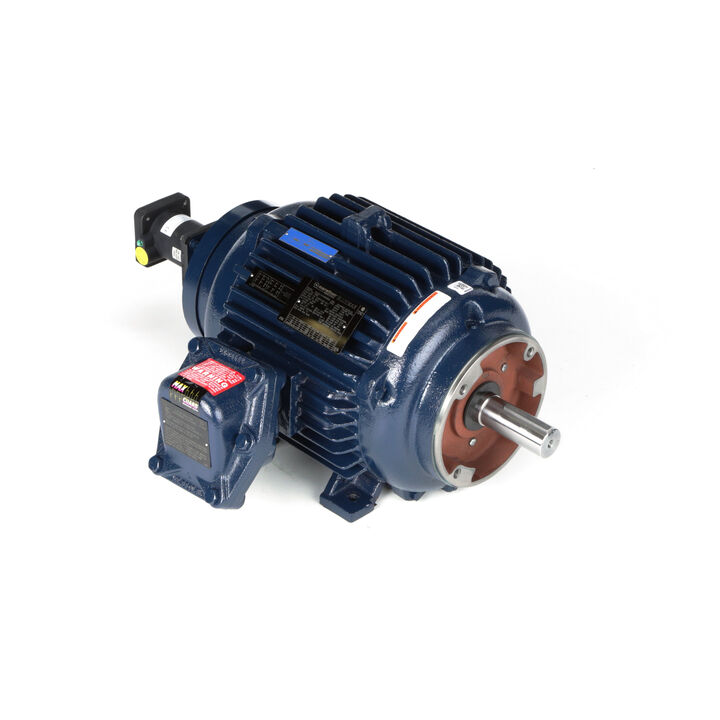

| Item | Vector Motor |
| Ambient Temp. | 40°C |
| Application | Crane |
| Base | Rigid |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Bearings | Ball |
| Color | Blue |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 91.7% |
| Efficiency Group | Premium |
| Encoder Acceptable | Yes |
| Encoder Shaft | 1" |
| Finish | Blue |
| Frame | 254TC |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 22/11A |
| Hazardous Location Class | 1C, D/2F, G |
| Hp | 7 1/2 hp |
| Includes | Bei H38 Explosion Proof Encoder 1024 PPR |
| Insulation Class | Class F |
| Insulation Feature | Max Guard |
| Max. Operating Frequency | 120 Hz |
| Max. Rpm | 1800 RPM |
| Motor Application | Crane |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1782 RPM |
| Nema Design | A |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 30 3/16" |
| Phase | 3 |
| Service Factor | 1 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 3 3/4" |
| Speed Ratio | 2000:1 |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 3 yrs. |
| Cc Number | CC003A |
| Ins. Class | Class F |
| Max. Speed | 1800 RPM |
| Motor Bearings | Ball |
| Standards | CL I GR C&D, CL II GR E, CSA CERTIFIED (LR47504), F&G, UL LISTED (E12044) |
| Weight | 344 lbs. |
| Ship weight (kg) | 154.8 |
| Ship height (cm) | 51.84 |
| Ship length (cm) | 88.9 |
| Ship width (cm) | 66.04 |
| HS code | 8501524000 |
| Country of Origin | US |
