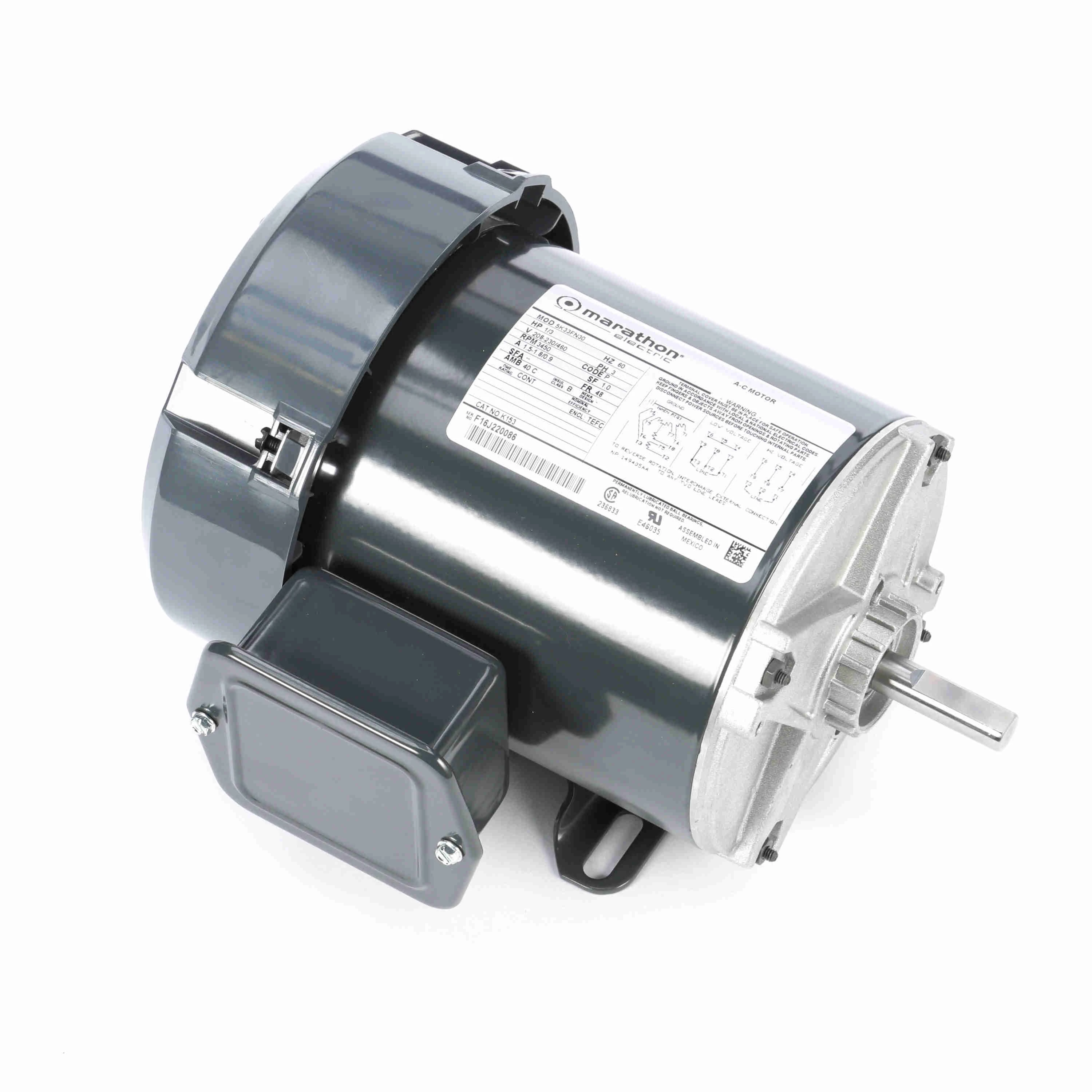

| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Duty Cycle | Continuous |
| Efficiency | 59.5% , 61% |
| Efficiency Group | Standard |
| Frame | 48 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.8-1.5/0.9A |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Inverter Rated | No , Yes |
| Length Less Shaft | 8 11/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | All Angle , Horizontal |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 10.187" |
| Phase | 3 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.0 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Warranty | 1 yr. |
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 38.46 |
| Ship width (cm) | 25.88 |
| HS code | 8501514040 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Hz | Length Less Shaft | Motor Shaft Design | Nameplate RPM | Nominal Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
143TTFR5376 | 143T | 3.2-3.2/1.6 | 3/4 | 50/60 | 10 1/16" | Keyed | 1145 | 74% | £611.24 | |
 |
5K32GN30 | 48 | 1.3-1.4/0.7 | 1/4 | 60 | 8.437" | Flat | 1725 | 62% | £374.63 |
