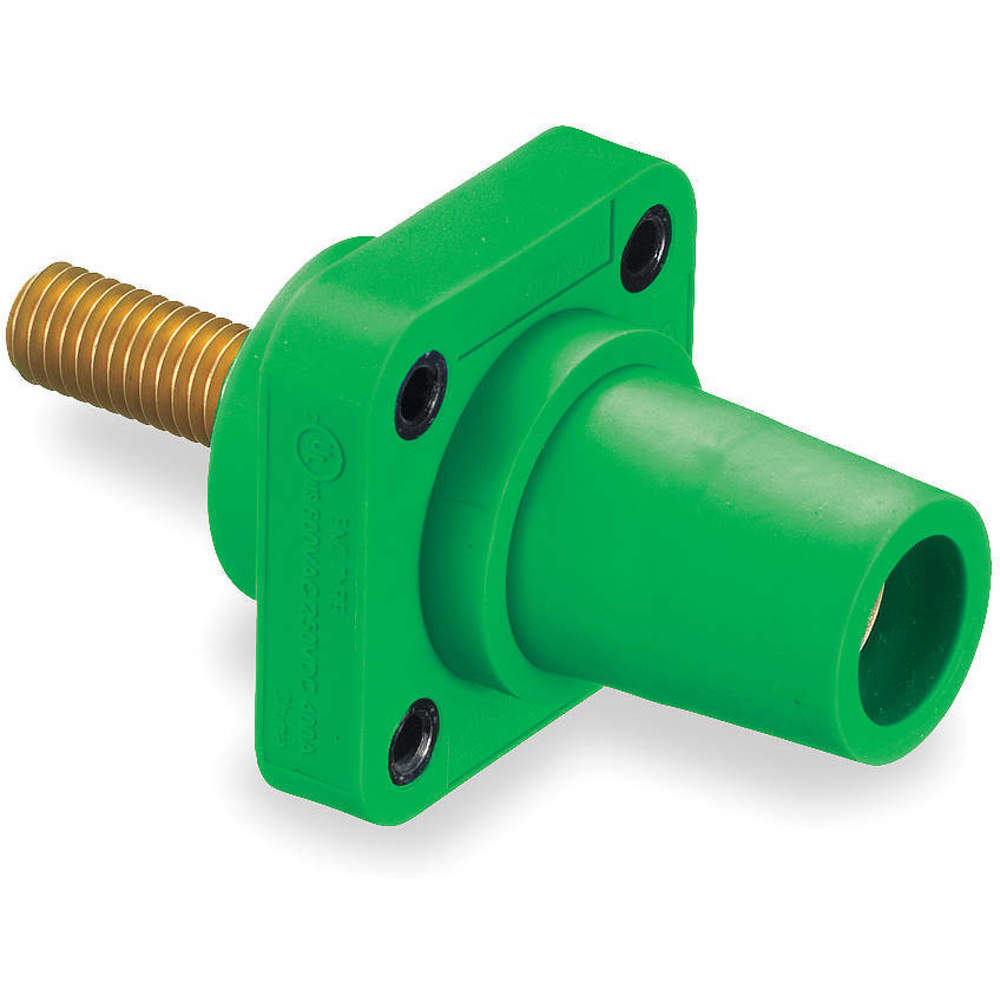

| Item | Single Pole Connector |
| Amps | 400A |
| Cable Range | 0.46" to 1.02" |
| Color | Green |
| Conductor Material | Brass |
| Exposure Conditions | Indoor Dry |
| Male/female | Female |
| Material | Elastomer |
| Mounting Style | Panel |
| Nema Rating | NEMA 3R, NEMA 4X, NEMA 12K |
| Number Of Poles | 1 |
| Number Of Wires | 1 |
| Phase | 1 |
| Single Pole Device Style | Taper Nose |
| Terminal Connection Type | Stud |
| Type | Single Pole Device |
| Wattage | 240000 W |
| Wire Size | #4 AWG to #4/0 AWG |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Current Rating | 400A |
| End Type | Taper Nose |
| Flange Shape | Square |
| Housing Color | Green |
| Housing Material | Thermoplastic Elastomer |
| Mounting Location | Panel |
| Nema Enclosure Rating | NEMA 3R, NEMA 4X, NEMA 12 |
| Overall Length | 4.1" |
| Overall Width | 2 1/5" |
| Receptacle Gender | Female |
| Receptacle Gender | For Male Plugs |
| Standards | ANSI/NFPA 70, CUL LISTED, NATIONAL ELECTRIC CODE (NEC), UL ENCLOSURE TYPES 3R, 4X, 12, UL LISTED |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 600V AC/250V DC |
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 5.59 |
| HS code | 8536490065 |
| Country of Origin | CN |
