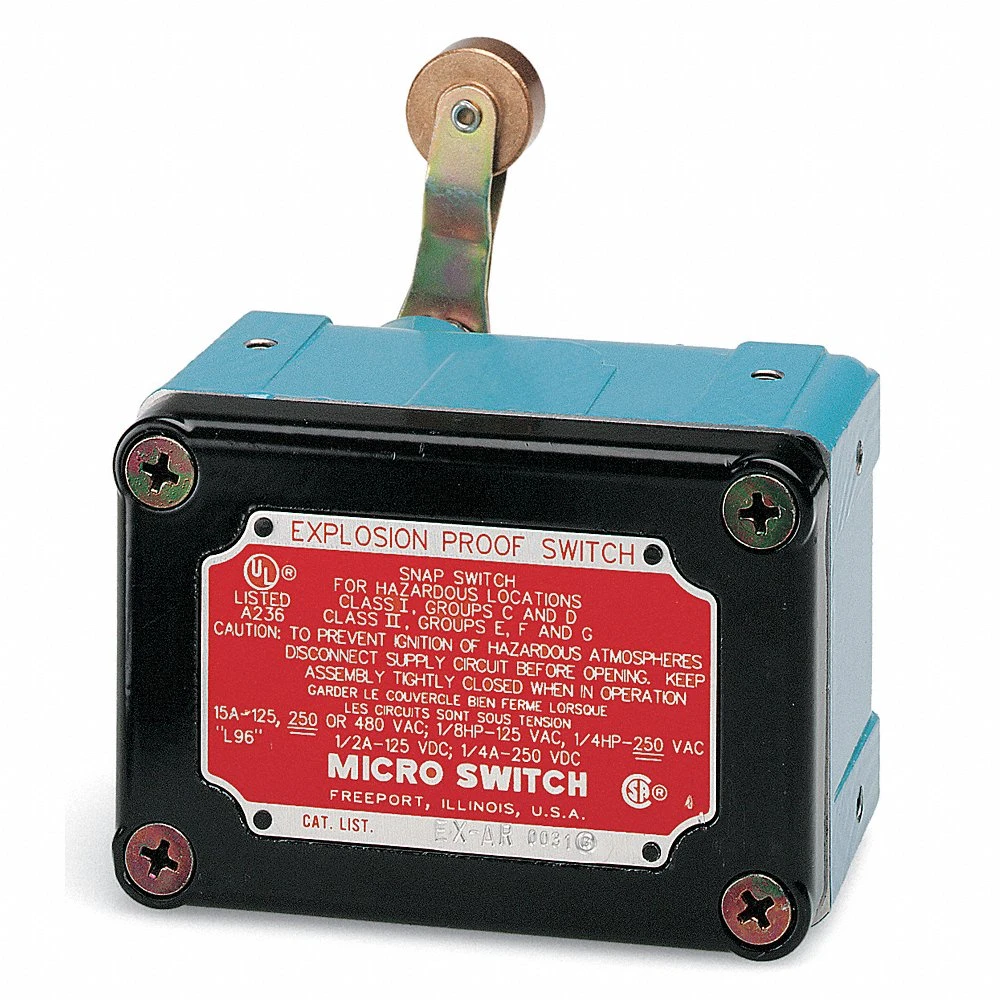

Item | Explosion Proof Limit Switch |
Actuator Length | 1 1/2" |
Actuator Length - Limit Switch | 1 1/2" |
Actuator Location | Side |
Actuator Style | Rotary Lever Arm |
Actuator Style - Limit Switch | Roller Lever, Rotary |
Basic Actuator Style | Rotary |
Basic Actuator Style (limit Switch) | Rotary |
Body Height - Limit Switch | 2 14/25" |
Body Material | Aluminum |
Body Style | Miniature |
Body Style - Limit Switch | Miniature |
Body Width | 2.78" |
Boot Sealed Actuator | No |
Boot Sealed Actuator - Limit Switch | No |
Certification | ATEX, IEC EX, DIV. 1, & 2, Class I, Groups C, & D; DIV. 1 & 2, Class II, Groups, E, F, & G; II 2 G, EEX D IIB + H2 T6 |
Current Rating - Nominal | 15A |
Depth | 2.02" |
Electrical Connection | Screw Terminals |
Head Action | Spring Return, Standard |
Height | 2 14/25" |
Ip Rating | No IP Rating |
Limit Switch Style | Explosion Proof Limit Switch |
Mounting - Limit Switch | Surface |
Mounting Hole Spacing - Limit Switch | 2.06" |
Movement | CW |
Operating Force | 0.75 lbs. |
Operating Temp. Range | -40°F to +160°F |
Operator Configuration | Standard |
Over Travel Length | 90° |
Pre-travel Length | 0.219" |
Roller Dia. | 3/4" |
Roller Width | 1/4" |
Stem Thread - Limit Switch | No Stem |
Width | 2.78" |
Ac Contact Rating | 10A @ 250V |
Actuator Type | Roller Lever |
Body Configuration | Non Plug In |
Body Depth | 2.02" |
Body Height | 2.56" |
Contact Form | SPDT-1NO/1NC |
Dc Contact Rating | 0.15 A @ 250 V |
Directional Movement | CW |
Environments & Applications | Hazardous Location Rated |
Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G |
Mounting Hole Horizontal Center To Center Distance | 52 mm |
Mounting Style | Surface |
Nema Enclosure Rating | NEMA 1, NEMA 7, NEMA 9 |
Number Of Mounting Holes | 2 |
Operating Temperature - Maximum | 160°F |
Operating Temperature - Minimum | -40°F |
Overtravel | 90° |
Pretravel | 0.22" |
Roller Diameter | 3/4" |
Series | EX Series |
Standards | ATEX, CE, CSA, IEC EX. INMETRO, UL LISTED |
Ship weight (kg) | 0.72 |
Ship height (cm) | 10.16 |
Ship length (cm) | 14.99 |
Ship width (cm) | 7.87 |
HS code | 8536509055 |
Country of Origin | US |
