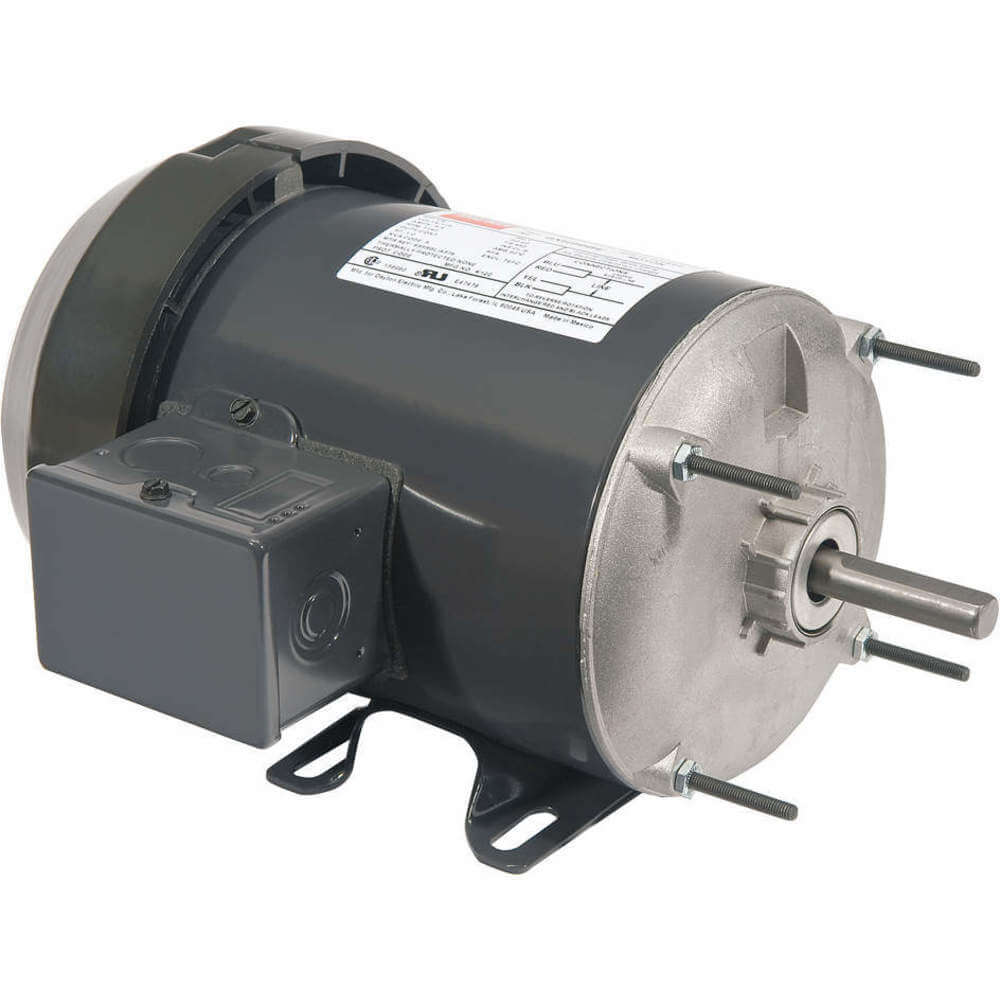

Item | General Purpose Motor |
Bearings | Ball |
Duty | Continuous |
Frame | 48Z |
Frame Material | Rolled Steel |
Full Load Amps | 4.4 |
HP | 1/6 |
Hz | 60 |
Insulation Class | B |
Length Less Shaft | 9 11/16" |
Max. Ambient Temp. | 40 Degrees C |
Motor Application | General Application |
Motor Design | Split-Phase |
Motor Enclosure Design | Totally Enclosed Fan-Cooled |
Motor Mounting Type | Cradle Base |
Motor Shaft Design | Flat |
Motor Shaft Rotation | CW/CCW |
Motor Thermal Protection | None |
Mounting | Cradle Base |
Nameplate RPM | 1140 |
Number of Speeds | 1 |
Overall Length | 11 9/16" |
Phase | 1 |
Rotation | CW/CCW |
RPM Group | 1101-1200 |
RPM Range | 1101-1200 |
Service Factor | 1.00 |
Shaft Dia. | 1/2" |
Shaft Length | 1.875" |
Voltage | 115 |
Warranty | 1 Years |
Ship weight (kg) | 8.55 |
Ship height (cm) | 25.91 |
Ship length (cm) | 34.8 |
Ship width (cm) | 22.86 |
HS code | 8501404040 |
Country of Origin | MX |
Product | Model | Hz | Capacitor Required | Efficiency Group | Insulation Class | Inverter Rated | Length Less Shaft | Max. Ambient Temp. | Motor Design | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
2TJ12 | 60 | - | - | F | - | 14 11/16" | 40 Degrees C | Capacitor-Start | £1,244.27 | ||
5GD60 | 60 | - | - | B | - | 10" | 40 Degrees C | Capacitor-Start | £530.56 | ||
5K596BE | 60 | - | - | F | - | 9 10/16" | 40 Degrees C | Split-Phase | £374.47 | ||
5K618BE | 60 | - | - | B | - | 9 14/16" | 40 Degrees C | Split-Phase | £431.69 | ||
5K968 | 60 | - | - | F | - | 14 11/16" | 40 Degrees C | Capacitor-Start | £1,739.54 | ||
5PHA7 | 60 | - | - | B | - | 10 11/16" | 40 Degrees C | Capacitor-Start | £473.81 | ||
5UKH0 | 60 | - | - | F | - | 18.875" | 40 Degrees C | Capacitor-Start | £2,960.50 |
