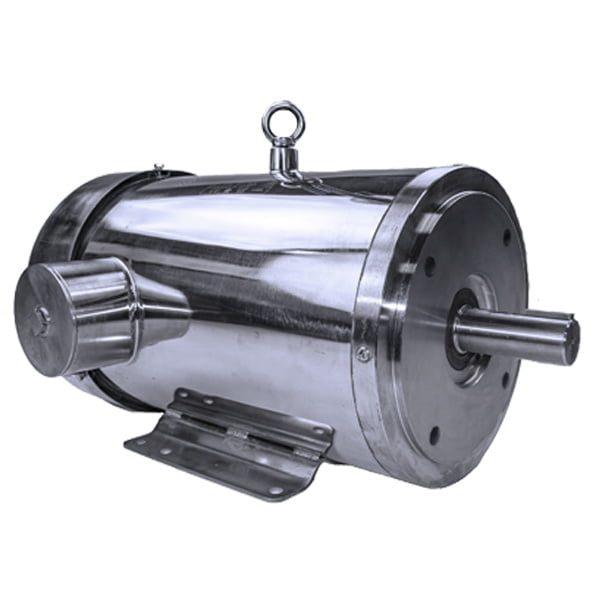

WORLDWIDE ELECTRIC SSPE12-12-56C Motor, 0.5 HP, 1200 RPM, 208-230/460V, 56C Frame, C-Face with Feet, Stainless Steel
Item: CJ8RLK
Model: SSPE12-12-56C
In Stock
£834.64/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Product Datasheet | worldwide-electric-lam1-5-12-182t.pdf |
|---|---|
| Breakdown Torque (bdt) | 270% |
| Connection Diagram | 9 Lead 2Y/Y |
| Degree Of Protection | IP69K |
| Duty Cycle | S1 |
| Efficiency 100% | 75.5% |
| Efficiency 75% | 76% |
| Efficiency At 50% | 69% |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| F1/f2 Suitable | Unsuitable |
| Frame Size | 56C |
| Full Load Amps @ 208v | 1.9A |
| Full Load Rpm | 1155 RPM |
| Full Load Torque | 2.2 lbs.-ft. |
| Grease Type | Mobil Polyrex EM |
| Hp | 5/10 hp |
| Insulation Class | Class F |
| Locked Rotor Amps @ 230v | 20A |
| Locked Rotor Amps @ 460v | 10A |
| Locked Rotor Time (hot) | 12 sec. |
| Locked Rotor Torque | 2.55 |
|---|---|
| Max. Ambient Temp. | 40°C |
| Max. Elevation | 3300 ft. |
| Moment Of Inertia | 0.088 lbs.-sq. ft. |
| Mounting Type | C Face With Feet |
| Nema Code Letter | R |
| Nema Design | B |
| Number Of Starts/hr | 12 |
| Phase | 3 |
| Pole | 6 |
| Power Factor 100% | 63% |
| Rotation | Bidirectional |
| Rpm | 1200 RPM |
| Service Factor | 1.15 |
| Slip | 3.75% |
| Sound Pressure Level | 55 dBA |
| Temp. Rise (c) | 80°C |
| Terminal Box Location | F1 |
| Voltage | 230/460V |
