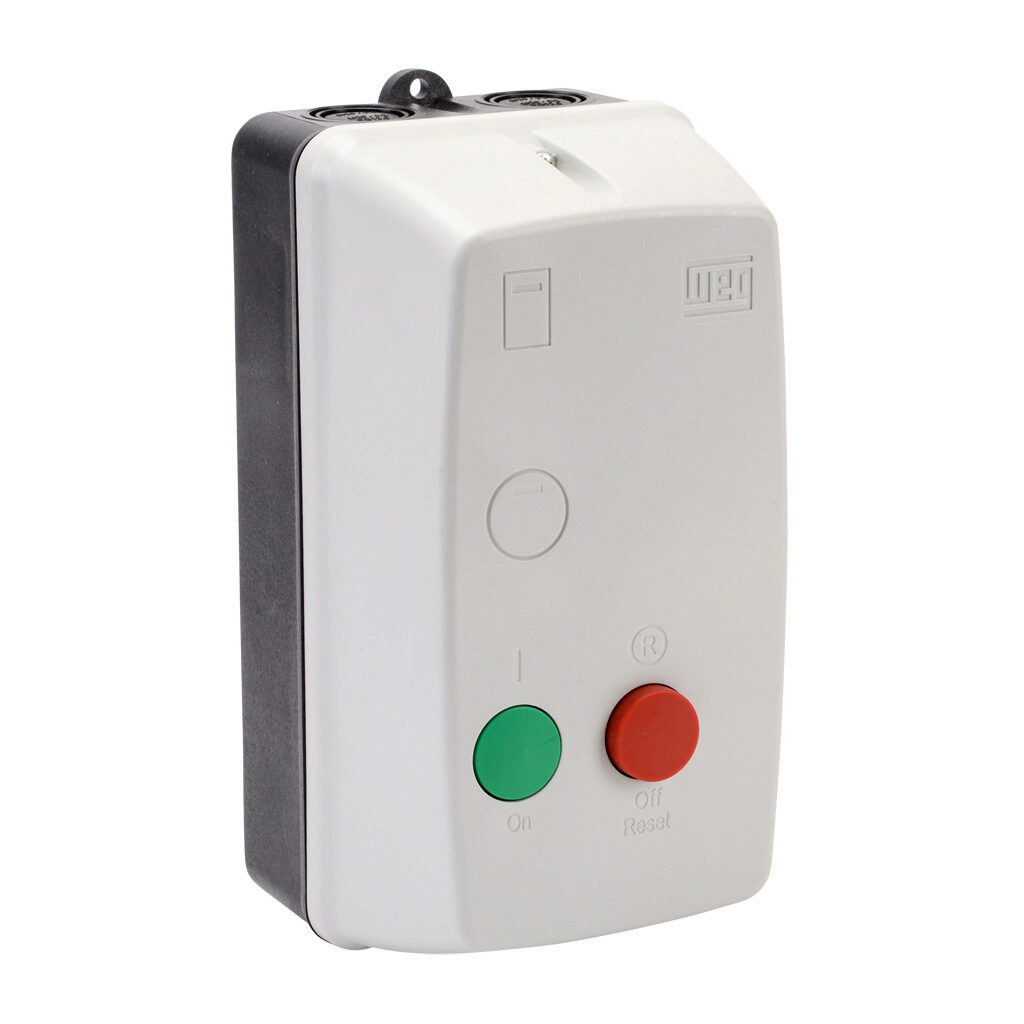

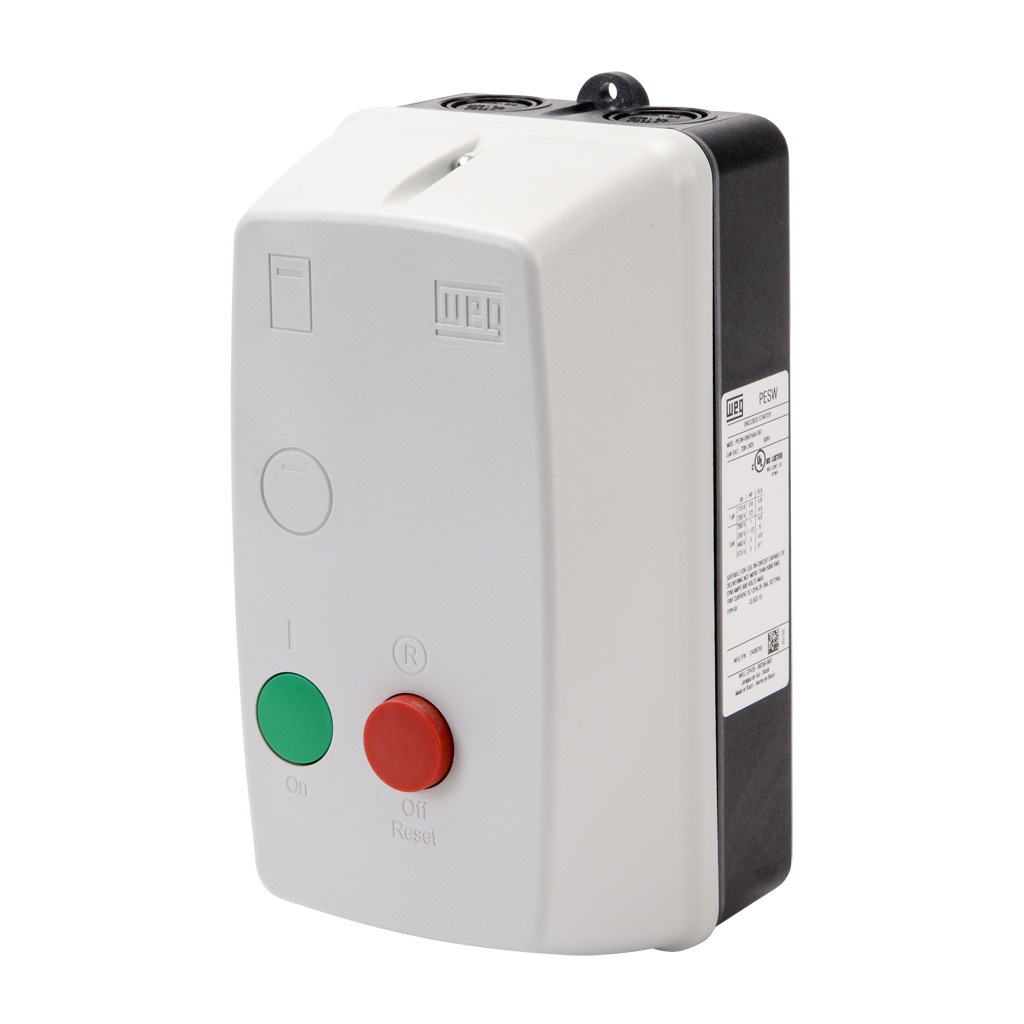

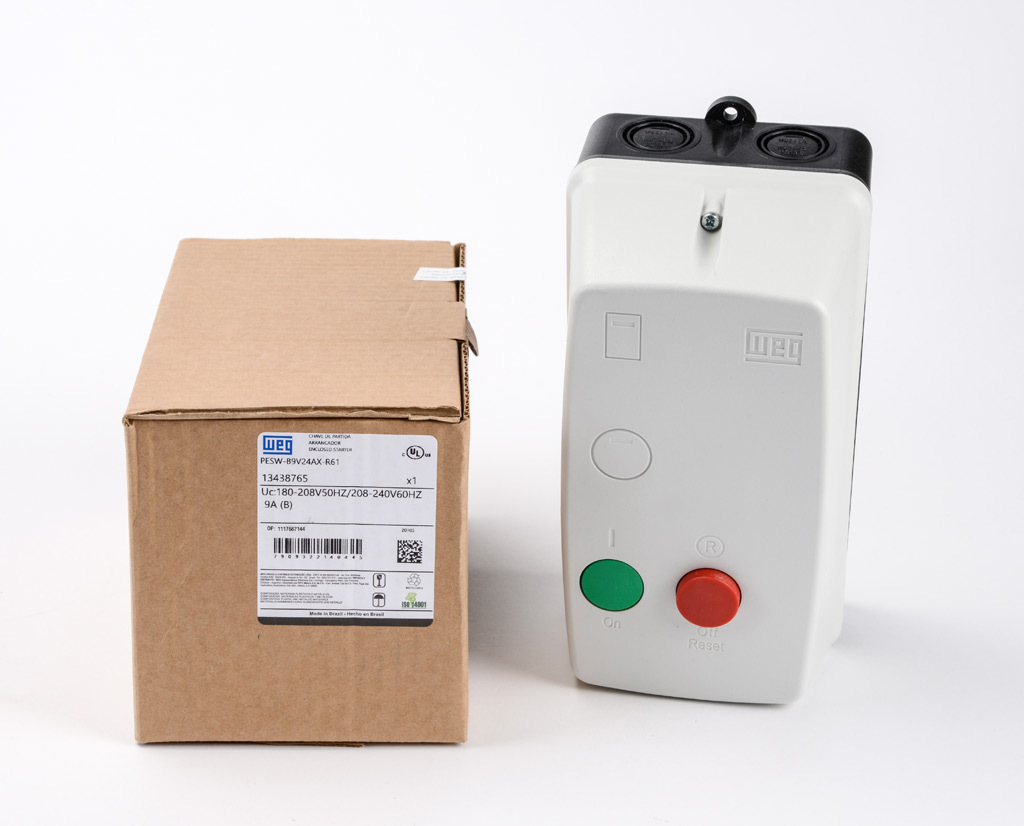

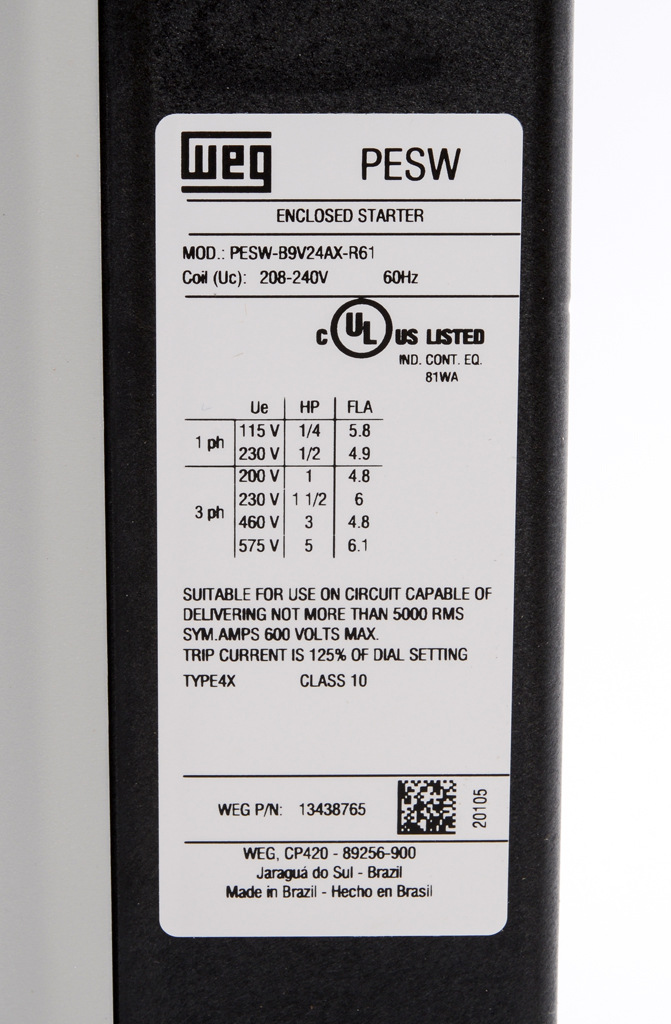

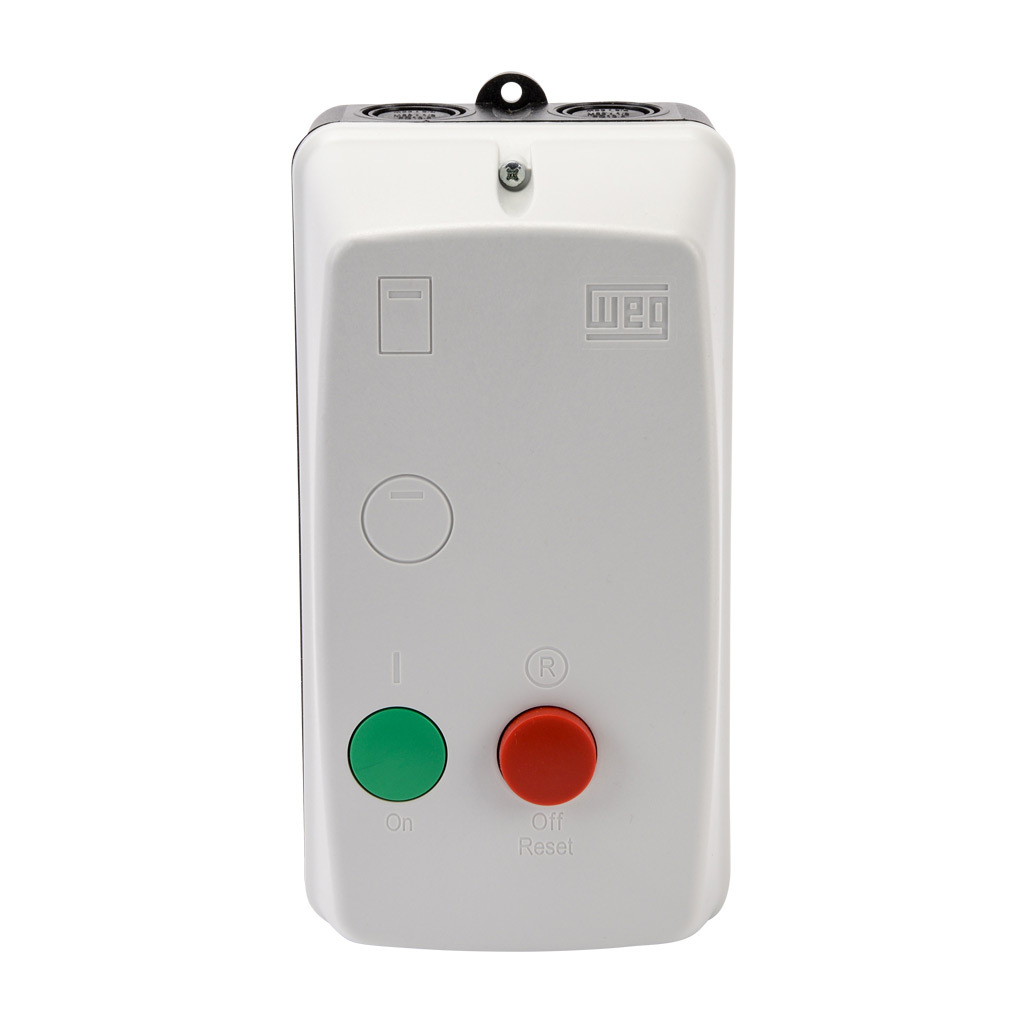

WEG PESW-B9V24AX-R61 13438765 Enclosed Starter, 3 Phase, 9A Rated, 4-6.3 A Range, On/Off Control, Plastic Crate, 180-208V50HZ/208-240V60HZ

Item: BD3JJB
Model: PESW-B9V24AX-R61
In Stock

Get it by Wednesday, Apr 15

We deliver to your doorstep under DAP terms. Customs clearance is for your account

Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Amps 9A
Amps Rating 9A
Assembly Method Plastic Crate
Assembly Method (start Key) Plastic Crate
Auxiliary Contacts NO/NC
Coil Frequency 50/60 Hz
Coil Voltage 180-208/208-240V AC
Connection Type Screw Terminal
Control Voltage 180-208/208-240V
Enclosure Type NEMA 4/4X , NEMA 4X
Frequency 60/50 Hz
Full Load Amperage Range 4-6.3A
Horsepower Rating 3 hp
Hp 1 hp, 1 1/2 hp, 3 hp, 5 hp
Includes Start, Stop and Reset Pushbuttons
Mounting Wall
Number Of Poles 3
Overload Type Bi-Metallic
Phase 3
Phase Loss Sensitive Yes
Power Poles NO
Rated Operational Voltage 600V
Sccr Rating 5 kA
Series PESW Series
Start Type Direct Three Phase
Starter Type Non Combination
Trip Class Class 10
Voltage 200/230/460/575V AC
Voltage Rating 600V AC
Button Color Not Specified
Button Type Unspecified
Control Devices A On Off Button
Degree Of Protection NEMA 4X
Maximum Power Rating Not Applicable
Measuring Tool And Accessories Not Applicable
no. of phases 3
over load 4-6.3A
rated amps (ac-3) 9A (CWB9)
Reference PESW
Starters Complements Does Not Contain

Product Details

Magnetic Motor Starter

Shipping Information

height 15.24
length 29.46
width 16.51
country of origin BR
weight 1.026000
