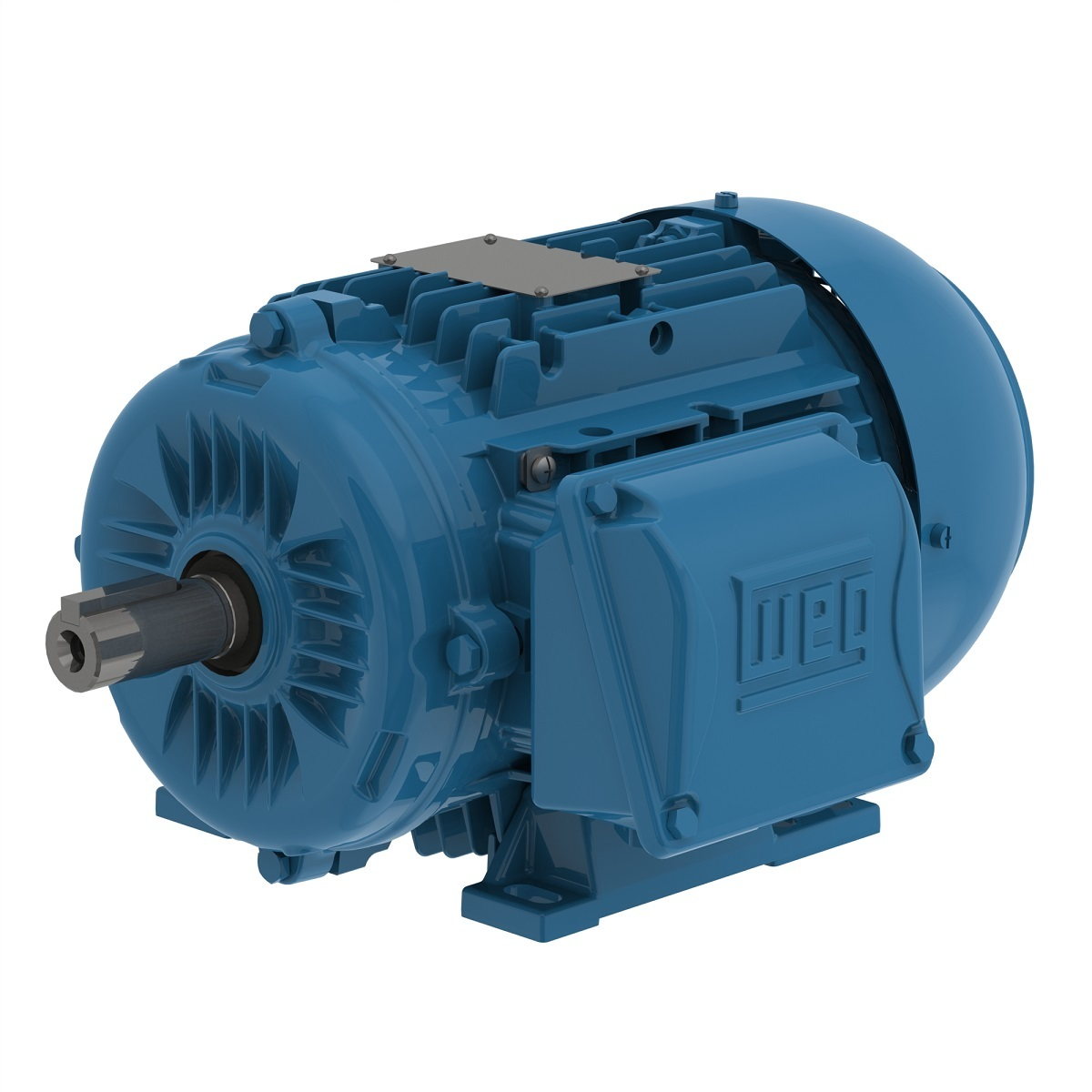

WEG .7518ET3EAL90S/L-W22 13983068 General Purpose Motor, Aluminum 90S/L Frame, 1 HP, 1760 RPM, 230/460 V Without Bearing Cap

Item: BB9EAZ
Model: .7518ET3EAL90S/L-W22
In Stock

Get it by Thursday, Apr 16

£334.67/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Frame 90S/L
Phase 3
Replaces .7518EP3EAL80
Rpm 1800 RPM
Voltage 208-230/460V
Altitude 1000 m.a.s.l.
Ambient Temp. -20°C to +40°C
Balancing Method 1/2 Key
Bearing Cap No
break-down torque 360%
Cold Locked Rotor Time 39s
Connection Cables Quantity 9
De Bearing Seal V Ring
Degree Of Protection IP55
Design N
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Enclosure Rating IC411
Enclosure Type TEFC
Fan Cover Material Steel
Fan Material Plastic
Flange Without
Frame Material Aluminum
Frequency 60 Hz
Grade Grade 316
Grounding Lugs Type Single
Impregnation Method Dip And Bake Polyester
Insulation Class F
l. r. amps 23.8/11.9A
locked rotor time (hot) 22s
Locked Rotor Torque 280%
Lrc 8
Main Terminal Box Hole 2 x M25 x 1.5
Material Stainless Steel
moment of inertia 0.1163 lbs.-sq. ft.
Mounting Foot-Mounted, B3L(E)
Nde Bearing Seal V Ring
no load amps 1.9/0.95A
No. Of Poles 4
Noise Level 49 dBA
Output Rating 0.75 kW
Overload Protector (phenolic) Without Overload Protector
Painting Only Primer
rated amps 2.98/1.49A
Rated Speed 1760 RPM
Rated Torque 2.98 lbs.-ft.
Rated Voltage 230/460V
Rotation CW And CCW
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Slip 2.22%
Standard Logo nema.png
Starting Method Direct On Line
Synchronous Speed 1800 RPM
temp. rise 80 K
Terminal Block BMC 6 Pins
Terminal Box Right Position
Tropicalized Painting Without
Voltage 230/460/380-415V

Product Details

Shipping Information

Height 2.54
Length 32.9
Width 2.54
Country Of Origin BR
Weight 18.000000
