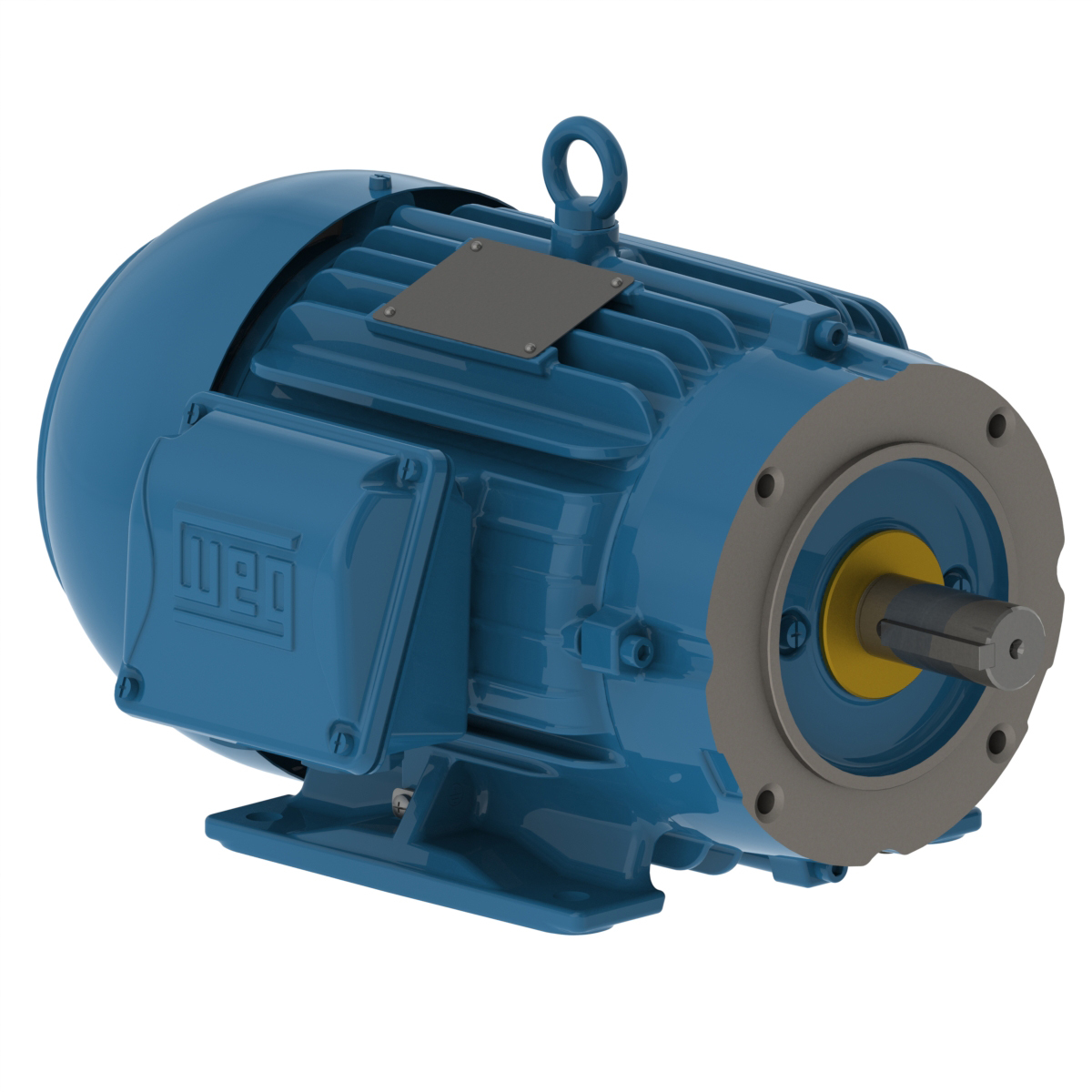

WEG 00312ST3HIE213TC-W22 11433788 Severe Duty Motor, 3 HP, 6 Poles, 213TC Frame, 3 Phase, 575 V, 60 Hz, IC411-TEFC, Foot Mounted

Item: BB6ZXJ
Model: 00312ST3HIE213TC-W22
In Stock
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Horsepower 3 hp
Product Datasheet weg-00312st3hie213tc-w22.pdf
Altitude 1000 m.a.s.l.
Ambient Temp. -20°C to +40°C
Balancing Method 1/2 Key
Bearing Cap Yes
Bearing Cap Yes- Bearing Cap
Bolt Material Carbon Steel
break-down torque 2.7
break-down torque 270%
Cold Locked Rotor Time 104s
Connection Cables Quantity 3
De Bearing Seal Inpro/Seal
De Bearing Seal Inpro, Seal
Degree Of Protection IP56
Design B
Drain Type T, Threaded
Drip Cover Without
Duty Cycle Cont.(S1)
Efficiency 100% 89.5%
Efficiency 50% 86.5%
Efficiency 75% 88.5
Enclosure IC411-TEFC
Enclosure Rating IC411
Enclosure Type TEFC
Fan Cover Material Cast Iron
Fan Material Conductive Plastic
Flange C
Foot Flatness 0.127 mm
Frame 213TC
Frame Material Cast Iron
Frequency 60 Hz
Grade Grade 1010/20
Grounding Lugs Type Double
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
Insulation Class F
Joints Seal Molykote
l. r. amps 24.7A
locked rotor time (hot) 58s
Locked Rotor Torque 1.9
Locked Rotor Torque 190%
Lrc 7 x (Code K)
Lrc 7x(Code K)
Main Terminal Box Hole NPT 1"
Main Terminal Box Hole Size 1"
Main Terminal Box Hole Type NPT
Material Carbon Steel
Moment Of Inertia 1.20 lbs.-sq. ft.
moment of inertia 1.2 lbs.-sq. ft.
Mounting F-1
Mounting Foot-Mounted, F-1
Nde Bearing Seal Inpro/Seal
No Load Amps 24A
no load amps 2.04A
No. Of Poles 6
Noise Level 55 dBA
Output Rating 2.2 kW
Output Rating 3 hp
Overload Protector (phenolic) Without Overload Protector
Painting Only Primer
Power Factor 100% 0.70
Power Factor @ 50 % 0.50
Power Factor @ 75 % 0.63
rated amps 3.53A
Rated Speed 1175 RPM
Rated Torque 13.4 lbs.-ft.
Rated Voltage 575V
Regreasing System Stainless Steel, At Drive End And Non-Drive End
Rotation CW And CCW
Screw Cap Carbon Steel Sae 1010/20
Service Factor 1.25
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Slip 2.08%
Standard Logo sae.png
Starting Method Direct On Line
Synchronous Speed 1200 RPM
temp. rise 80 K
Terminal Block Without
Terminal Box Left Position
Terminal Box1 Left Position
Tropicalized Painting According To IEEE-841 (96H)
Voltage 575V

Product Details

Shipping Information

Weight 72.000000
