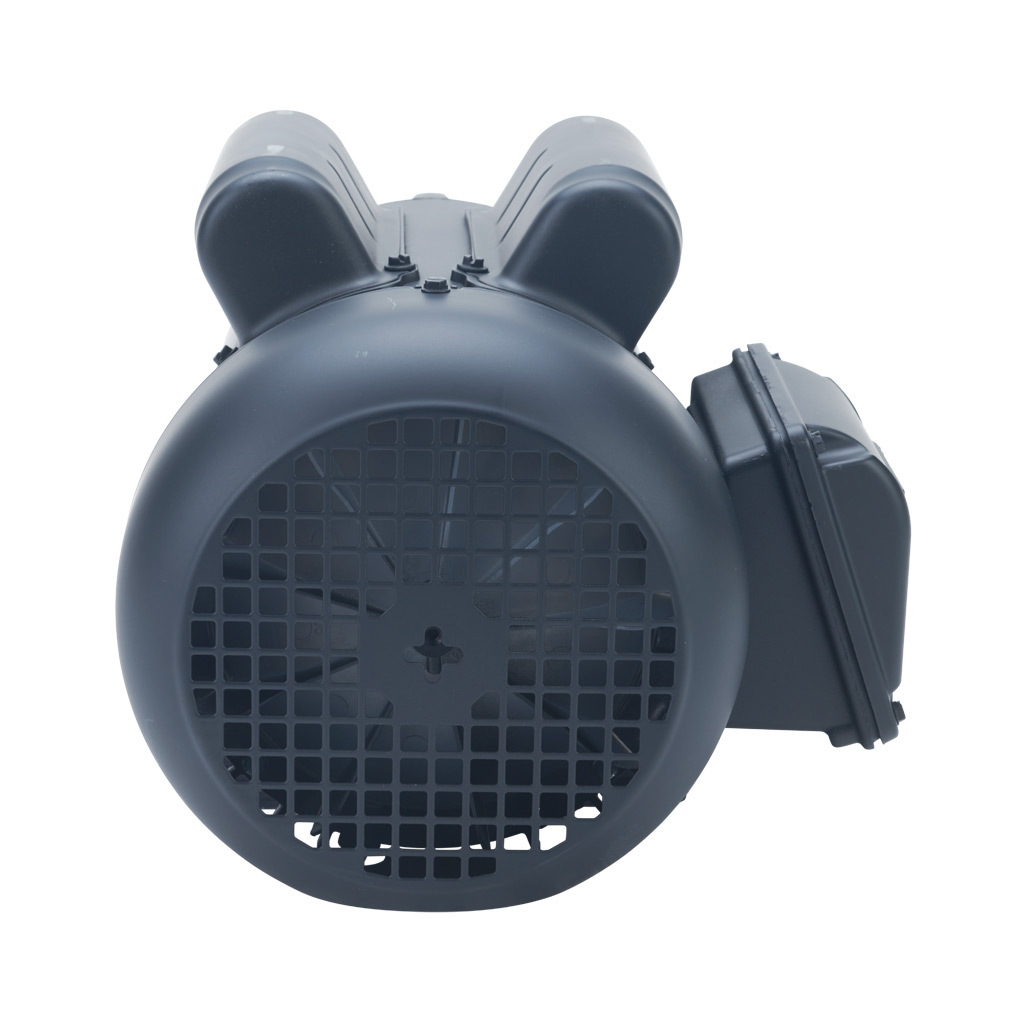

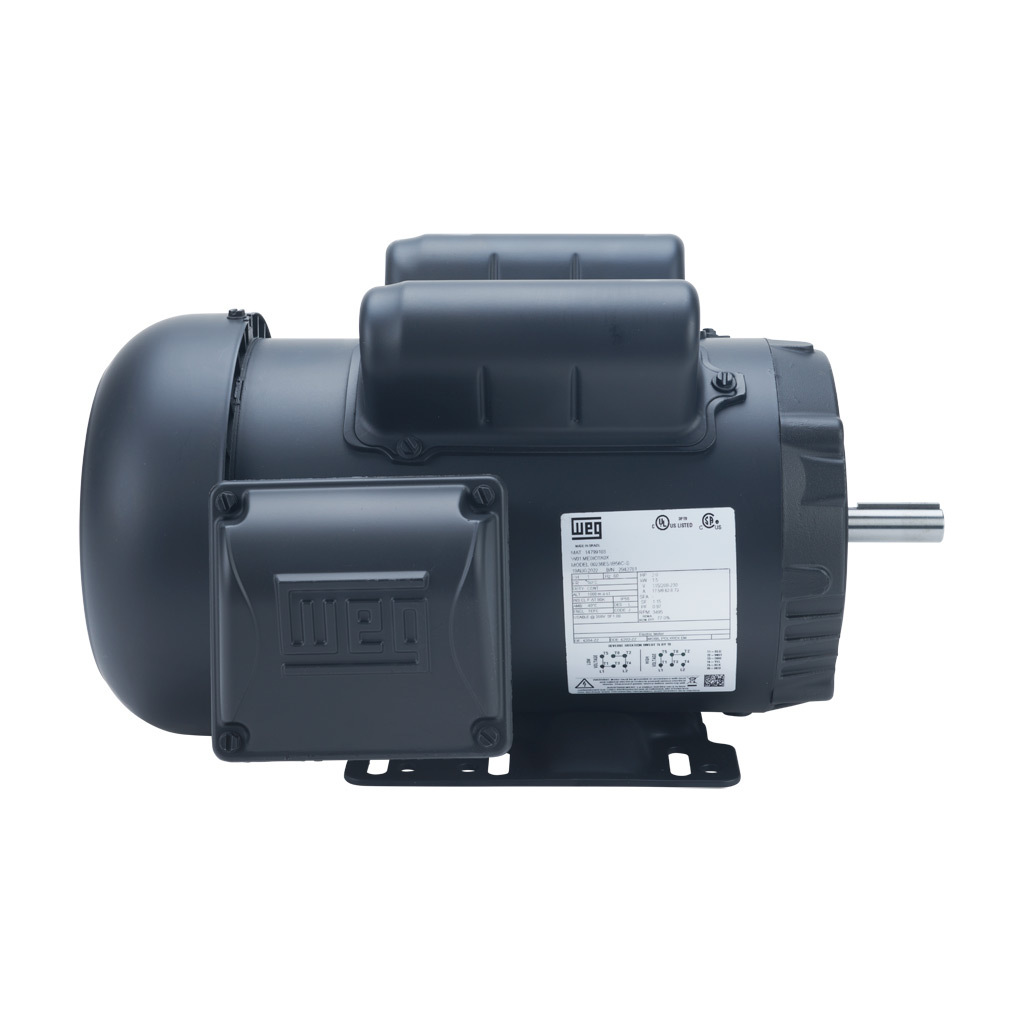

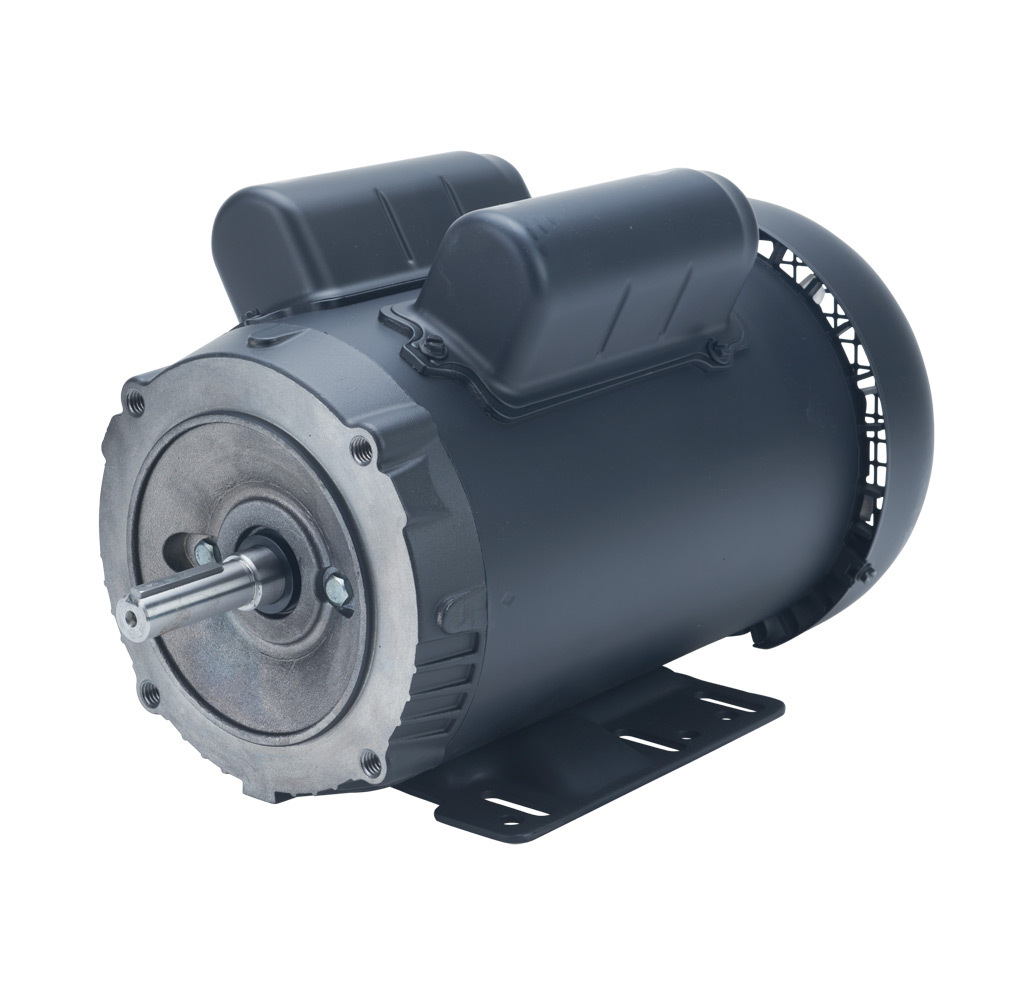

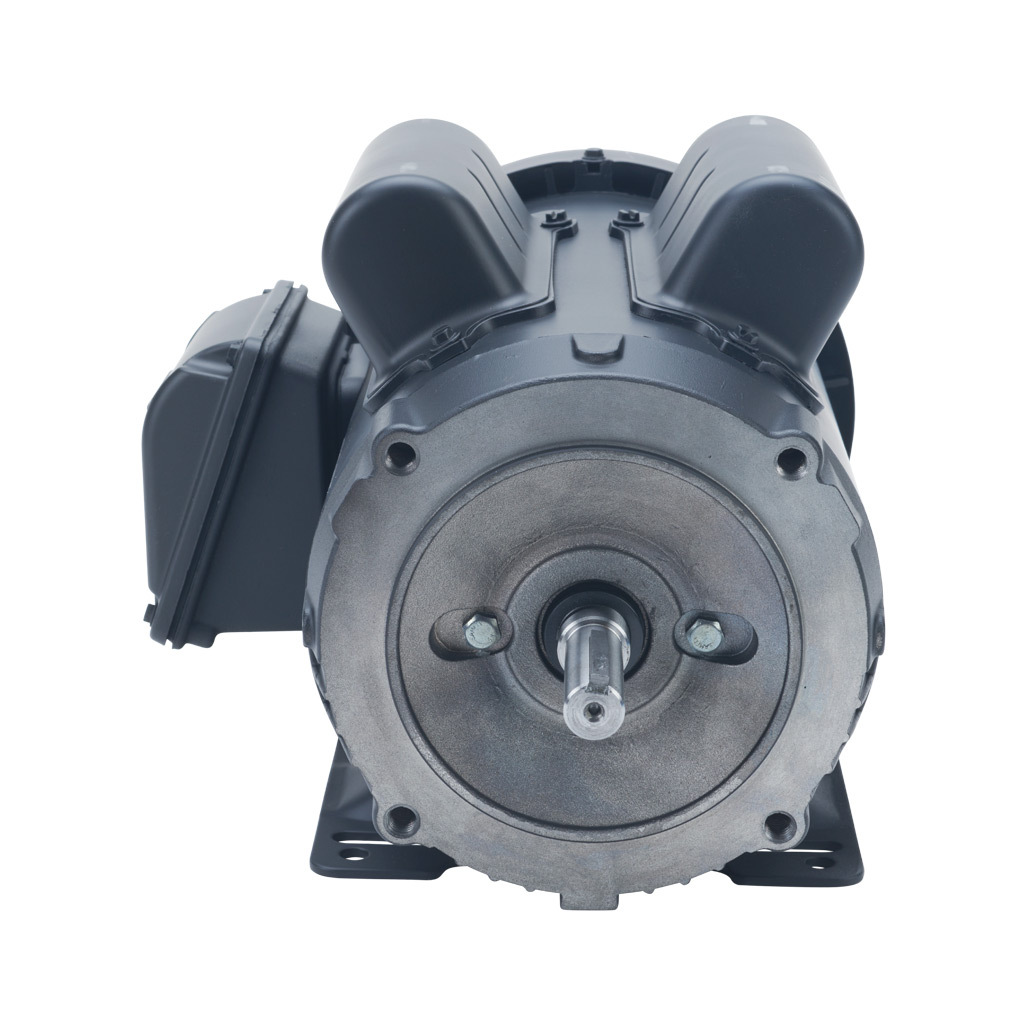

WEG 00236ES1B56C-S 14799103 General Purpose Motor, TEAO/TEFC RolLED Steel 56HC Frame, 2 HP, 3495 RPM, 115/208-230 V

Item: BB9VYM
Model: 00236ES1B56C-S
In Stock

Get it by ,

We deliver to your doorstep under DAP terms. Customs clearance is for your account

£970.91/unit (ex. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 250%
Breakdown Torque 250%
Cold Locked Rotor Time 10 sec.
Composition Steel
Design L
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 77%
Efficiency @ 100% 77%
Efficiency @ 50% 70%
Efficiency @ 75% 75%
Efficiency At 1 % 97%
Efficiency At 50 % 94%
Efficiency At 75 % 97%
Efficiency Group Standard Efficiency
Electrically Reversible Yes
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Polymer , Steel
Fan Material Plastic
Flange C
Flange Type C
Frame 56HC
Frame Material Rolled Steel
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 6 sec.
Hp 2 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
Integrated Brake No
Ip Rating IP55
L. R. Amps 136/75-68.1A
L.r. Amperes 68.1-75/136A
Locked Rotor Time 6 sec.
Locked Rotor Time (cold) 10 sec.
Locked Rotor Torque 220%
Lrc 7.8X(Code J)
Main Terminal Box Hole 0.881"
Main Terminal Box Hole Size 0.881"
Moment Of Inertia 0.0707 lbs.-sq. ft.
Moment Of Inertia (j) 0.0707 lbs.-sq. ft.
Motor Application General Purpose
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame 56HC
Motor Speed 3495 RPM
Motor Type Induction
Mounting F-1 , Foot Mounted
Mounting Orientation Horizontal, Vertical
Nameplate Rpm 3495 RPM
Nema Design Design L
No Load Amps 2.16-2.5/5A , 5/2.16-2.5A
No. Of Poles 2
Noise Level 68 dBA
Number Of Phases 1
Output 2 hp
Output Rating 2 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 1
Power Factor 50% 0.94
Power Factor 75% 0.97
Power Factor At 50 % 70
Power Factor At 75 % 75
Power Factor_100% 0.97
Rated Current 17.5/9.62-8.73A , 8.73-9.62/17.5A
Rated Speed 3495 RPM
Rated Torque 3.01 lbs.-ft.
Rated Voltage 115/208-230V , 115/208-230V AC
Resilient Base Without
Rotation CW/CCW
Rpm 3400-3600 RPM
Screw Cap Carbon Steel
Series S Series
Service Factor 1.15
Shaft Diameter 5/8"
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Shaft Type Round With Square Key
Slip 2.92%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 115/208-230V AC
Voltage Rating 115/208-230V AC
Voltage Type AC
Balancing Method 1/2 Key
Cold Locked Rotor Time 10s
De Bearing Seal V Ring
Degree Of Protection IP55
Enclosure Rating IC411
Grade Grade 1010/20
Grounding Lugs Type Single
locked rotor time (hot) 6s
Material Carbon Steel
Nde Bearing Seal No
Overload Protector (phenolic) Without Overload Protector
Painting Only Primer
Standard Logo sae.png
Voltage 115/208-230V

Product Details

Electric Motor

Shipping Information

height 25.4
length 36.31
width 25.4
country of origin BR
weight 18.657000
