WEG

See our 858 reviews on trustpilot

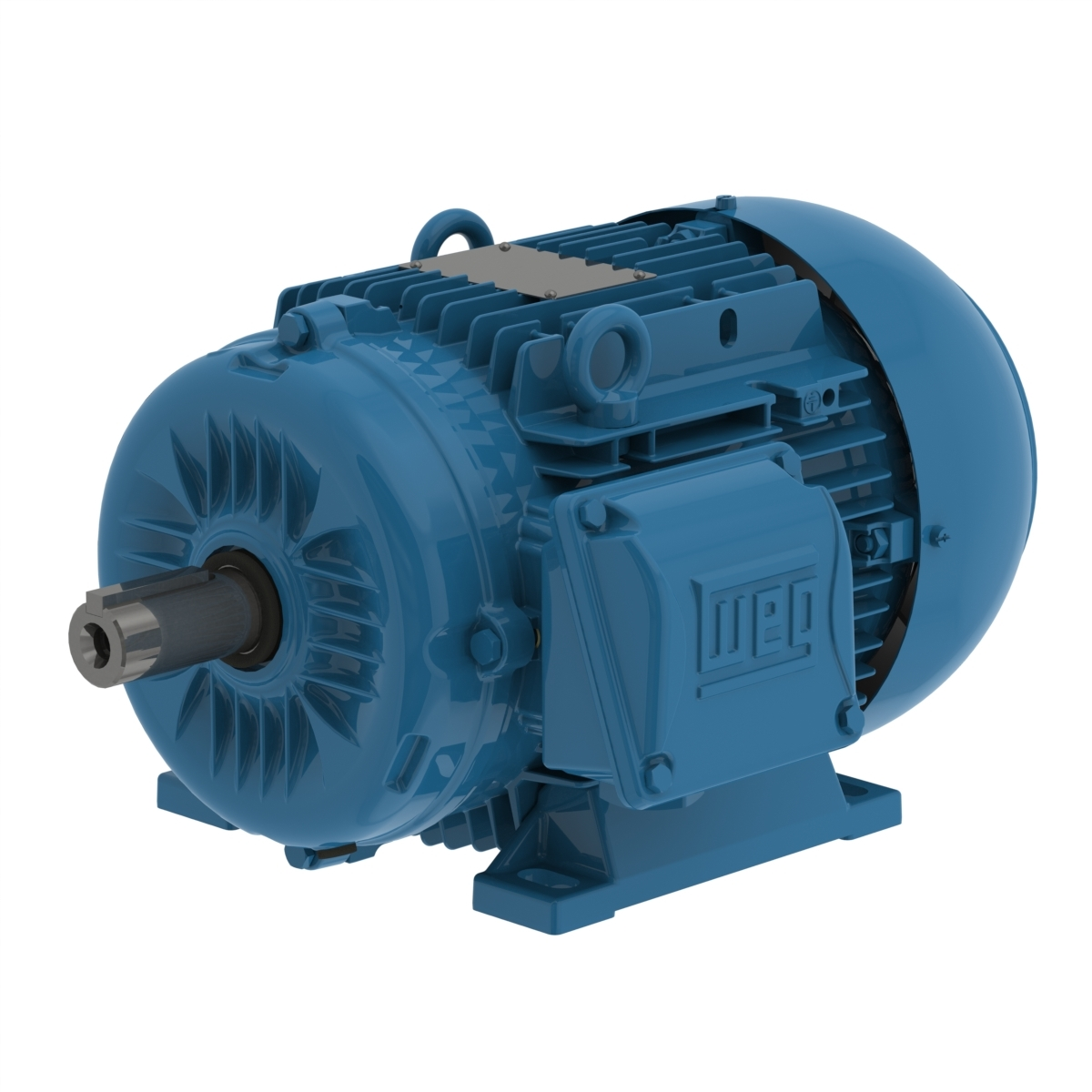

WEG 00212ET3EAL132S-W22 14428448 General Purpose Motor, Aluminum 132S Frame, 3 HP, 1175 RPM, 230/460 V

Item: BC2DEX
Model: 00212ET3EAL132S-W22
In Stock

Get it by Thursday, Apr 16

£995.45/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Frame 132S
Hp 2 3/5 hp
Phase 3
Rpm 1000/1200 RPM
Voltage 230/460/190/380V AC
Altitude 1000 m.a.s.l.
Ambient Temp. -20°C to +40°C
Balancing Method 1/2 Key
Bearing Cap No
break-down torque 310%
Cold Locked Rotor Time 90s
Connection Cables Quantity 9
De Bearing Seal V Ring
Degree Of Protection IP55
Design N
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Enclosure Rating IC411
Enclosure Type TEFC
Fan Cover Material Steel
Fan Material Plastic
Flange Without
Frame Material Aluminum
Frequency 60 Hz
Grade Grade 316
Grounding Lugs Type Single
Impregnation Method Dip And Bake Polyester
Insulation Class F
l. r. amps 53.7/26.9A
locked rotor time (hot) 50s
Locked Rotor Torque 180%
Lrc 6.1
Main Terminal Box Hole 2 x M32 x 1.5
Material Stainless Steel
moment of inertia 1.17 lbs.-sq. ft.
Mounting Foot-Mounted, B3L(E)
Nde Bearing Seal V Ring
no load amps 5.6/2.8A
No. Of Poles 6
Noise Level 55 dBA
Output Rating 2.2 kW
Overload Protector (phenolic) Without Overload Protector
Painting Only Primer
rated amps 8.81/4.41A
Rated Speed 1175 RPM
Rated Torque 13.4 lbs.-ft.
Rated Voltage 230/460V
Rotation CW And CCW
Service Factor 1.25
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Slip 2.08%
Standard Logo nema.png
Starting Method Direct On Line
Synchronous Speed 1200 RPM
temp. rise 80 K
Terminal Block BMC 6 Pins
Terminal Box Right Position
Tropicalized Painting Without
Voltage 230/460/190/380V

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Weight 58.950000
