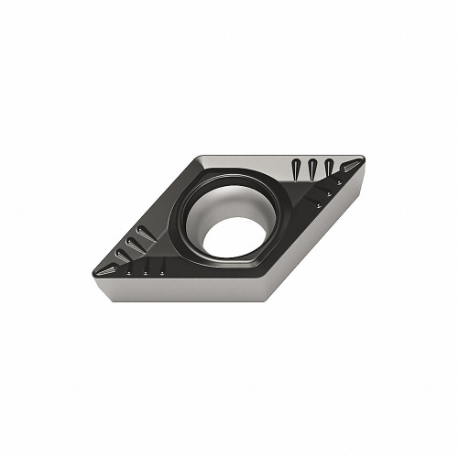

WALTER TOOLS DCMT070204-RM4 WMP20S 6461851 Diamond Turning Insert, Neutral, 3/32 Inch Thick, 1/64 Inch Corner Radius
Item: CU9TFL
Model: DCMT070204-RM4 WMP20S
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
370 sfm to 570 sfm
0.005" to 0.008"
5.00% off
₹21.030000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ansi Code | DCMT2(1.5)1-RM4 WMP20S |
|---|---|
| Chip-breaker | Yes |
| Chip-breaker Code | RM4 |
| Clearance Angle | 7° |
| Corner Radius | 1/64" |
| Cutting Application | Turning |
| Cutting Depth | 0.4 mm to 2 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 7.75 mm |
| Finish - Machining | Ticn+Al2O3+Ticn |
| Included Angle | 55° |
| Inscribed Circle | 1/4" |
| Insert Code | DCMT21.51 |
| Insert Holding Angle | 40° to 60.0° |
| Insert Holding Type | 40° To 60° Countersink Hole |
| Insert Style | DCMT |
| Iso Number | DCMT070204-RM4 WMP20S |
| Manufacturer Grade | WMP20S |
| Material | Carbide |
|---|---|
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P |
| Rake | Positive |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 3/32" |
| Cutting Speed | 370 SFPM to 570 SFPM |
| Dia. Of Inscribed Circle | 1/4" |
| Feed Rate | 0.005" to 0.008" |
| Insert Thickness | 0.094" |
| Major Clearance Angle | 7° |
| No. Of Cutting Edges | 2 |
| Radius | 0.016" |
Product Details
Turning Insert
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | DE |
|---|---|
| weight | 0.009000 |
