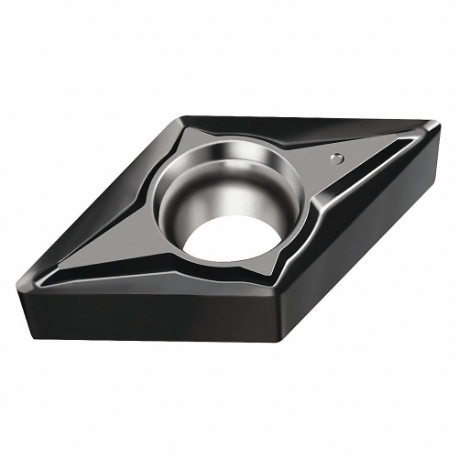

WALTER TOOLS DCGT070202-FN2 WNN10 6955650 Diamond Turning Insert, Neutral, 3/32 Inch Thick, 0.0080 Inch Corner Radius

Item: CU9MGF
Model: DCGT070202-FN2 WNN10
26 In Stock

Ships within 2 days via

280 sfm to 450 sfm
0.002" to 0.005"
£39.37
5.00% off
£37.4/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ansi Code DCGT2(1.5)0.5-FN2 WNN10
Chip-breaker Code FN2
Clearance Angle 7°
Corner Radius 0.008"
Cutting Application Turning
Cutting Depth 0.2 mm to 2 mm
Cutting Direction Neutral
Cutting Edge Length 7.75 mm
Finish Titanium Aluminum Nitride Coat
Included Angle 55°
Inscribed Circle 1/4"
Insert Code DCGT21.5.5
Insert Holding Angle 40° to 60.0°
Insert Style DCGT
Material Carbide
Number Of Cutting Edges 2
Primary Material Application Aluminum, Brass, Bronze, Copper, Magnesium
Rake Positive
Shape Rhombic
System Of Measurement Imperial
Thickness 0.094"
Cutting Speed 280 SFPM to 450 SFPM
Depth Of Cut 0.006" to 0.079"
Dia. Of Inscribed Circle 1/4"
Feed Rate 0.002" to 0.005"
Insert Thickness 0.094"
Major Clearance Angle 7°
No. Of Cutting Edges 2
Radius 0.008"

Product Details

Turning Insert

Shipping Information

height 2.54
length 2.54
width 2.54
country of origin DE
weight 0.009000
