VESTIL EPFC-25-AA Adjustable Electric Powered Floor Crane, 2500 Lb. Capacity | AG7RPM

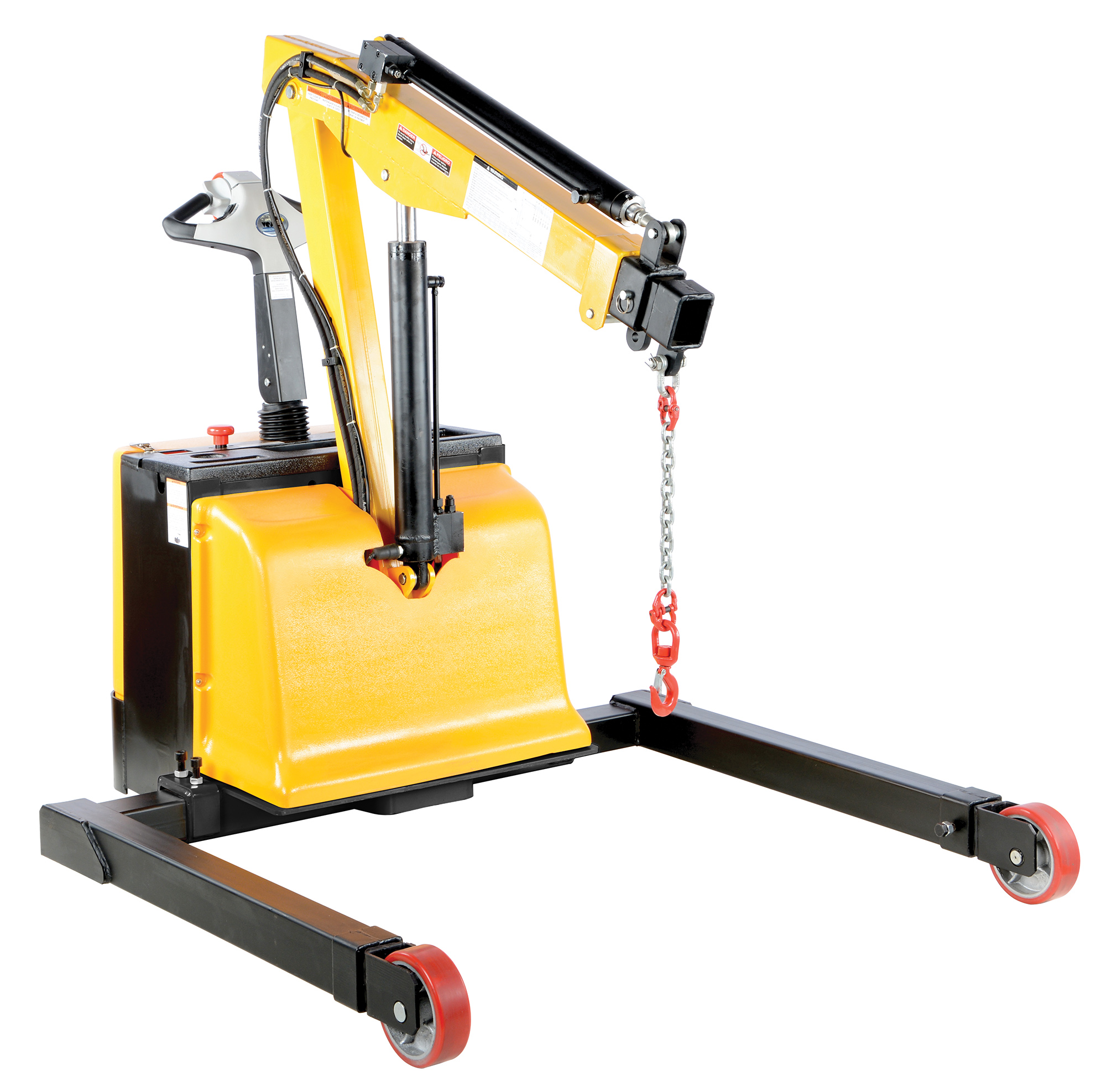

VESTIL EPFC-25-AA Adjustable Electric Powered Floor Crane, 2500 Lb. Capacity

Item: AG7RPM Model: EPFC-25-AA
See variants (2)
In Stock

Get it by May 3, Friday

£13,981.02 /unit (Inc. VAT)
Trade Prices Available
ADD TO CART
REQUEST A QUOTE

Payment Methods

Delivery Partners

How NET30 Works

Step 1 Add the items into your cart or submit a Purchase order

Step 2 Checkout, select NET30 payment (provide company registration and VAT number)

Step 3 Delivery via TNT or Royal Mail and receive invoice for payment in 30-days

Step 4 Make payment via BACS to our factoring partner,

Product Specifications:

ItemElectric Floor Crane
Batteries IncludedYes
Battery Charger Current12A
Battery Type12V
Capacity600 lbs.
Capacity Battery Extended1300 lbs.
Capacity Manually Extended600 lbs.
Caster MaterialPoly on Steel
Charger24 V
ColorYellow
Cord Voltage115V AC
Depth79.125"
Front Caster Dia.6"
Front Caster Width2"
Front Wheel Dia.6"
Front Wheel Width2"
Height67"
Hole TypeManual Extension
Leg Width43 3/4" to 58 11/16"
Length80"
Lift Range44 1/4" to 97"
Lift Speed0.5 sec. (With Load), 0.7 sec. (Without Load)
Lift Speed Loaded0.5 sec.
Lift Speed Unloaded0.7 sec.
Load Capacity2500 lbs.
MaterialSteel
Max. Boom Height at Full Extension110"
Max. Boom Length103.125"
Max. Height Crane Extended110"
Max. Length Legs Extended103 1/8"
Measuring UnitsEACH
Min. Service Per Charge8 hrs.
Motor Voltage24V DC
Number of Batteries2
Number of Casters5
Number of Holes3
Number of Mounting Holes3
PortableYes
Power SourceBattery Operated
Rear Caster Dia.3"
Rear Caster Width1.375"
Rear Wheel Dia.3"
Rear Wheel Width1.38"
Retracted Capacity2500 lbs.
Space Between Holes8"
UPC691215107204
Voltage24V DC
Width43.75"

Shipping Info:

Ship weight (kg) 494.1
Ship height (cm)160.02
Ship length (cm)203.2
Ship width (cm)76.2
HS code8427900000
Country of OriginCN

Working Mechanism:

  • Vestil EPFC-25-AA adjustable electric powered floor crane operates through a 24VDC drive and lift motor, controlled by an ergonomic handle with a throttle for speed adjustment.
  • In emergencies, it has a unique safety feature that instantly changes the crane's direction. The crane includes an electromagnetic disc brake that activates when the operator releases the handle, ensuring safe stops.

Frequently Asked Questions:

Q. Are there any maintenance requirements for the crane's battery system?

A. Regular maintenance, such as checking and topping up battery fluid levels and ensuring proper charging, is essential for the longevity and performance of the lead acid deep cycle batteries. The integral battery charger simplifies the charging process.

Q. How does the battery level gauge work?

A. The battery level gauge displays the charge status of the crane's batteries. It's a critical feature to monitor battery health and ensure the crane doesn't run out of power during operation, preventing unexpected downtime.

Q. What are the advantages of using an electric-powered crane over manual-powered crane?

A. Electric-powered cranes reduce the physical strain on operators and improve productivity. They are especially useful when dealing with heavy or awkward loads, promoting workplace safety and efficiency.

Documentation:

Datasheet

Product Variants

ProductModelMax. Boom Height at Full ExtensionBattery TypeCapacityMax. Boom LengthPower SourceRear Caster WidthWidthDepthPrice
VESTIL EPFC-25 Electric Powered Floor Crane, 2500 Lb. Capacity | AG7RPL
 EPFC-25110"12V600 lbs.103.13"Battery Operated1.38"30"79.5"£13,228.56
RFQ
VESTIL EPFC-CB-15 Counter Balance Floor Crane, Electric Powered | CE3DBL
 EPFC-CB-15105"24V/ 12A1500 lbs.97"Electric Cordless1.38"33.88"-£16,780.18
RFQ
