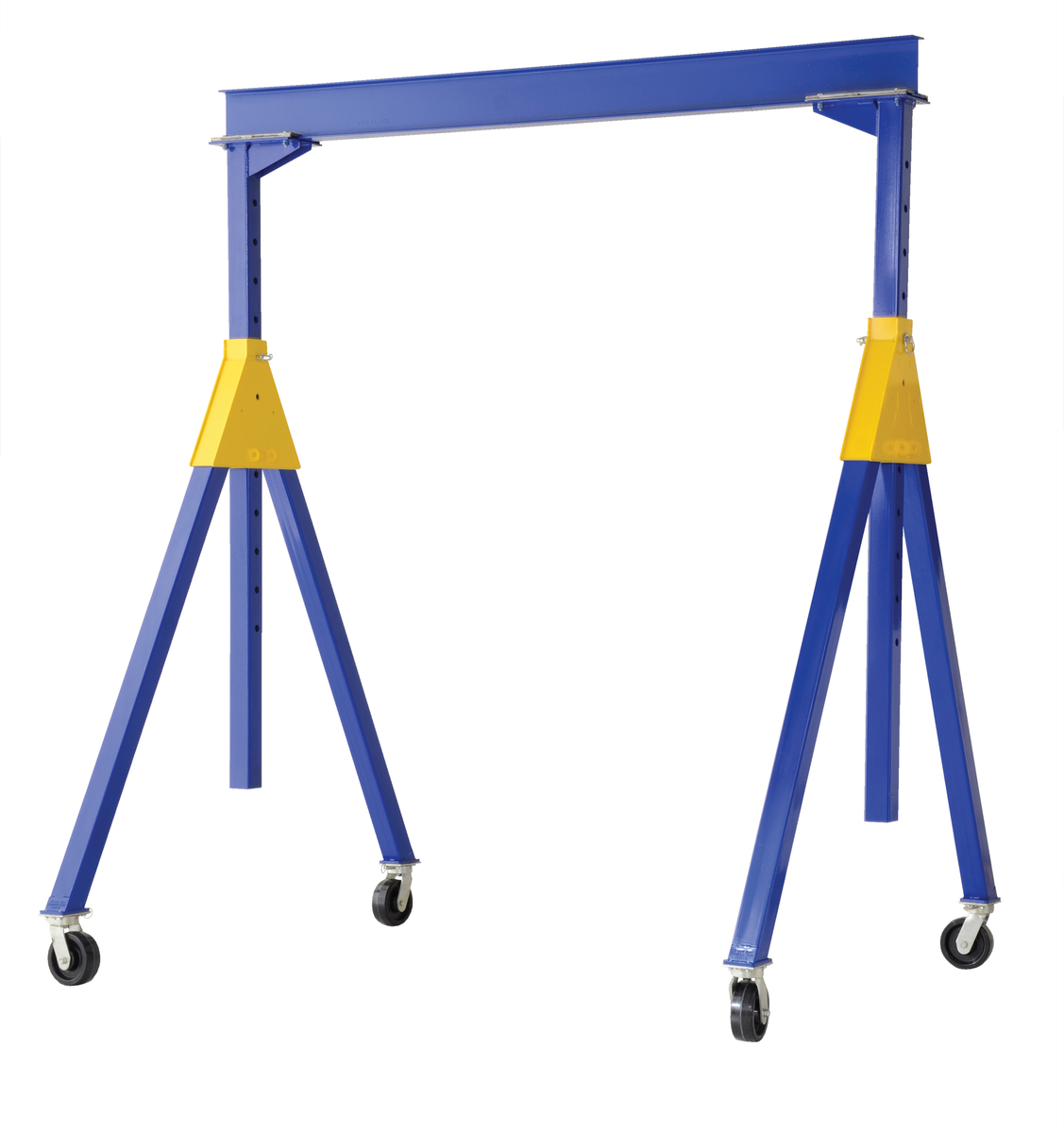

VESTIL AHSN-6-20-14 Steel Knock-Down Adjustable Height Gantry Crane with Phenolic Caster, 20 x 14 ft, 6000 lb Capacity, Blue
Item: AG7LKN
Model: AHSN-6-20-14
In Stock
Get it by Wednesday, Apr 15
6000 lbs.
239.75"
181.25"
£5000.69/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
- Specifications
- Product Details
- Shipping Information
- Uses
- Working Mechanism
- Features
- Compatible Accessories
- Standards and Approvals
- Installation
- FAQ′s
- See Variants
Specifications
| Adjustable Height | Yes |
|---|---|
| Assembled Depth | 239 3/4" |
| Assembled Height | 181 1/4" |
| Assembled Width | 88" |
| Assembly | Assembly Required |
| Base Width | 88" |
| Beam Height | 12.31" |
| Capacity | 6000 lbs. |
| Caster Dia. | 8" |
| Caster Lock | Yes |
| Caster Material | Phenolic |
| Caster Width | 3" |
| Color | Blue |
| Color Family | Blue |
| Features | Heavy Duty Welded Steel Construction For Long Lasting Use |
| Flange Width | 6 1/2" |
|---|---|
| Height | 181 1/4" |
| I Beam Height | 103" to 169" |
| I Beam Length | 240" |
| Length | 239 3/4" |
| Material | Steel |
| Max. Clearance | 169" |
| Min. Clearance | 103" |
| Number Of Casters | 4 |
| Style | Knock Down |
| Under I Beam Usable Height | 103" to 169" |
| Usable Beam Length | 209 3/4" |
| Usable Travel Distance | 209 3/4" |
| Width | 88" |
Product Details
Portable Gantry Crane
Shipping Information
| height | 45.72 |
|---|---|
| length | 2.54 |
| width | 203.2 |
| hs code | 8426190000 |
|---|---|
| country of origin | US |
| weight | 405.450000 |
Uses
Working Mechanism
Features
Compatible Accessories
Standards and Approvals
Installation
FAQ′s
Related Products
| Style | Model | Height | Beam Height | Caster Material | I Beam Length | Usable Beam Length | Min. Clearance | Under I Beam Usable Height | Flange Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | AHSN-10-15-10 | 135.062" | 12.19" | Ductile Steel | 180" | 149 3/4" | 79" | 79" to 121" | 4" | 5,834.94 | |
| B | AHSN-2-10-12 | 149 7/8" | 6" | Glass Filled Nylon | 120" | 89 3/4" | 90" | 90" to 144" | 4" | 2,690.09 | |
| C | AHSN-2-10-14 | 173.437" | 6" | Glass Filled Nylon | 120" | 89 3/4" | 102" | 102" to 168" | 4" | 2,970.05 | |
| D | AHSN-2-10-16 | 197.437" | 6" | Glass Filled Nylon | 120" | 89 3/4" | 126" | 126" to 192" | 4" | 3,582.55 | |
| E | AHSN-2-15-10 | 126 3/8" | 6" | Glass Filled Nylon | 180" | 149 3/4" | 78" | 78" to 120" | 4" | 2,572.93 | |
| F | AHSN-2-15-12 | 149 7/8" | 6" | Glass Filled Nylon | 180" | 149 3/4" | 90" | 90" to 144" | 4" | 2,959.03 | |
| G | AHSN-2-15-14 | 173.437" | 6" | Glass Filled Nylon | 180" | 149 3/4" | 102" | 102" to 168" | 4" | 3,163.53 |
