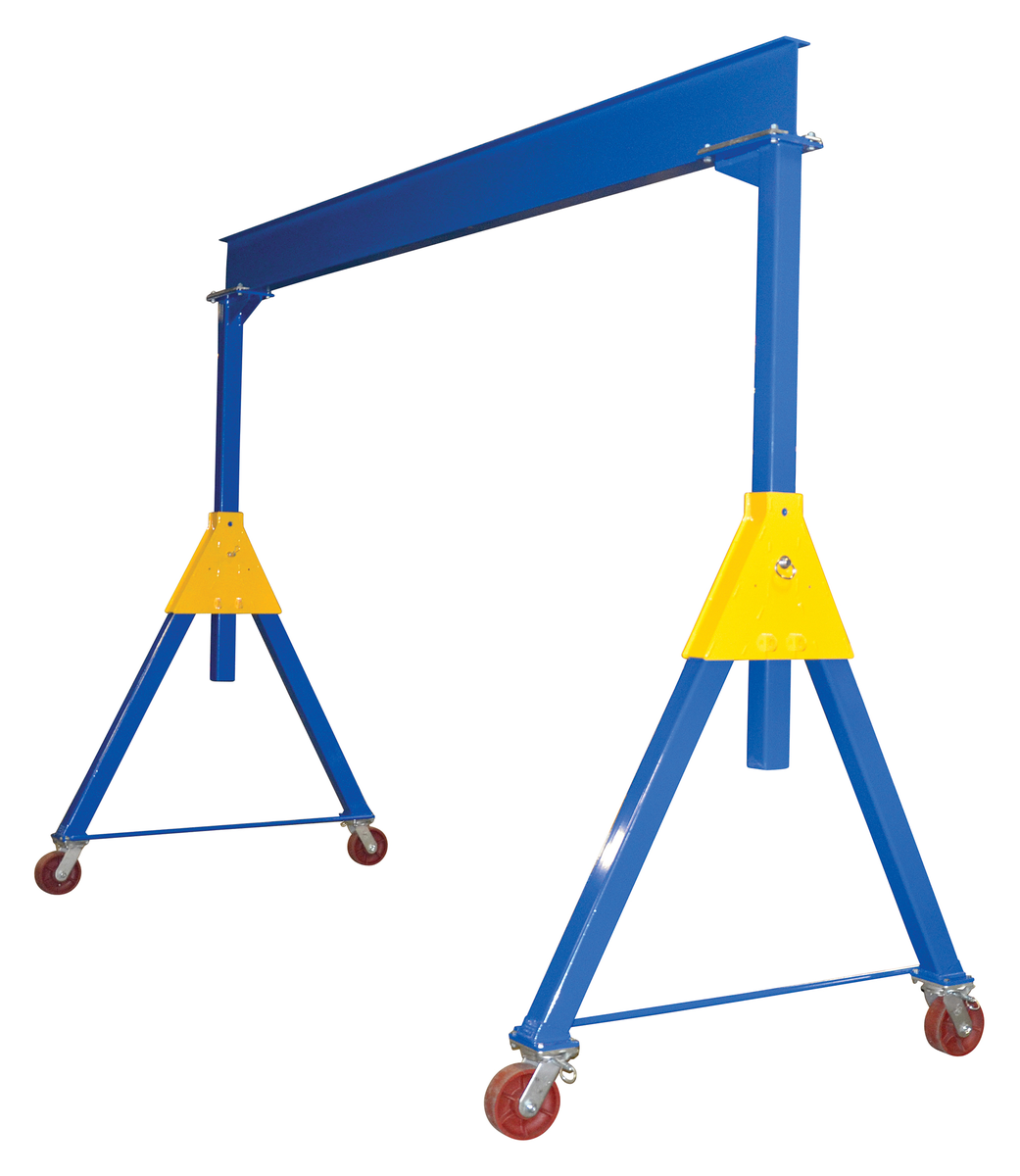

VESTIL AHSN-10-15-10 Steel Knock-Down Adj Height Gantry Crane with Ductile Steel Caster, 15 x 10 ft, 10000 lb Capacity, Blue
Item: AG7LJA
Model: AHSN-10-15-10
In Stock
Get it by Wednesday, Apr 15
£7001.93/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
- Specifications
- Product Details
- Shipping Information
- Uses
- Working Mechanism
- Features
- Compatible Accessories
- Standards and Approvals
- Installation
- FAQ′s
- See Variants
Specifications
| Adjustable Height | Yes |
|---|---|
| Assembled Depth | 179 3/4" |
| Assembled Height | 134" |
| Assembled Width | 64 5/16" |
| Assembly | Assembly Required |
| Base Length | 179 3/4" |
| Base Width | 64 5/16" , 64.312" |
| Beam Height | 12 3/16" , 12.19" |
| Beam Length | 180" |
| Capacity | 10000 lbs. |
| Caster Dia. | 8" |
| Caster Lock | Yes |
| Caster Material | Ductile Steel |
| Caster Width | 3" |
| Caster/wheel Locking | Yes |
| Color | Blue |
| Color Family | Blue |
| Features | Heavy Duty Welded Steel Construction For Long Lasting Use |
| Flange Width | 4" |
| Frame Material | Steel |
| Height | 135.062" |
|---|---|
| I Beam Height | 78" to 120" |
| I Beam Length | 180" |
| Increment Height Adjustment | 6" |
| Length | 179 3/4" |
| Material | Steel |
| Max. Clearance | 121" |
| Max. Overall Height | 134" |
| Min. Clearance | 79" |
| Minimum Clearance | 79" |
| No. Of Casters/wheels | 4 |
| Number Of Casters | 4 |
| Style | Knock Down |
| Under I Beam Usable Height | 79" to 121" |
| Usable Beam Length | 149 3/4" |
| Usable Travel Distance | 149 3/4" |
| Wheel Dia. | 8" |
| Wheel Material | Ductile Steel |
| Wheel Width | 3" |
| Width | 64.312" |
Product Details
Portable Gantry Crane
Shipping Information
| height | 50.8 |
|---|---|
| length | 195.58 |
| width | 165.1 |
| hs code | 8426190000 |
|---|---|
| country of origin | US |
| weight | 341.550000 |
Uses
Working Mechanism
Features
Compatible Accessories
Standards and Approvals
Installation
FAQ′s
Related Products
| Style | Model | Height | Beam Height | Caster Material | I Beam Length | Usable Beam Length | Min. Clearance | Under I Beam Usable Height | Flange Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | AHSN-2-10-12 | 149 7/8" | 6" | Glass Filled Nylon | 120" | 89 3/4" | 90" | 90" to 144" | 4" | 2,690.09 | |
| B | AHSN-2-10-14 | 173.437" | 6" | Glass Filled Nylon | 120" | 89 3/4" | 102" | 102" to 168" | 4" | 2,970.05 | |
| C | AHSN-2-10-16 | 197.437" | 6" | Glass Filled Nylon | 120" | 89 3/4" | 126" | 126" to 192" | 4" | 3,582.55 | |
| D | AHSN-2-15-10 | 126 3/8" | 6" | Glass Filled Nylon | 180" | 149 3/4" | 78" | 78" to 120" | 4" | 2,572.93 | |
| E | AHSN-2-15-12 | 149 7/8" | 6" | Glass Filled Nylon | 180" | 149 3/4" | 90" | 90" to 144" | 4" | 2,959.03 | |
| F | AHSN-2-15-14 | 173.437" | 6" | Glass Filled Nylon | 180" | 149 3/4" | 102" | 102" to 168" | 4" | 3,163.53 | |
| G | AHSN-2-15-16 | 197.437" | 6" | Glass Filled Nylon | 180" | 149 3/4" | 126" | 126" to 192" | - | 3,773.11 |
